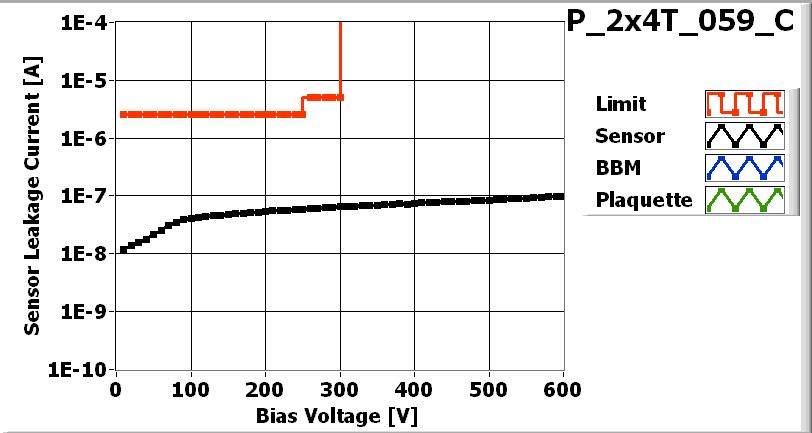

![[IMAGE] of](P_2x4T_059_C_IV.jpg)
| IV_XML-File |
| Maximum Voltage 600 V |

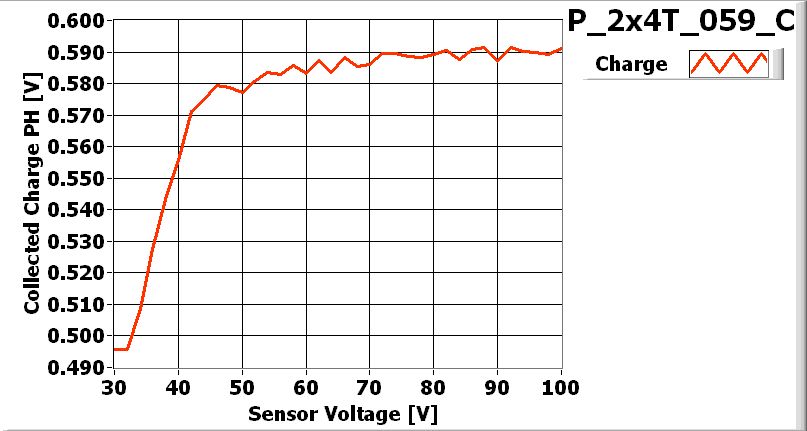

![[IMAGE] of](P_2x4T_059_C_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 46 V |
| Operational Voltage 86 V |
Parts committed by Bolla Gino on date CCYY-MM-DD
| Part | ID |
|---|---|
| BBM | BBM_059-2x4T |
| VHDI | 2x4_551 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | XF4K3JT | 51A |
| ROC1 | XF4K3JT | 51B |
| ROC2 | XF4K3JT | 52A |
| ROC3 | XF4K3JT | 52B |
| ROC4 | XF4K3JT | 56B |
| ROC5 | XF4K3JT | 56A |
| ROC6 | XF4K3JT | 54A |
| ROC7 | XF4K3JT | 53A |
Inspected by Arndt Kirk on date 9/6/2006
| LR_dev | 0.034 |
| LL_dev | 0.040 |
| FINAL COMMENT by Arndt Kirk | No assembly problems. No wirebond problem. |
PLAQUETTE made READY for testing on 9/6/2006 by Arndt Kirk
PLAQUETTE TESTED on 2006-6-29 by Stacy Kouba
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | ROC6 | ROC7 | |
| Ibias_DAC | 152 | 136 | 154 | 167 | 157 | 155 | 151 | 155 | |
| Vana | 130 | 127 | 138 | 144 | 124 | 138 | 135 | 126 | |
| Cal_Del | 82 | 89 | 92 | 91 | 91 | 84 | 81 | 87 | |
| Vthrs_Comp | 73 | 66 | 77 | 86 | 74 | 75 | 74 | 77 | |
| Unbumped | 0 | 0 | 4 | 1 | 1 | 1 | 1 | 0 | |
| Dead | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 0 | 4 | 1 | 1 | 1 | 1 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

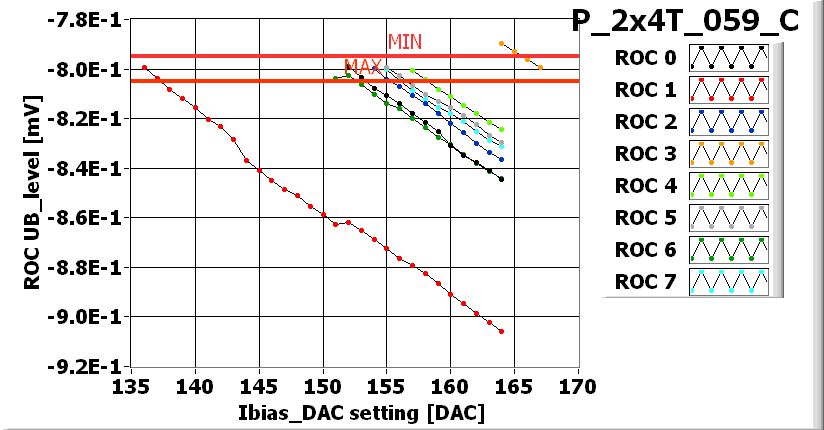

![[IMAGE] of](P_2x4T_059_C_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

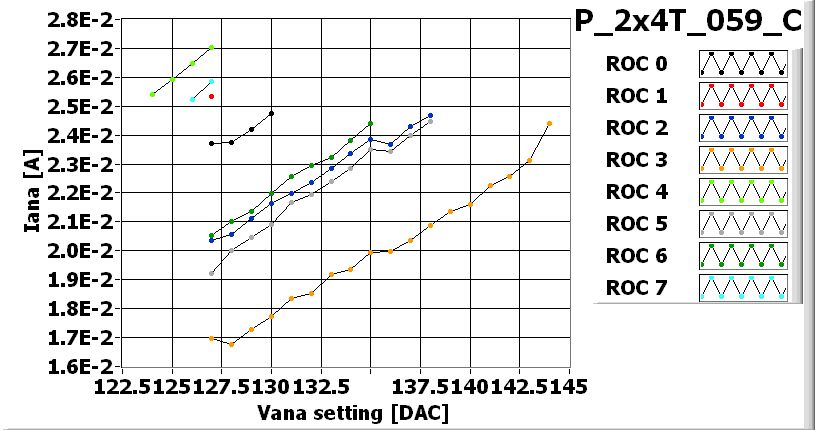

![[IMAGE] of](P_2x4T_059_C_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_2x4T_059_CDead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x4T_059_CNoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x4T_059_CUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x4T_059_Cno-bump-light.jpg) |
LIGHT_XML-File |
PLAQUETTE READY FOR SHIPPING
Shipped on date 2006-09-11
