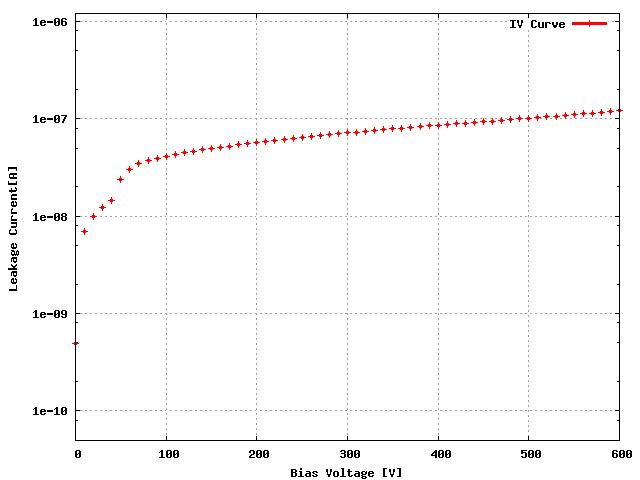

Sensor: S_2x4T_05, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC	ROC wafer	Label
ROC0	DULQEDT	47A
ROC1	DULQEDT	47C
ROC2	DULQEDT	47B
ROC3	DULQEDT	68D
ROC4	DULQEDT	47D
ROC5	DULQEDT	57B
ROC6	DULQEDT	68A
ROC7	DULQEDT	29C

Depletion Voltage is -42 and suggested operational voltage is -82

Ibias_DAC, Ibias_DAC Data	138	172	152	160	166	154	148	150
Vana, VanaData	130	155	144	143	150	153	139	141
CalDelData and plots	96	93	101	93	88	92	99	89
VthrCompData and plots	83	91	84	90	85	86	83	86
TestDdata ,TestD Plots	0	1	0	0	0	2	0	0
LightData ,Light Plots	0	1	0	0	0	2	0	0
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD

Noise MAP at VMAX

Efficiency MAP

EXTRA DACs for NOISE

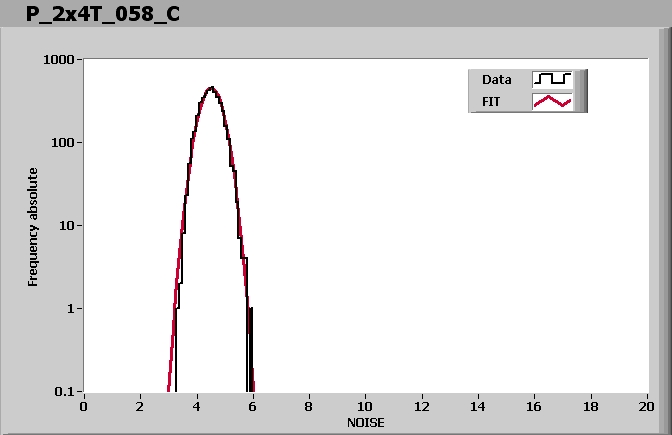

ROC0 NOISE			MEAN = 4.506769 SIGMA = 0.370670

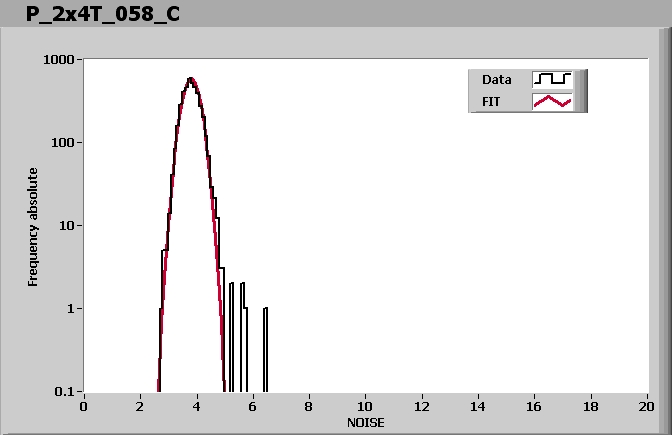

ROC1 NOISE			MEAN = 3.799027 SIGMA = 0.285408
ROC2 NOISE			MEAN = 4.347318 SIGMA = 0.350066
ROC3 NOISE			MEAN = 3.831512 SIGMA = 0.295703
ROC4 NOISE			MEAN = 3.554743 SIGMA = 0.284270
ROC5 NOISE			MEAN = 4.216554 SIGMA = 0.345050
ROC6 NOISE			MEAN = 4.127276 SIGMA = 0.340850
ROC7 NOISE			MEAN = 4.207411 SIGMA = 0.323792

Comment (if any):

End testing time: 12:12 PM
