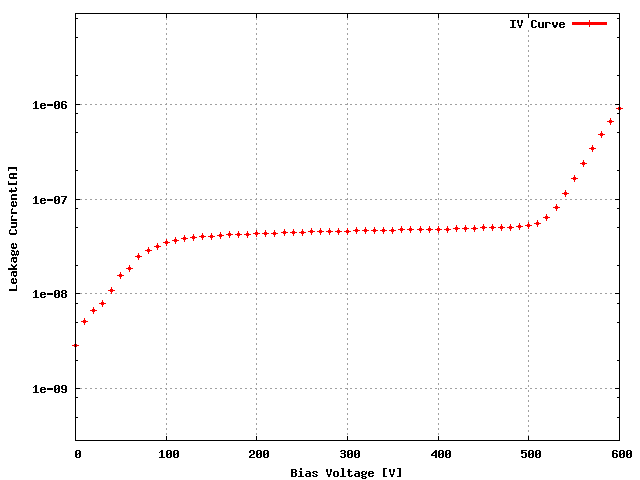

Sensor: S_2x4T_05, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC	ROC wafer	Label
ROC0	KZNG1JT	48A
ROC1	KZNG1JT	17A
ROC2	KZNG1JT	29C
ROC3	KZNG1JT	76D
ROC4	KZNG1JT	28C
ROC5	KZNG1JT	18D
ROC6	KZNG1JT	76A
ROC7	KZNG1JT	29A

Depletion Voltage is -42 and suggested operational voltage is -82

Ibias_DAC, Ibias_DAC Data	160	166	156	162	156	152	158	154
Vana, VanaData	128	139	140	131	146	130	140	129
CalDelData and plots	74	71	78	73	70	81	85	83
VthrCompData and plots	85	90	78	74	78	84	84	78
TestDdata ,TestD Plots	1	0	0	0	0	2	0	1
LightData ,Light Plots	1	0	1	0	1	2	0	0
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD

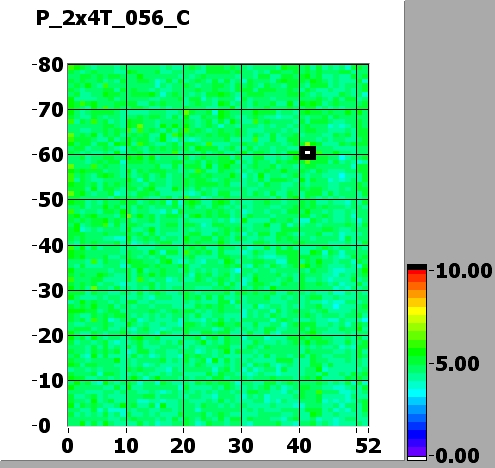

Noise MAP at VMAX

Efficiency MAP

EXTRA DACs for NOISE

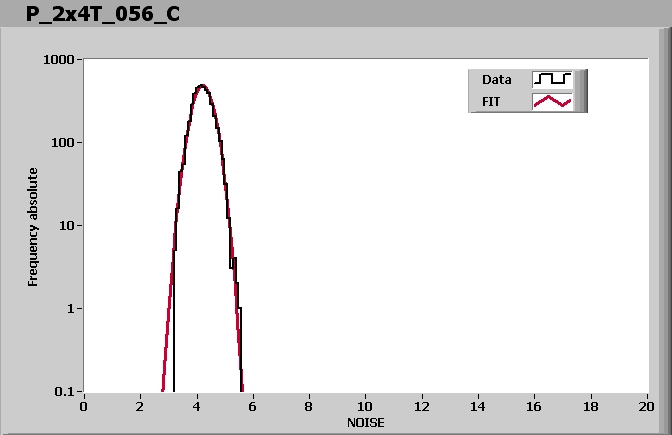

ROC0 NOISE			MEAN = 4.206708 SIGMA = 0.342814
ROC1 NOISE			MEAN = 4.224670 SIGMA = 0.354742
ROC2 NOISE			MEAN = 4.264945 SIGMA = 0.361586
ROC3 NOISE			MEAN = 4.211405 SIGMA = 0.339393

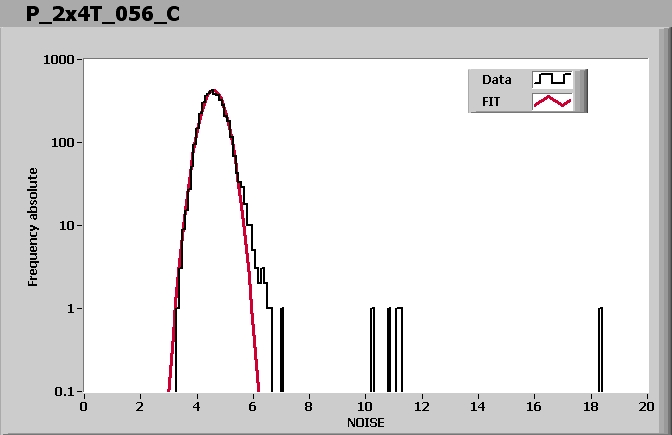

ROC4 NOISE			MEAN = 4.592370 SIGMA = 0.390902

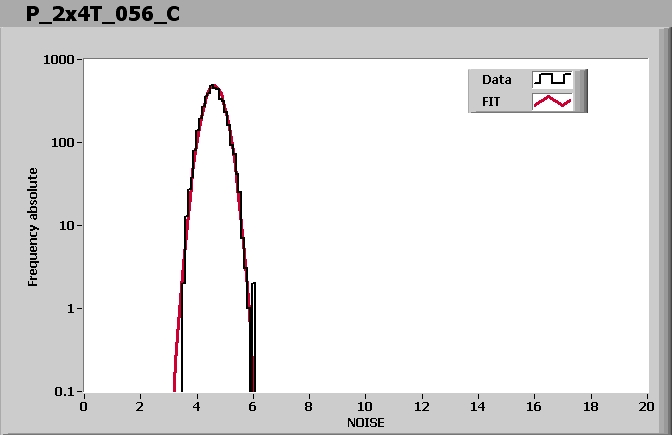

ROC5 NOISE			MEAN = 4.616837 SIGMA = 0.348715

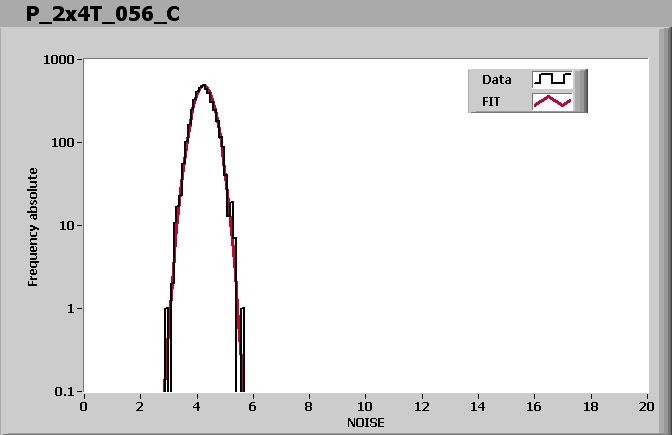

ROC6 NOISE			MEAN = 4.246957 SIGMA = 0.341750
ROC7 NOISE			MEAN = 4.644278 SIGMA = 0.359671

Comment (if any):

End testing time: 10:08 AM
