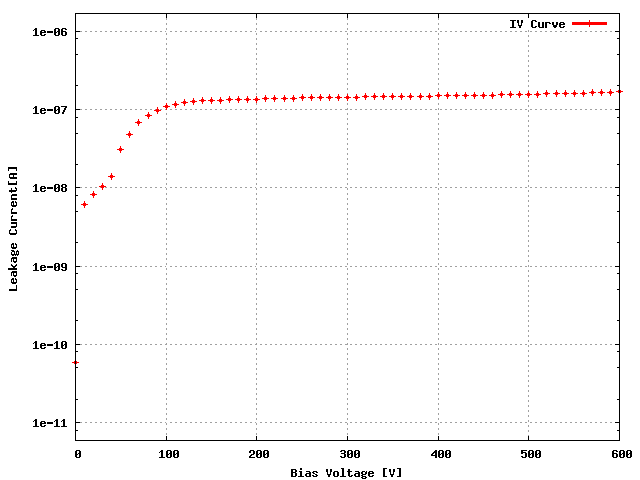

Sensor: S_2x4T_05, Data for leakage current measurement , and plot on overall it is a GOOD sensor
ROC | ROC wafer | Label |
---|---|---|
ROC0 | W52_DOLQC8T | 54C |
ROC1 | W52_DOLQC8T | 54B |
ROC2 | W52_DOLQC8T | 54A |
ROC3 | W52_DOLQC8T | 53B |
ROC4 | W52_DOLQC8T | 32A |
ROC5 | W52_DOLQC8T | 32B |
ROC6 | W52_DOLQC8T | 32D |
ROC7 | W52_DOLQC8T | 33B |
Ibias_DAC, Ibias_DAC Data | 180 | 148 | 154 | 160 | 150 | 138 | 158 | 130 |
Vana, VanaData | 146 | 142 | 130 | 151 | 158 | 140 | 150 | 132 |
CalDelData and plots | 84 | 91 | 71 | 77 | 83 | 79 | 91 | 87 |
VthrCompData and plots | 82 | 82 | 93 | 84 | 90 | 85 | 92 | 80 | Depletion Voltage is -40 and suggested operational voltage is -80
TestDdata ,TestD Plots | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 16 |
LightData ,Light Plots | 0 | 0 | 0 | 0 | 0 | 1 | 0 | 0 |
Pass/Fail TestD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD |
Pass/Fail LIGHT | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD |

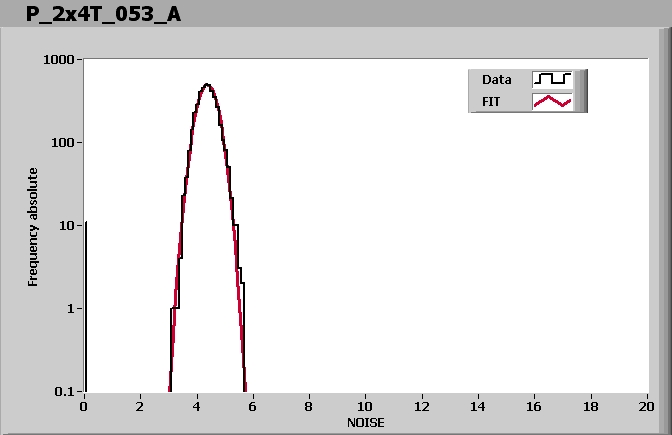

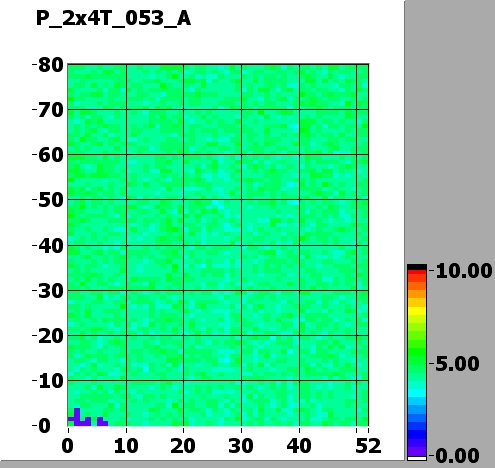

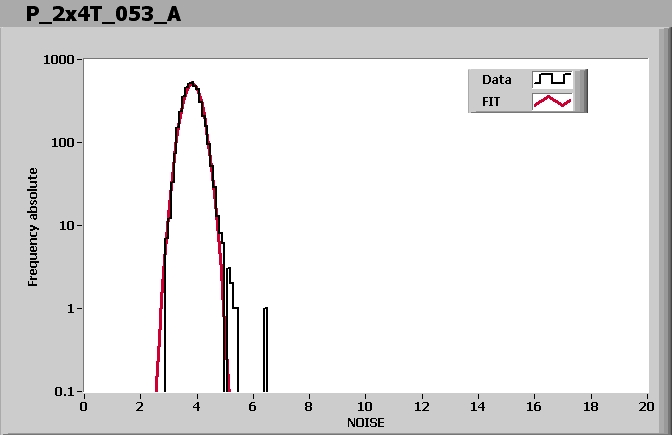

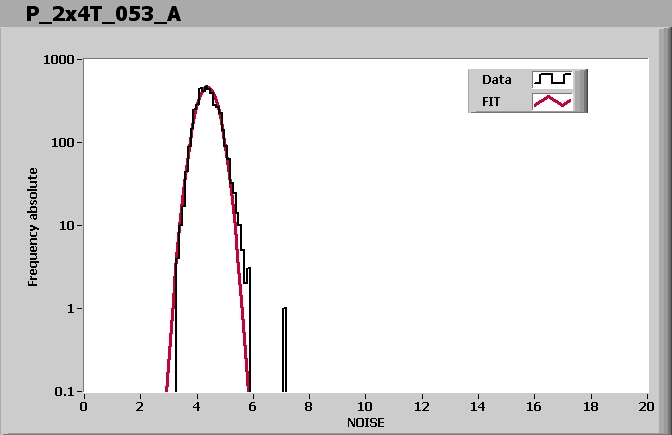

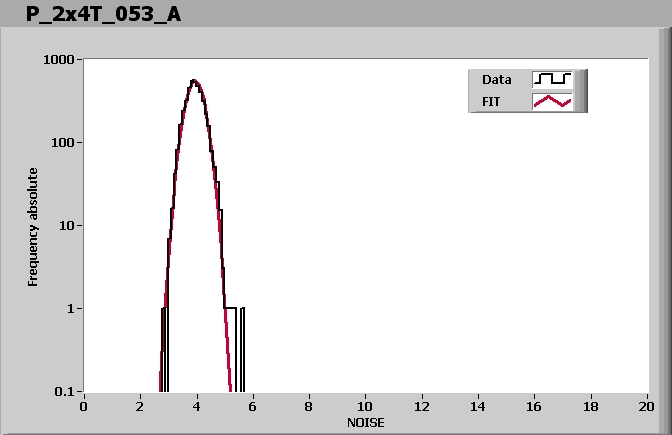

Noise MAP at VMAX
Efficiency MAP
EXTRA DACs for NOISE
VHldDe | 95 | 85 | 135 | 100 | 85 | 95 | 105 | 100 |
Vsf | 145 | 145 | 140 | 150 | 160 | 140 | 155 | 140 |
VoffsetOp | 110 | 105 | 110 | 115 | 120 | 105 | 115 | 80 |
VIbias_PH | 100 | 100 | 100 | 100 | 105 | 100 | 95 | 100 |
Comment (if any):
This Device have been tested 0Times prior to this one and here are the links to the previous tests:End testing time: 5:12 PM
