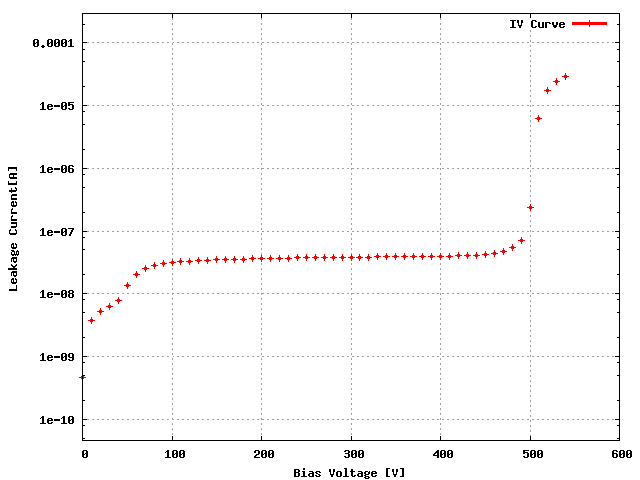

Sensor: S_2x4T_05, Data for leakage current measurement , and plot on overall it is a GOOD sensor
ROC | ROC wafer | Label |
---|---|---|
ROC0 | XG4KFCT | 37D |
ROC1 | XG4KFCT | 37C |
ROC2 | XG4KFCT | 36D |
ROC3 | XG4KFCT | 36C |
ROC4 | XG4KFCT | 33D |
ROC5 | XG4KFCT | 34C |
ROC6 | XG4KFCT | 34D |
ROC7 | XG4KFCT | 35C |
Ibias_DAC, Ibias_DAC Data | 142 | 140 | 140 | 126 | 124 | 130 | 126 | 138 |
Vana, VanaData | 138 | 134 | 145 | 121 | 122 | 137 | 127 | 140 |
CalDelData and plots | 74 | 73 | 87 | 97 | 85 | 87 | 88 | 83 |
VthrCompData and plots | 71 | 76 | 84 | 80 | 78 | 70 | 76 | 80 | Depletion Voltage is -46 and suggested operational voltage is -86
TestDdata ,TestD Plots | 0 | 0 | 1 | 0 | 0 | 0 | 0 | 1 |
LightData ,Light Plots | 0 | 0 | 0 | 0 | 0 | 6 | 0 | 1 |
Pass/Fail TestD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD |
Pass/Fail LIGHT | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD |
Noise MAP
Efficiency MAP

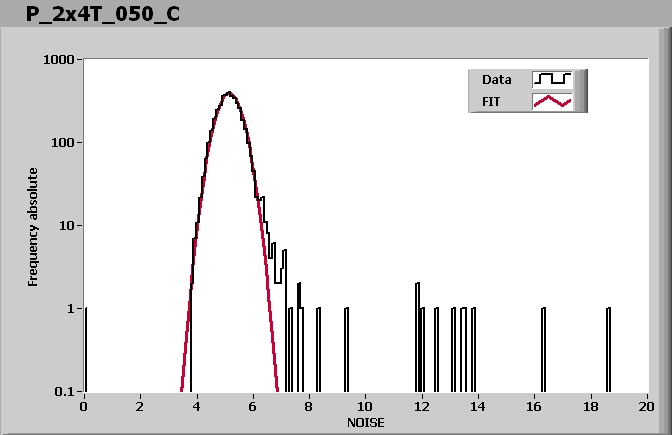

EXTRA DACs for NOISE
VHldDe | 95 | 125 | 90 | 125 | 130 | 105 | 150 | 105 |
Vsf | 140 | 140 | 145 | 135 | 135 | 145 | 140 | 140 |
VoffsetOp | 70 | 85 | 80 | 70 | 75 | 75 | 60 | 80 |
VIbias_PH | 100 | 100 | 100 | 105 | 100 | 95 | 95 | 100 |
Comment (if any): Mostly good, but ROC 5 had six bad pixels.
This Device have been tested 0Times prior to this one and here are the links to the previous tests:End testing time: 12:32 PM
