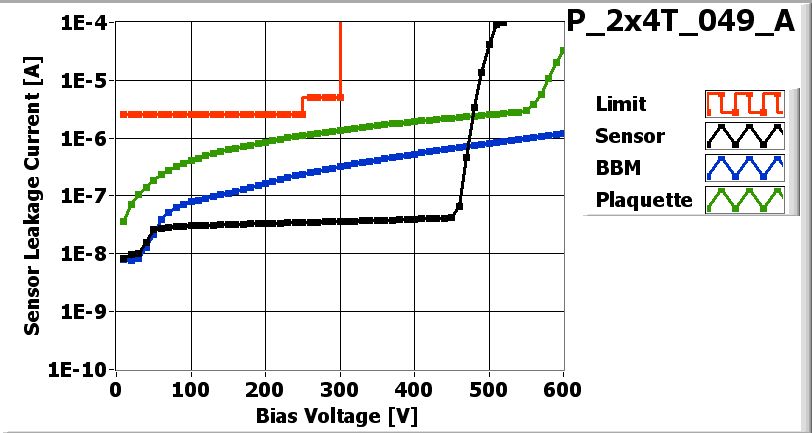

![[IMAGE] of](P_2x4T_049_A_IV.jpg)
| IV_XML-File |
| Maximum Voltage 600 V |

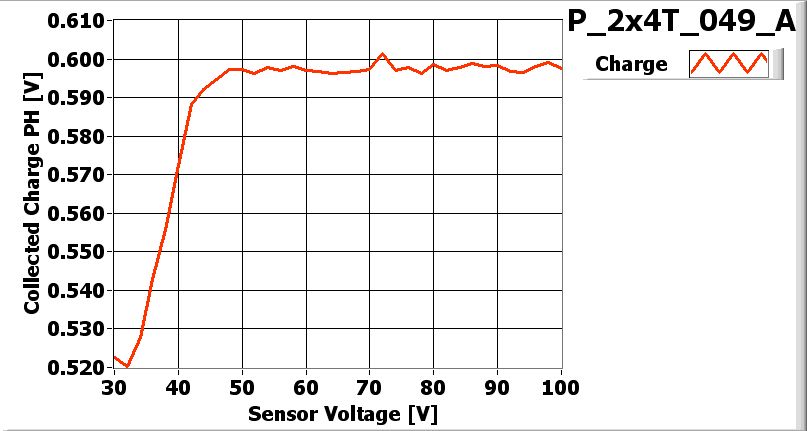

![[IMAGE] of](P_2x4T_049_A_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 48 V |
| Operational Voltage 88 V |
Parts committed by Bolla Gino on date 6/14/2007
| Part | ID |
|---|---|
| BBM | BBM_049-2x4T |
| VHDI | 2x4_415 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W48_DVLQDVT | 54A |
| ROC1 | W48_DVLQDVT | 53D |
| ROC2 | W48_DVLQDVT | 53B |
| ROC3 | W48_DVLQDVT | 66C |
| ROC4 | W48_DVLQDVT | 30D |
| ROC5 | W48_DVLQDVT | 31B |
| ROC6 | W48_DVLQDVT | 31C |
| ROC7 | W48_DVLQDVT | 32A |
Inspected by Lockwood Gale on date 6/21/2007
| LR_dev | 0.028 |
| LL_dev | 0.045 |
PLAQUETTE GLUED with FULL PRESSURE
| FINAL COMMENT by Lockwood Gale | No assembly problems. ROC 6, Ch 34,35, No wirebonding problems. |
PLAQUETTE made READY for ENCAPSULATION on 6/21/2007 by Lockwood Gale
PLAQUETTE encapsulated on 6/21/2007 by Ozhan Koybasi
PLAQUETTE made READY for testing on 6/21/2007 by Ozhan Koybasi
P_2x4T_049_Aon 6/22/2007 9:25 AM
P_2x4T_049_Aon 6/22/2007 9:25 AM
PLAQUETTE TESTED on 2007-06-22 by Emily Grace
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | ROC6 | ROC7 | |
| Ibias_DAC | 162 | 156 | 160 | 158 | 160 | 146 | 142 | 148 | |
| Vana | 151 | 150 | 158 | 143 | 161 | 154 | 146 | 166 | |
| Cal_Del | 80 | 73 | 62 | 75 | 83 | 97 | 99 | 64 | |
| Vthrs_Comp | 93 | 88 | 91 | 91 | 91 | 85 | 81 | 87 | |
| Unbumped | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Dead | 1 | 2 | 0 | 1 | 1 | 0 | 0 | 1 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 1 | 2 | 0 | 1 | 1 | 0 | 0 | 1 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

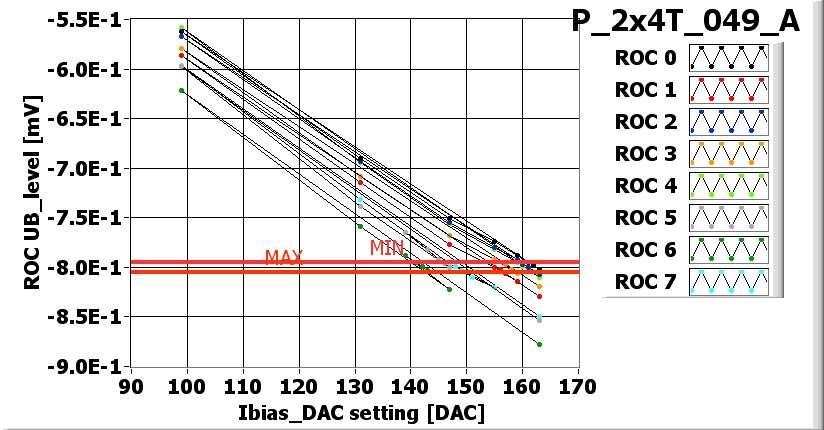

![[IMAGE] of](P_2x4T_049_A_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

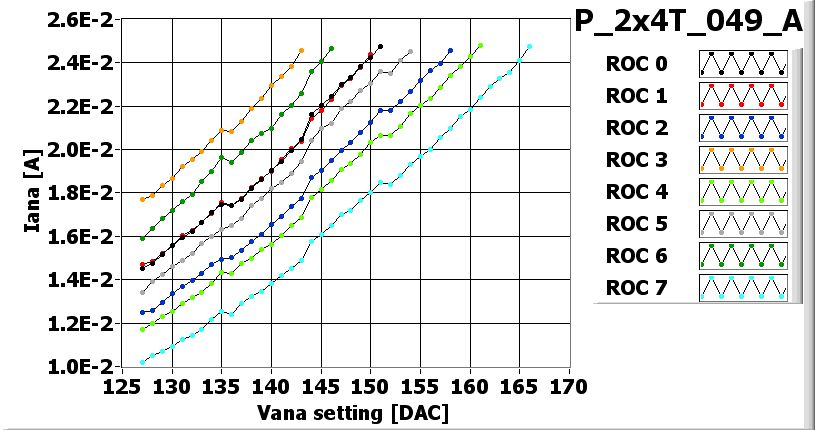

![[IMAGE] of](P_2x4T_049_A_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_2x4T_049_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x4T_049_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x4T_049_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x4T_049_Ano-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 95 | 100 | 100 | 110 | 90 | 95 | 95 | 95 |
| Vsf | 155 | 145 | 155 | 140 | 155 | 150 | 145 | 165 |
| VoffsetOp | 115 | 105 | 125 | 120 | 100 | 85 | 90 | 115 |
| VIbias_PH | 100 | 95 | 100 | 100 | 95 | 105 | 100 | 105 |
Noise MAP at VMAX
![[IMAGE] of](P_2x4T_049_A-580-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_2x4T_049_A-580-efficiency.jpg)
Noise MAP at -200 V
![[IMAGE] of](P_2x4T_049_A-200-noise.jpg)

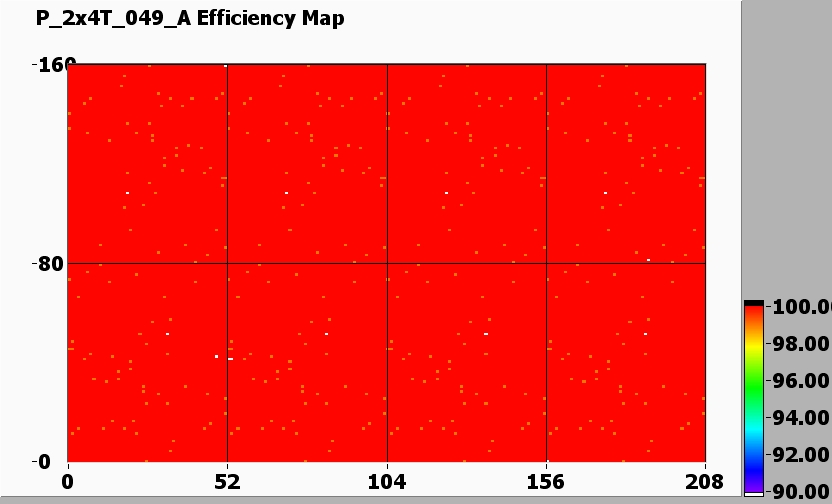

Efficiency MAP
![[IMAGE] of](P_2x4T_049_A-200-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
