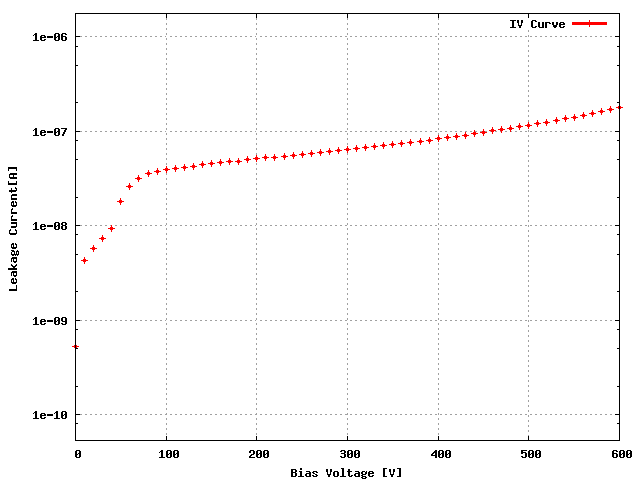

Sensor: S_2x4T_04, Data for leakage current measurement , and plot on overall it is a GOOD sensor
ROC | ROC wafer | Label |
---|---|---|
ROC0 | XG4KFCT | 41D |
ROC1 | XG4KFCT | 41C |
ROC2 | XG4KFCT | 40C |
ROC3 | XG4KFCT | 29D |
ROC4 | XG4KFCT | 26D |
ROC5 | XG4KFCT | 27C |
ROC6 | XG4KFCT | 27D |
ROC7 | XG4KFCT | 28D |
Ibias_DAC, Ibias_DAC Data | 140 | 124 | 142 | 134 | 138 | 140 | 114 | 142 |
Vana, VanaData | 142 | 124 | 115 | 134 | 133 | 127 | 111 | 141 |
CalDelData and plots | 83 | 92 | 71 | 79 | 75 | 73 | 108 | 88 |
VthrCompData and plots | 78 | 80 | 86 | 69 | 73 | 74 | 56 | 76 | Depletion Voltage is -48 and suggested operational voltage is -88
TestDdata ,TestD Plots | 1 | 4 | 0 | 0 | 0 | 0 | 2 | 1 |
LightData ,Light Plots | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
Pass/Fail TestD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD |
Pass/Fail LIGHT | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD |

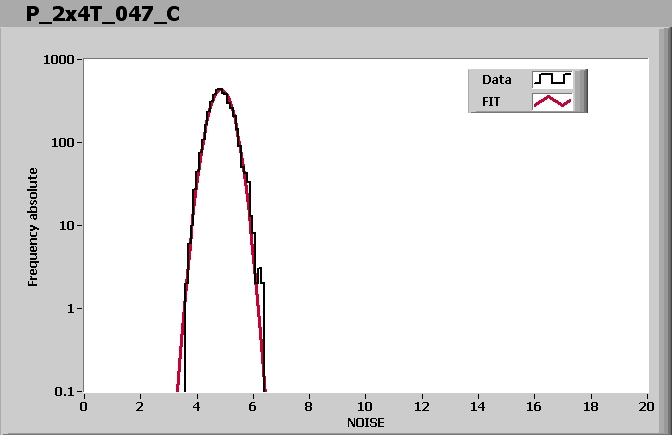

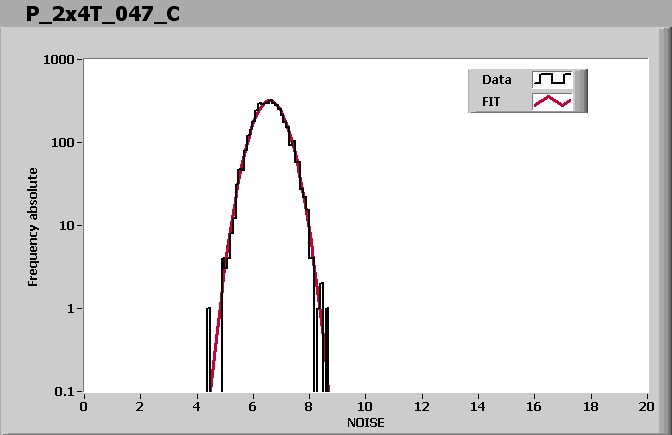

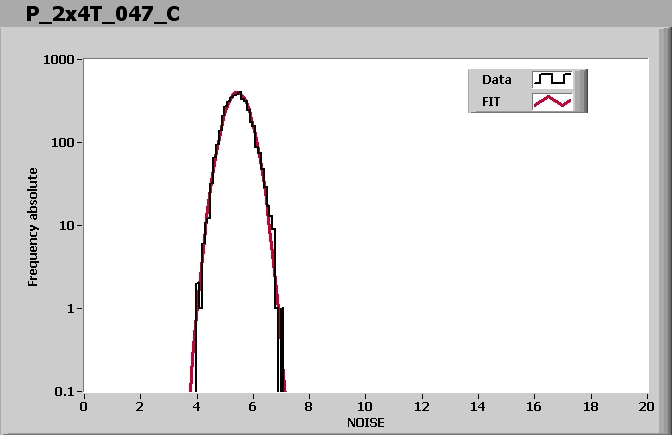

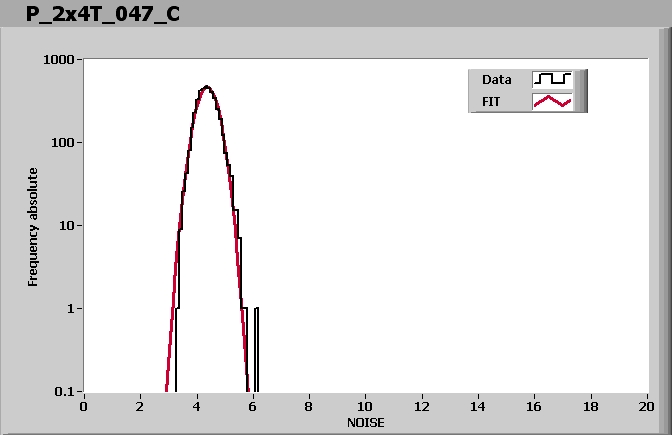

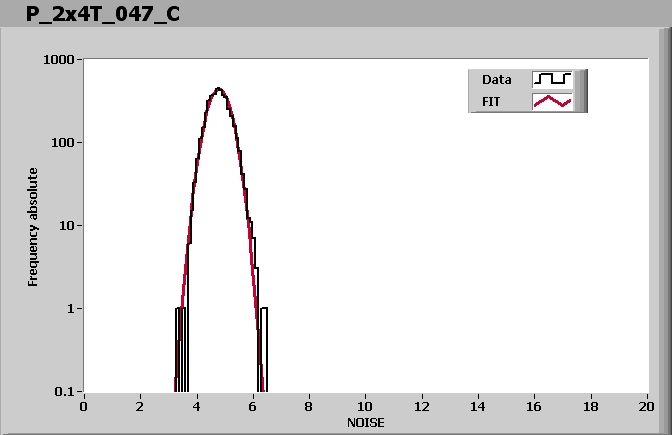

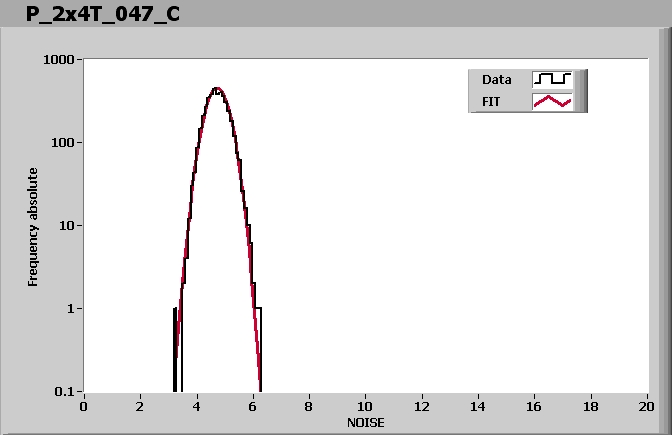

Noise MAP
Efficiency MAP
EXTRA DACs for NOISE
VHldDe | 110 | 140 | 155 | 120 | 130 | 145 | 150 | 85 |
Vsf | 135 | 140 | 135 | 140 | 135 | 135 | 130 | 140 |
VoffsetOp | 95 | 65 | 75 | 80 | 75 | 70 | 45 | 100 |
VIbias_PH | 100 | 105 | 105 | 100 | 95 | 100 | 110 | 100 |
Comment (if any): Okay.
This Device have been tested 0Times prior to this one and here are the links to the previous tests:End testing time: 12:38 PM
