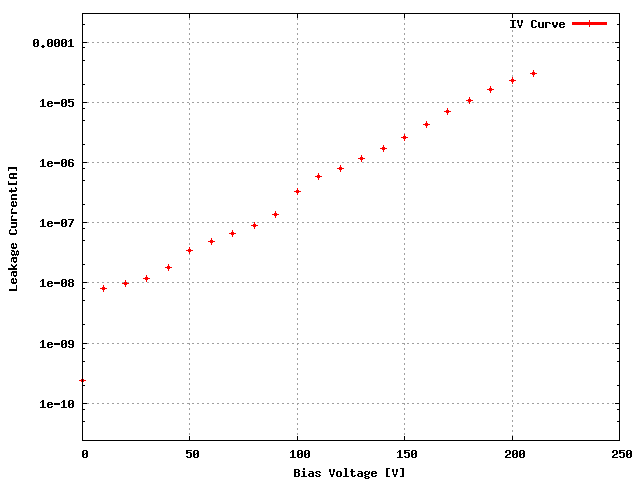

Sensor: S_2x4T_04, Data for leakage current measurement , and plot on overall it is a
ROC | ROC wafer | Label |
---|---|---|
ROC0 | W36_XD4K3LT | 03B |
ROC1 | W36_XD4K3LT | 18C |
ROC2 | W36_XD4K3LT | 18B |
ROC3 | W36_XD4K3LT | 18A |
ROC4 | W49_D1LQGST | 04B |
ROC5 | W49_D1LQGST | 04C |
ROC6 | W49_D1LQGST | 04D |
ROC7 | W49_D1LQGST | 05B |
Ibias_DAC, Ibias_DAC Data | 148 | 150 | 160 | 154 | 148 | 152 | 162 | 164 |
Vana, VanaData | 144 | 126 | 138 | 127 | 129 | 125 | 145 | 129 |
CalDelData and plots | 93 | 102 | 86 | 86 | 98 | 100 | 81 | 89 |
VthrCompData and plots | 82 | 64 | 82 | 80 | 84 | 75 | 94 | 86 | Depletion Voltage is -44 and suggested operational voltage is -84
TestDdata ,TestD Plots | 0 | 0 | 0 | 1 | 0 | 0 | 0 | 1 |
LightData ,Light Plots | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1 |
Pass/Fail TestD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD |
Pass/Fail LIGHT | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD |

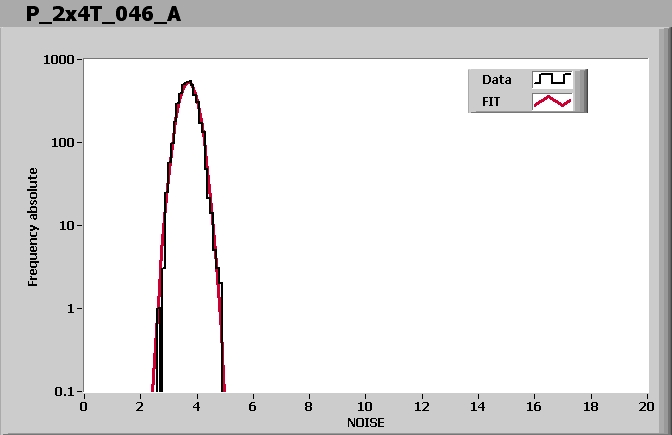

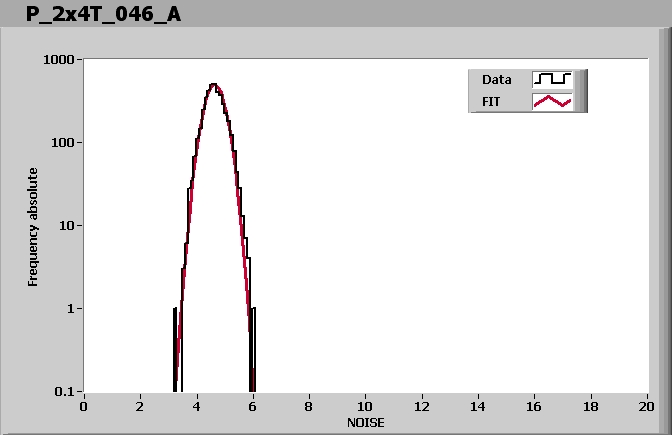

Noise MAP at VMAX
Efficiency MAP
EXTRA DACs for NOISE
VHldDe | 95 | 115 | 105 | 130 | 115 | 130 | 110 | 120 |
Vsf | 140 | 135 | 140 | 140 | 140 | 135 | 145 | 140 |
VoffsetOp | 110 | 80 | 100 | 85 | 80 | 90 | 100 | 105 |
VIbias_PH | 95 | 105 | 95 | 95 | 95 | 105 | 100 | 100 |
Comment (if any):
This Device have been tested 0Times prior to this one and here are the links to the previous tests:End testing time: 12:00 PM
