P_2x4T_043

P_2x4T_043_A

Parts committed by Bolla Gino on date 11/3/2006

Part	ID
BBM	BBM_043-2x4T
VHDI	2x4_303

ROC ROC wafer Label

ROC0 W18_XJ4KT3FT 51D

ROC1 W18_XJ4KT3FT 51B

ROC2 W18_XJ4KT3FT 51A

ROC3 W18_XJ4KT3FT 68C

ROC4 W18_XJ4KT3FT 46A

ROC5 W18_XJ4KT3FT 46C

ROC6 W18_XJ4KT3FT 47B

ROC7 W18_XJ4KT3FT 47D

ROC	ROC wafer	Label
ROC0	W18_XJ4KT3FT	51D
ROC1	W18_XJ4KT3FT	51B
ROC2	W18_XJ4KT3FT	51A
ROC3	W18_XJ4KT3FT	68C
ROC4	W18_XJ4KT3FT	46A
ROC5	W18_XJ4KT3FT	46C
ROC6	W18_XJ4KT3FT	47B
ROC7	W18_XJ4KT3FT	47D

Inspected by Arndt Kirk on date 11/10/2006

LR_dev 0.033

LL_dev 0.043

FINAL COMMENT by Arndt Kirk No assembly problems. No wirebond problem.

PLAQUETTE made READY for testing on 11/10/2006 by Arndt Kirk

PLAQUETTE TESTED on 2006-11-13 by Isaac Childres

IV_XML-File

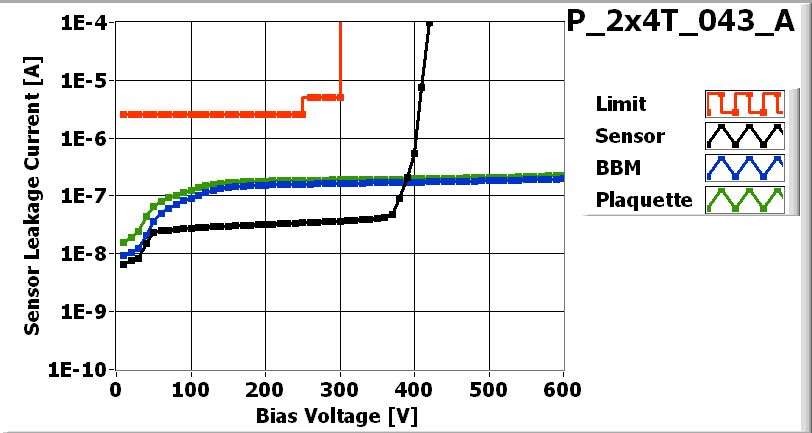

Maximum Voltage 600 V

LASER_XML-File

Depletion Voltage 46 V

Operational Voltage 86 V

ROC	ROC0	ROC1	ROC2	ROC3	ROC4	ROC5	ROC6	ROC7

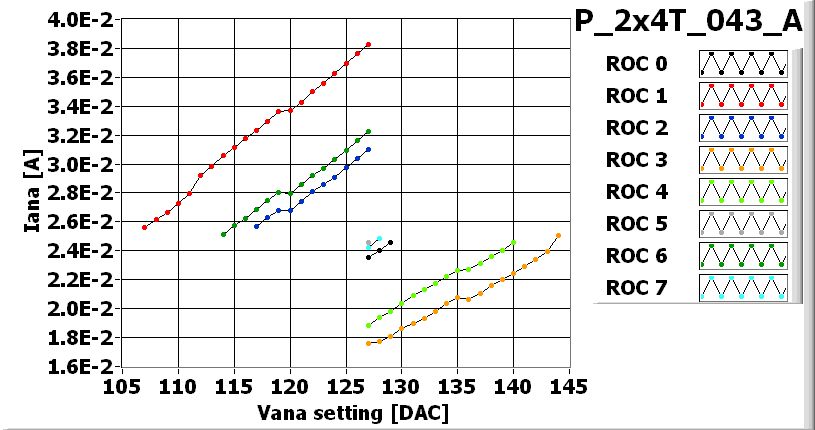

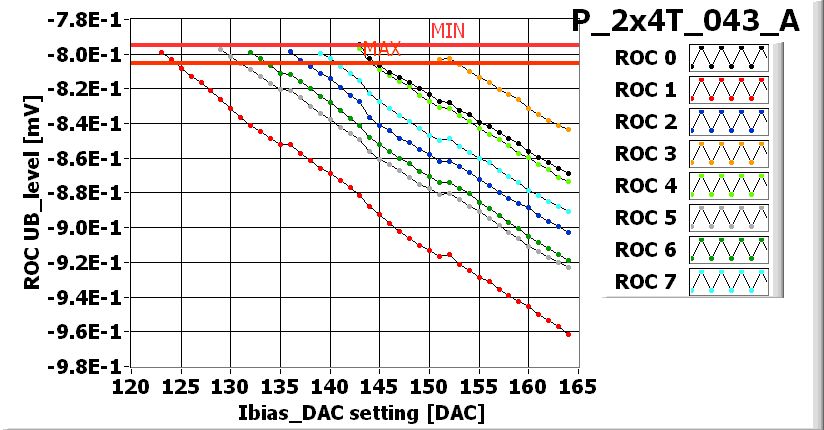

Ibias_DAC	143	123	136	151	143	129	132	139
Vana	129	107	117	144	140	127	114	128
Cal_Del	96	100	79	78	83	86	84	89
Vthrs_Comp	77	59	78	82	74	79	80	59
Unbumped	0	0	0	0	0	0	0	0
Dead	0	0	0	0	0	0	0	0
Noisy	0	0	0	0	0	0	0	0
Undecoded	0	0	0	0	0	0	0	0
Total BAD	0	0	0	0	0	0	0	0

ASSEMBLY_XML-File	SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File
	I_BIAS_DAC_XML-File
	VANA_XML-File
	DEAD_XML-File
	NOISY_XML-File
	UNDECODED_XML-File
	LIGHT_XML-File

PLAQUETTE READY FOR SHIPPING

Shipped on date 2006-11-14

Plaquette assigned to panel P4R_066
