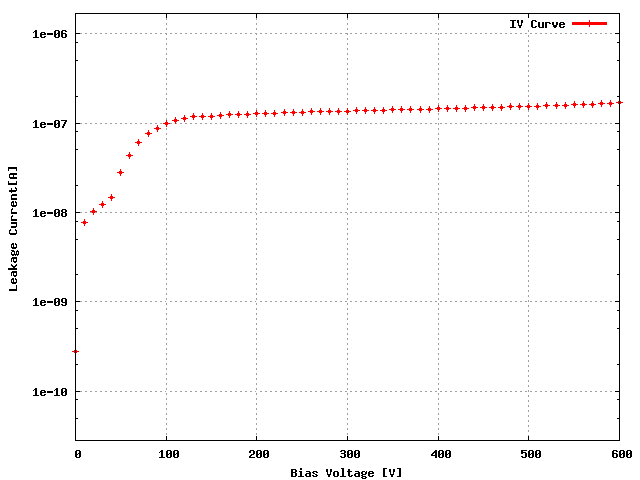

Sensor: S_2x4T_04, Data for leakage current measurement , and plot on overall it is a GOOD sensor
ROC | ROC wafer | Label |
---|---|---|
ROC0 | W35_XH4K3HT | 53B |
ROC1 | W35_XH4K3HT | 52D |
ROC2 | W35_XH4K3HT | 52C |
ROC3 | W35_XH4K3HT | 52B |
ROC4 | W36_XD4K3LT | 29A |
ROC5 | W36_XD4K3LT | 29C |
ROC6 | W36_XD4K3LT | 11A |
ROC7 | W36_XD4K3LT | 11B |
Ibias_DAC, Ibias_DAC Data | 166 | 166 | 166 | 142 | 168 | 162 | 144 | 144 |
Vana, VanaData | 128 | 139 | 138 | 127 | 149 | 142 | 124 | 112 |
CalDelData and plots | 96 | 65 | 70 | 90 | 73 | 87 | 96 | 94 |
VthrCompData and plots | 63 | 85 | 92 | 67 | 92 | 76 | 76 | 72 | Depletion Voltage is -46 and suggested operational voltage is -86
TestDdata ,TestD Plots | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
LightData ,Light Plots | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
Pass/Fail TestD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD |
Pass/Fail LIGHT | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD |

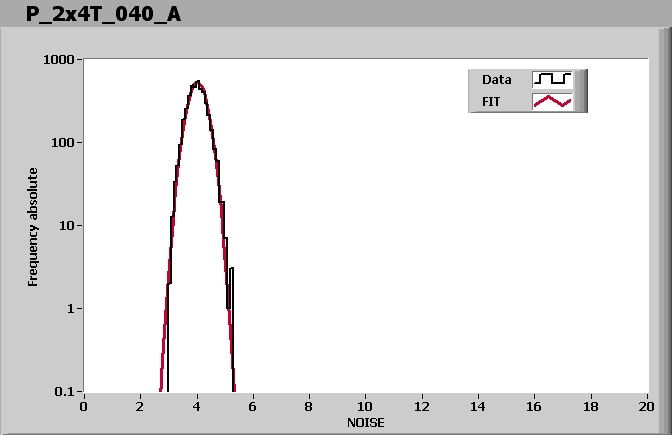

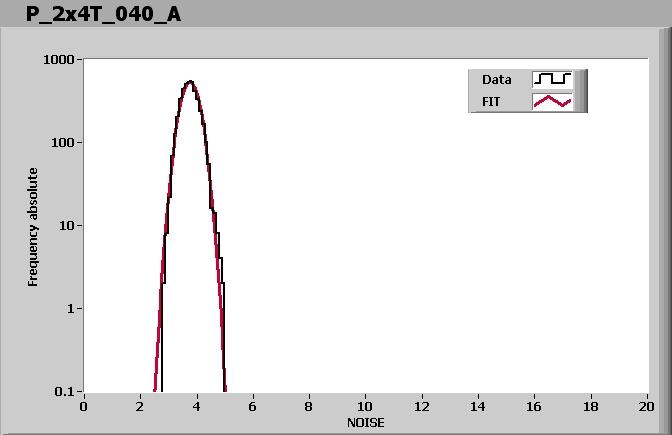

Noise MAP at VMAX
Efficiency MAP
EXTRA DACs for NOISE
VHldDe | 110 | 110 | 110 | 130 | 95 | 100 | 135 | 175 |
Vsf | 140 | 140 | 140 | 140 | 150 | 140 | 135 | 140 |
VoffsetOp | 80 | 110 | 100 | 60 | 110 | 110 | 70 | 55 |
VIbias_PH | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 95 |
Comment (if any):
This Device have been tested 0Times prior to this one and here are the links to the previous tests:End testing time: 10:06 AM
