Parts committed by Isaac Childres on date 5/10/2007
| Part | ID |
|---|---|
| BBM | BBM_020-2x4T |
| VHDI | 2x4_639 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W49_D1LQG5T | 21B |
| ROC1 | W49_D1LQG5T | 20A |
| ROC2 | W49_D1LQG5T | 39D |
| ROC3 | W49_D1LQG5T | 39C |
| ROC4 | W49_D1LQG5T | 55D |
| ROC5 | W49_D1LQG5T | 56C |
| ROC6 | W49_D1LQG5T | 56D |
| ROC7 | W49_D1LQG5T | 57B |
Inspected by Lockwood Gale on date 5/21/2007
| LR_dev | 0.012 |
| LL_dev | 0.082 |
PLAQUETTE GLUED with FULL PRESSURE
| FINAL COMMENT by Lockwood Gale | No assembly problems. Released pusher before releasing joining force. No wirebonding problems. |
PLAQUETTE made READY for ENCAPSULATION on 5/21/2007 by Lockwood Gale
Inspected by Arndt Kirk on date 5/21/2007
| Picture | Comment |
|---|---|
| Unable to bond to VHDI pad for ROC6 chn 1 GND_CAP wirebond. Bonded wire to scraped trace on VHDI. |
PLAQUETTE encapsulated on 5/21/2007 by Perera Rajiv
PLAQUETTE made READY for testing on 5/21/2007 by Perera Rajiv
P_2x4T_020_Aon 5/23/2007 9:30 AM
P_2x4T_020_Aon 5/23/2007 9:30 AM
PLAQUETTE TESTED on 2007-05-23 by Emily Grace
![[IMAGE] of](P_2x4T_020_A_IV.jpg) |
|
|||

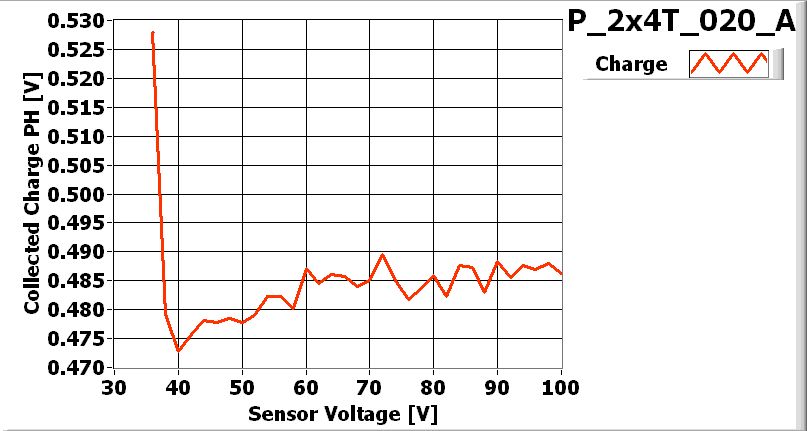

![[IMAGE] of](P_2x4T_020_A_LASER.jpg) |
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | ROC6 | ROC7 | |
| Ibias_DAC | 154 | 144 | 144 | 150 | 160 | 140 | 152 | 164 | |
| Vana | 122 | 143 | 148 | 121 | 145 | 145 | 143 | 139 | |
| Cal_Del | 98 | 97 | 101 | 93 | 81 | 92 | 86 | 97 | |
| Vthrs_Comp | 87 | 76 | 82 | 84 | 92 | 83 | 84 | 80 | |
| Unbumped | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Dead | 29 | 9 | 8 | 13 | 7 | 8 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 29 | 9 | 8 | 13 | 7 | 8 | 0 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |
![[IMAGE] of](P_2x4T_020_A_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |
![[IMAGE] of](P_2x4T_020_A_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_2x4T_020_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x4T_020_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x4T_020_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x4T_020_Ano-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 145 | 95 | 95 | 160 | 105 | 95 | 95 | 100 |
| Vsf | 135 | 140 | 145 | 135 | 145 | 140 | 140 | 140 |
| VoffsetOp | 100 | 85 | 115 | 80 | 115 | 100 | 100 | 115 |
| VIbias_PH | 95 | 95 | 100 | 95 | 100 | 100 | 95 | 100 |

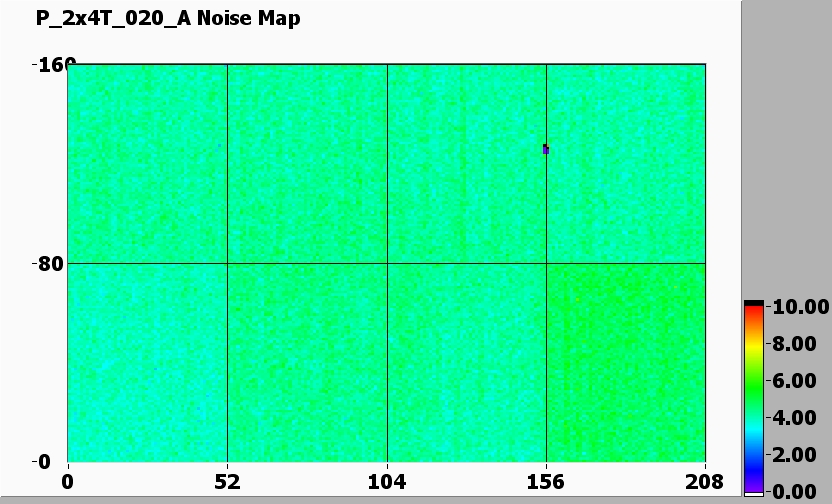

Noise MAP at VMAX
![[IMAGE] of](P_2x4T_020_A-580-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_2x4T_020_A-580-efficiency.jpg)

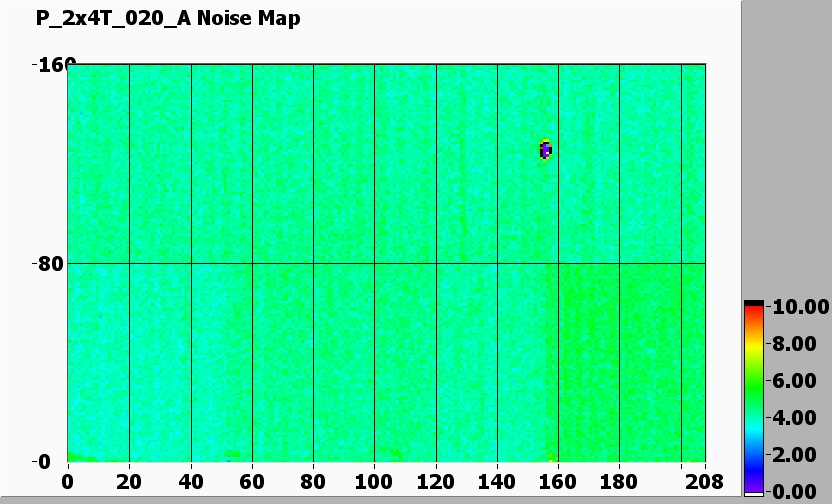

Noise MAP at -200 V
![[IMAGE] of](P_2x4T_020_A-200-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_2x4T_020_A-200-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
