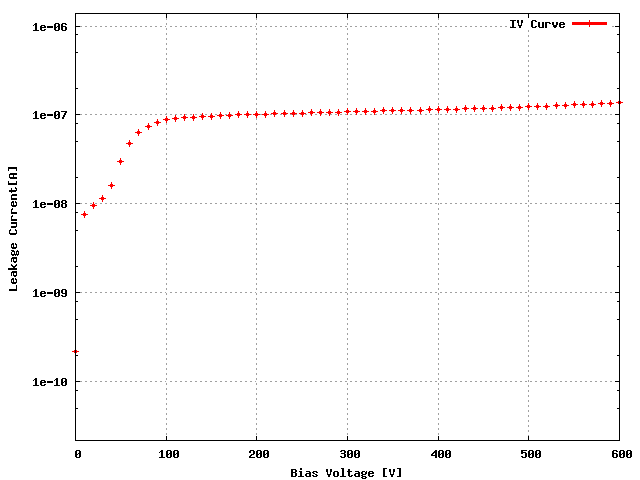

Sensor: S_2x4T_01, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC	ROC wafer	Label
ROC0	W49_D1LQG5T	46B
ROC1	W48_DVLQDVT	58D
ROC2	W49_D1LQG5T	45D
ROC3	W48_DVLQDVT	67A
ROC4	W49_D1LQG5T	62D
ROC5	W49_D1LQG5T	63A
ROC6	W49_D1LQG5T	64A
ROC7	W48_DVLQDVT	46C

Depletion Voltage is -46 and suggested operational voltage is -86

Ibias_DAC, Ibias_DAC Data	140	160	154	160	168	156	154	154
Vana, VanaData	116	155	149	142	141	140	123	139
CalDelData and plots	94	82	67	63	96	87	87	77
VthrCompData and plots	75	92	91	87	83	89	85	87
TestDdata ,TestD Plots	0	0	0	0	1	0	0	0
LightData ,Light Plots	0	0	0	0	0	0	0	0
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD

Noise MAP at VMAX

Efficiency MAP

EXTRA DACs for NOISE

ROC0 NOISE			MEAN = 4.761788 SIGMA = 0.353915
ROC1 NOISE			MEAN = 4.305278 SIGMA = 0.344070
ROC2 NOISE			MEAN = 3.737438 SIGMA = 0.296343

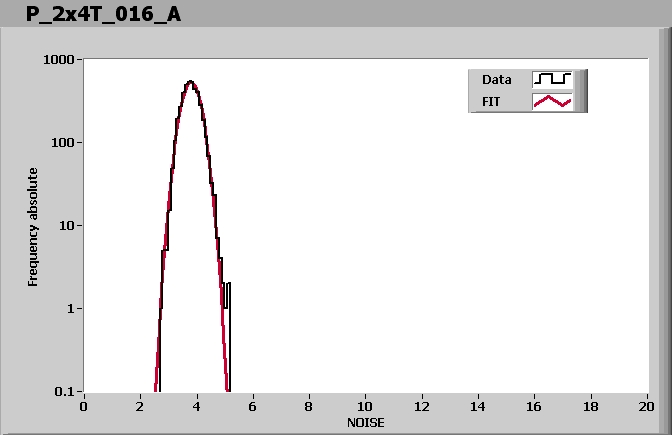

ROC3 NOISE			MEAN = 3.793978 SIGMA = 0.307991

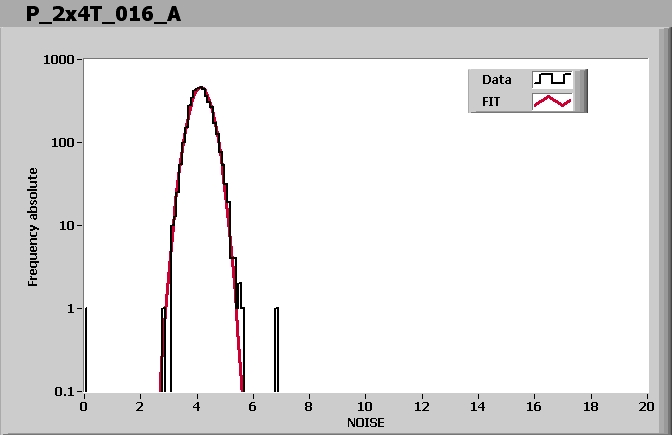

ROC4 NOISE			MEAN = 4.142483 SIGMA = 0.356439
ROC5 NOISE			MEAN = 4.009513 SIGMA = 0.302178

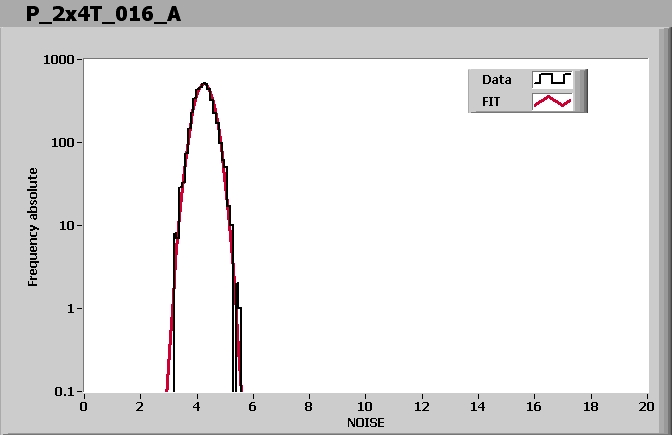

ROC6 NOISE			MEAN = 4.254230 SIGMA = 0.320463
ROC7 NOISE			MEAN = 4.310714 SIGMA = 0.342713

Comment (if any):

End testing time: 10:50 AM
