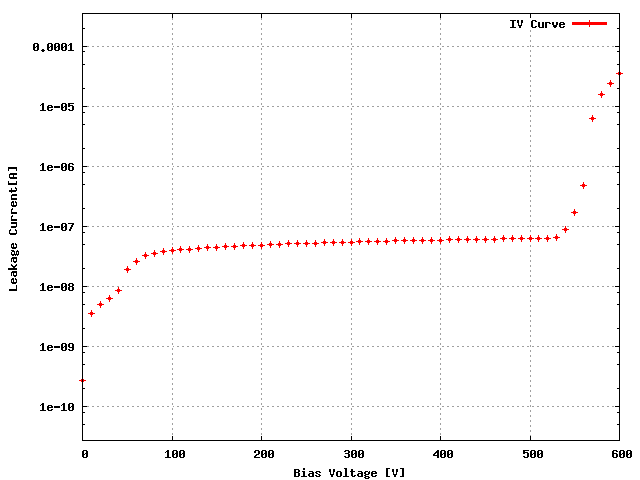

Sensor: S_2x4B_16, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC	ROC wafer	Label
ROC0	KBNG0QT	73B
ROC1	KBNG0QT	14B
ROC2	KBNG0QT	14A
ROC3	KBNG0QT	65C
ROC4	KBNG0QT	44B
ROC5	KBNG0QT	74A
ROC6	KBNG0QT	73A
ROC7	KBNG0QT	56B

Depletion Voltage is -40 and suggested operational voltage is -80

Ibias_DAC, Ibias_DAC Data	154	162	164	160	170	142	142	152
Vana, VanaData	139	134	141	126	131	138	113	137
CalDelData and plots	103	68	78	87	66	82	90	67
VthrCompData and plots	79	85	84	84	73	81	80	81
TestDdata ,TestD Plots	9	0	0	2	1	1	13	1
LightData ,Light Plots	40	0	0	1	0	2	101	1
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	BAD	GOOD

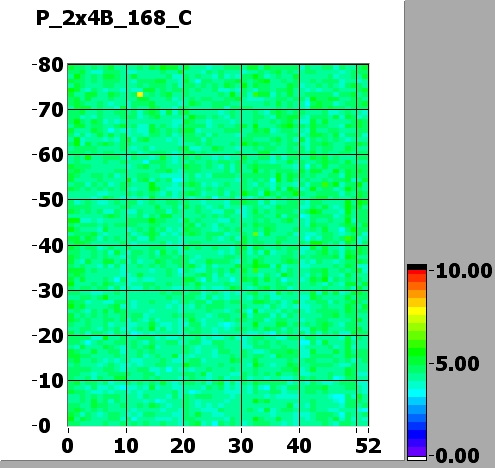

Noise MAP at VMAX

Efficiency MAP

EXTRA DACs for NOISE

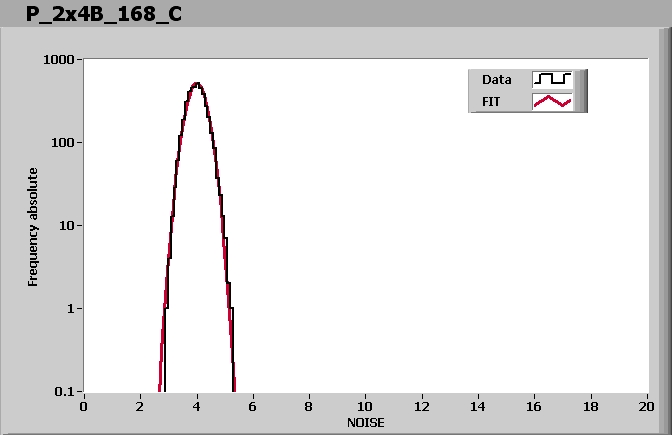

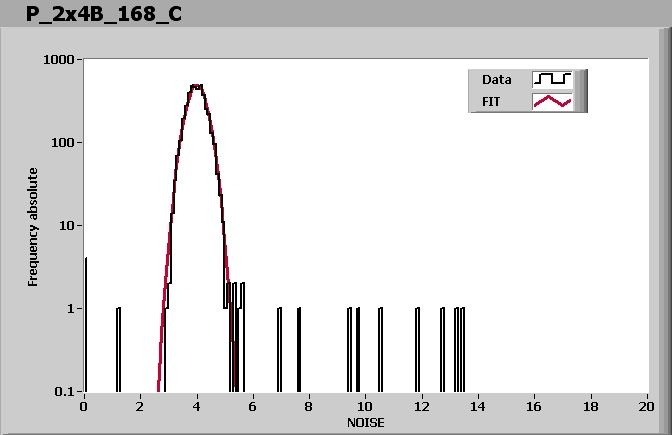

ROC0 NOISE			MEAN = 3.995384 SIGMA = 0.323136

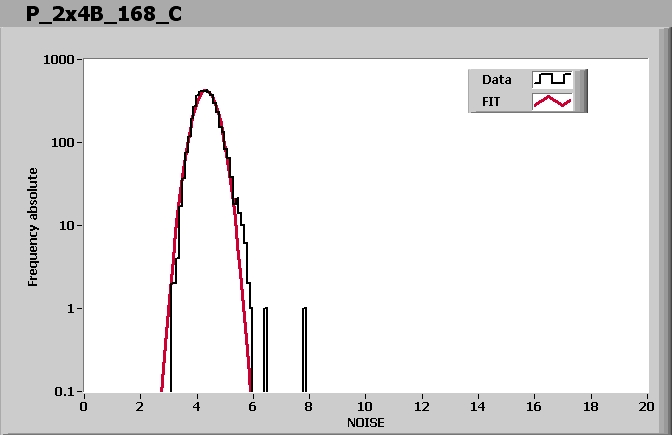

ROC1 NOISE			MEAN = 4.324668 SIGMA = 0.383728

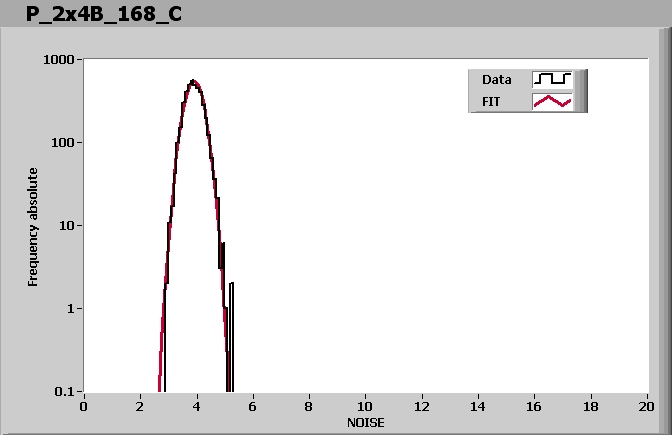

ROC2 NOISE			MEAN = 3.895934 SIGMA = 0.302205

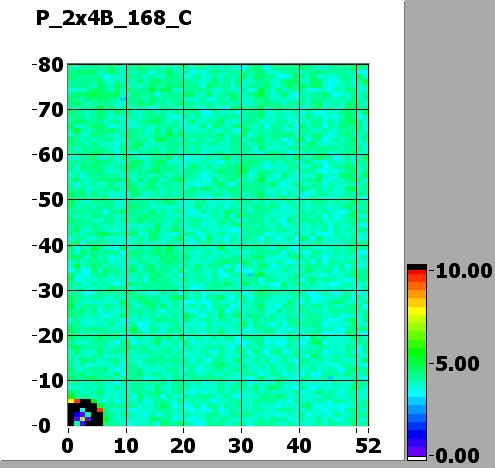

ROC3 NOISE			MEAN = 3.997309 SIGMA = 0.336978

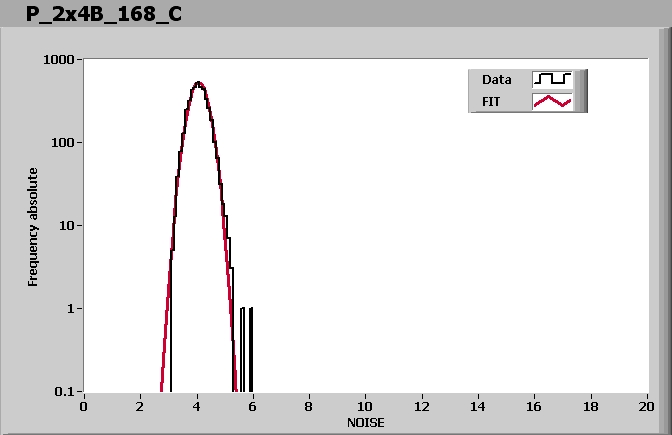

ROC4 NOISE			MEAN = 4.064216 SIGMA = 0.317824

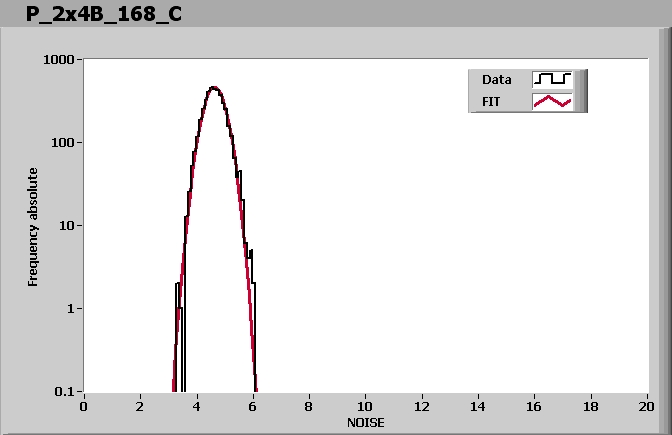

ROC5 NOISE			MEAN = 4.628174 SIGMA = 0.360812
ROC6 NOISE			MEAN = 4.672936 SIGMA = 0.381422

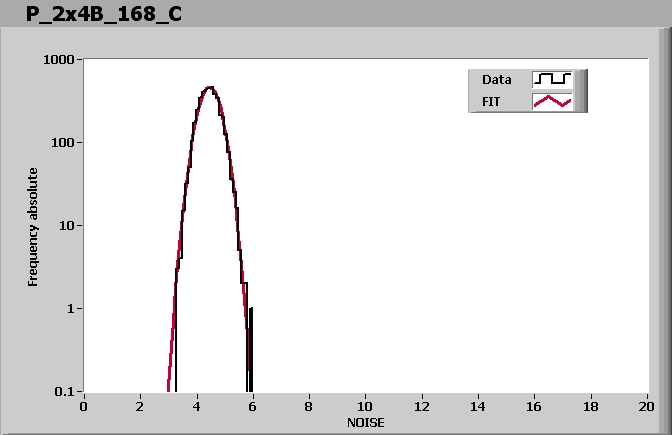

ROC7 NOISE			MEAN = 4.449539 SIGMA = 0.359926

Comment (if any):

End testing time: 10:14 AM
