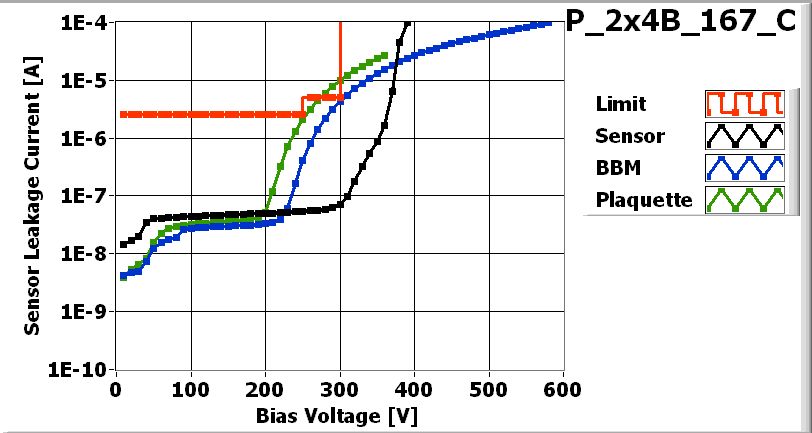

![[IMAGE] of](P_2x4B_167_C_IV.jpg)
| IV_XML-File |
| Maximum Voltage 360 V |

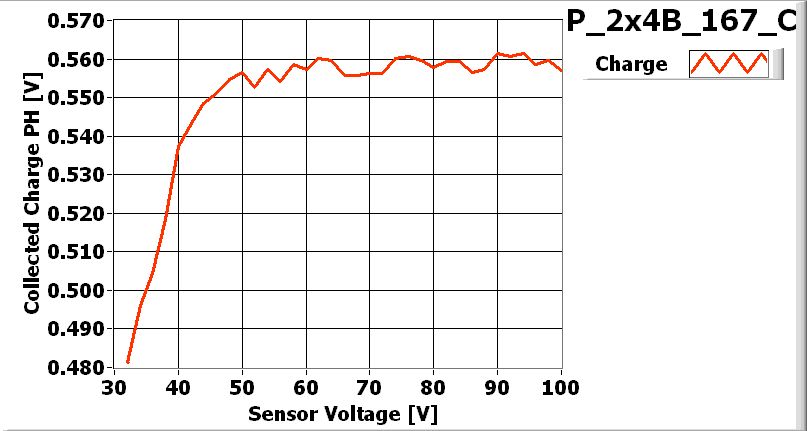

![[IMAGE] of](P_2x4B_167_C_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 48 V |
| Operational Voltage 88 V |
Parts committed by Bolla Gino on date 4/26/2007
| Part | ID |
|---|---|
| BBM | BBM_167-2x4B |
| VHDI | 2x4_579 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | DWLQFTT | 25D |
| ROC1 | DWLQFTT | 26A |
| ROC2 | DWLQFTT | 27C |
| ROC3 | DWLQFTT | 27B |
| ROC4 | DWLQFTT | 23C |
| ROC5 | DWLQFTT | 23D |
| ROC6 | DWLQFTT | 23B |
| ROC7 | DWLQFTT | 24B |
Inspected by Lockwood Gale on date 5/1/2007
| LR_dev | 0.045 |
| LL_dev | 0.014 |
PLAQUETTE GLUED with HALF PRESSURE
| FINAL COMMENT by Lockwood Gale | Assembled at HALF-PRESSURE. No assembly problems. No wirebonding problems. |
PLAQUETTE made READY for ENCAPSULATION on 5/1/2007 by Lockwood Gale
PLAQUETTE encapsulated on 5/4/2007 by Ozhan Koybasi
PLAQUETTE made READY for testing on 5/4/2007 by Ozhan Koybasi
P_2x4B_167_Con 5/7/2007 10:55 AM
P_2x4B_167_Con 5/7/2007 10:55 AM
PLAQUETTE TESTED on 2007-05-07 by Gino Bolla
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | ROC6 | ROC7 | |
| Ibias_DAC | 140 | 126 | 126 | 126 | 142 | 132 | 142 | 140 | |
| Vana | 143 | 147 | 122 | 127 | 145 | 143 | 153 | 143 | |
| Cal_Del | 96 | 86 | 95 | 97 | 80 | 85 | 86 | 83 | |
| Vthrs_Comp | 87 | 86 | 74 | 85 | 95 | 87 | 93 | 80 | |
| Unbumped | 1 | 0 | 2 | 0 | 0 | 0 | 0 | 0 | |
| Dead | 0 | 0 | 0 | 1 | 0 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 1 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 1 | 0 | 3 | 1 | 0 | 0 | 0 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

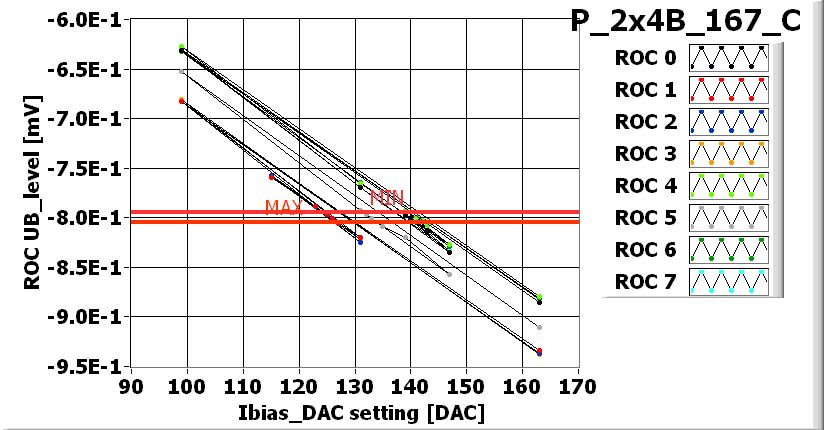

![[IMAGE] of](P_2x4B_167_C_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

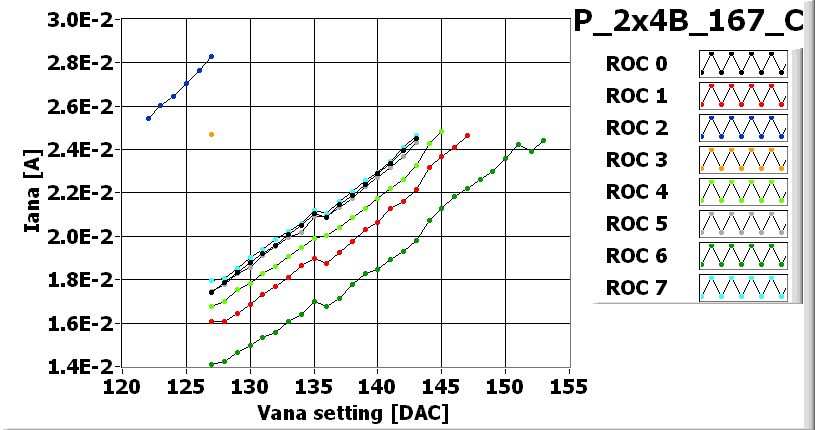

![[IMAGE] of](P_2x4B_167_C_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_2x4B_167_CDead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x4B_167_CNoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x4B_167_CUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x4B_167_Cno-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 100 | 90 | 125 | 105 | 95 | 95 | 95 | 90 |
| Vsf | 140 | 145 | 140 | 140 | 145 | 140 | 150 | 145 |
| VoffsetOp | 100 | 105 | 85 | 85 | 120 | 110 | 125 | 105 |
| VIbias_PH | 105 | 100 | 100 | 100 | 105 | 95 | 100 | 100 |

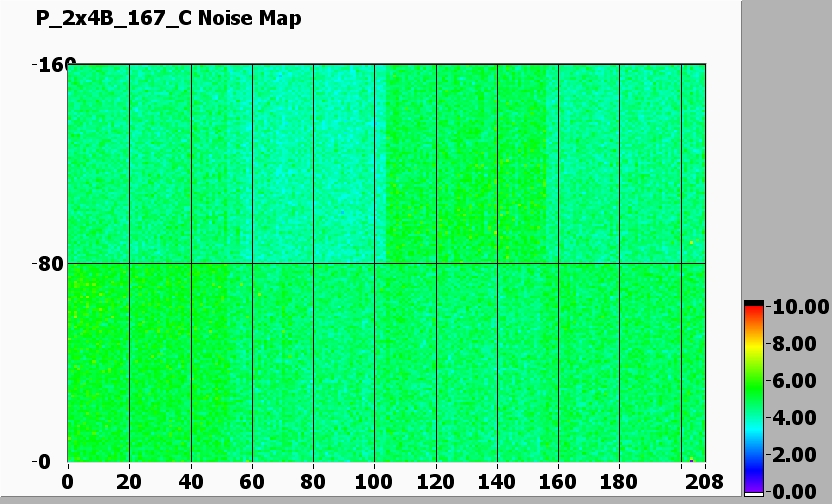

Noise MAP
![[IMAGE] of](P_2x4B_167_C-340-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_2x4B_167_C-340-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
