![[IMAGE] of](P_2x4B_165_C_IV.jpg)
| IV_XML-File |
| Maximum Voltage 600 V |
![[IMAGE] of](P_2x4B_165_C_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 48 V |
| Operational Voltage 88 V |
Parts committed by Bolla Gino on date 5/7/2007
| Part | ID |
|---|---|
| BBM | BBM_165-2x4B |
| VHDI | 2x4_619 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | KFNG13T | 74B |
| ROC1 | KFNG13T | 25C |
| ROC2 | KFNG13T | 64A |
| ROC3 | KFNG13T | 15B |
| ROC4 | KFNG13T | 34A |
| ROC5 | KFNG13T | 44A |
| ROC6 | KFNG13T | 74D |
| ROC7 | KFNG13T | 64D |
Inspected by Lockwood Gale on date 5/9/2007
| LR_dev | 0.024 |
| LL_dev | 0.056 |
PLAQUETTE GLUED with HALF PRESSURE
| FINAL COMMENT by Lockwood Gale | Assembled at HALF-PRESSURE. No assembly problems. No wirebonding ptoblems. |
PLAQUETTE made READY for ENCAPSULATION on 5/9/2007 by Lockwood Gale
PLAQUETTE encapsulated on 5/9/2007 by Ortiz Jason
PLAQUETTE made READY for testing on 5/9/2007 by Ortiz Jason
P_2x4B_165_Con 5/10/2007 11:34 AM
P_2x4B_165_Con 5/10/2007 11:34 AM
PLAQUETTE TESTED on 2007-05-10 by mia tosi
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | ROC6 | ROC7 | |
| Ibias_DAC | 156 | 172 | 176 | 156 | 160 | 162 | 174 | 158 | |
| Vana | 141 | 156 | 138 | 141 | 147 | 131 | 149 | 137 | |
| Cal_Del | 83 | 72 | 66 | 84 | 63 | 69 | 71 | 77 | |
| Vthrs_Comp | 79 | 90 | 93 | 80 | 83 | 81 | 88 | 83 | |
| Unbumped | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Dead | 0 | 0 | 0 | 0 | 0 | 0 | 1 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 6 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 6 | 0 | 0 | 0 | 0 | 0 | 1 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

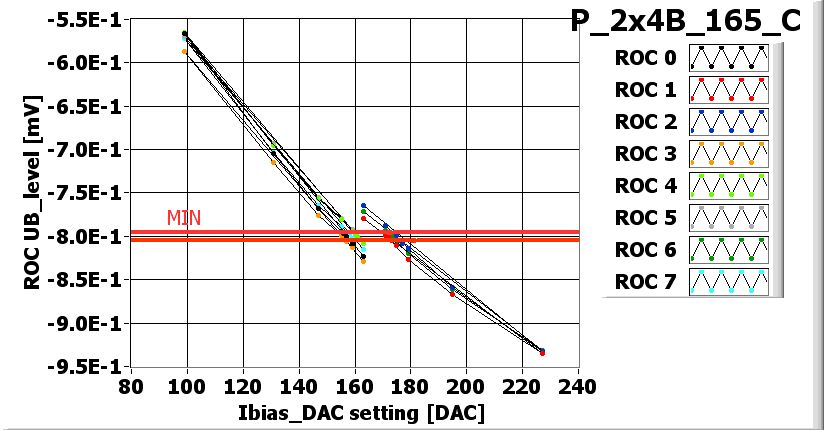

![[IMAGE] of](P_2x4B_165_C_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

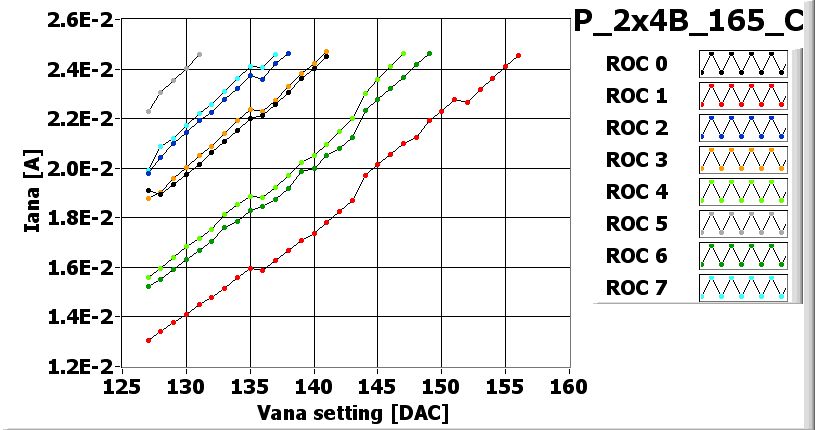

![[IMAGE] of](P_2x4B_165_C_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_2x4B_165_CDead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x4B_165_CNoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x4B_165_CUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x4B_165_Cno-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 105 | 95 | 110 | 95 | 95 | 120 | 95 | 105 |
| Vsf | 140 | 155 | 145 | 145 | 145 | 140 | 145 | 145 |
| VoffsetOp | 75 | 135 | 95 | 90 | 100 | 95 | 105 | 80 |
| VIbias_PH | 105 | 100 | 100 | 100 | 100 | 95 | 100 | 105 |

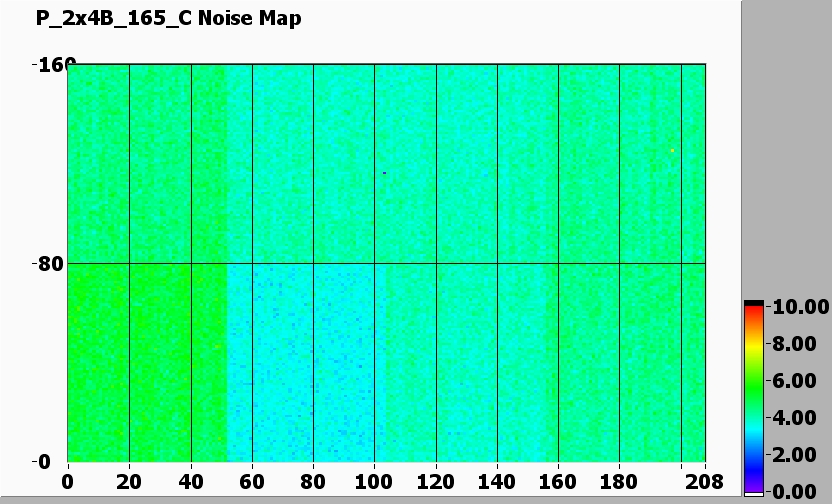

Noise MAP
![[IMAGE] of](P_2x4B_165_C-580-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_2x4B_165_C-580-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
