P_2x4B_159

P_2x4B_159_C

Parts committed by Bolla Gino on date 4/24/2007

Part	ID
BBM	BBM_159-2x4B
VHDI	2x4_574

ROC ROC wafer Label

ROC0 DWLQFTT 33D

ROC1 DWLQFTT 31D

ROC2 DWLQFTT 37B

ROC3 DWLQFTT 30C

ROC4 DWLQFTT 37A

ROC5 DWLQFTT 32A

ROC6 DWLQFTT 31A

ROC7 DWLQFTT 30A

ROC	ROC wafer	Label
ROC0	DWLQFTT	33D
ROC1	DWLQFTT	31D
ROC2	DWLQFTT	37B
ROC3	DWLQFTT	30C
ROC4	DWLQFTT	37A
ROC5	DWLQFTT	32A
ROC6	DWLQFTT	31A
ROC7	DWLQFTT	30A

Inspected by Lockwood Gale on date 4/27/2007

LR_dev 0.076

LL_dev 0.042

PLAQUETTE GLUED with HALF PRESSURE

FINAL COMMENT by Lockwood Gale

Assembled at HALF-PRESSURE. No assembly problems. No wirebonding problems.

PLAQUETTE made READY for ENCAPSULATION on 4/27/2007 by Lockwood Gale

PLAQUETTE encapsulated on 5/1/2007 by Ozhan Koybasi

PLAQUETTE made READY for testing on 5/1/2007 by Ozhan Koybasi

P_2x4B_159_Con 5/2/2007 4:52 PM

PLAQUETTE TESTED on 2007-05-02 by mia tosi

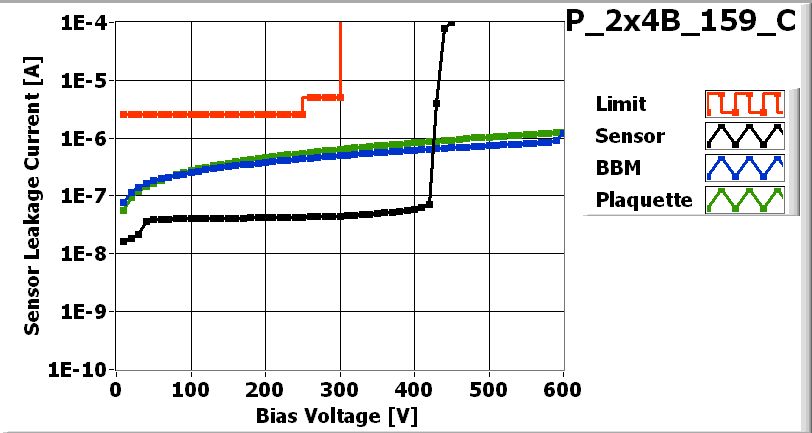

IV_XML-File

Maximum Voltage 600 V

LASER_XML-File

Depletion Voltage 48 V

Operational Voltage 88 V

ROC	ROC0	ROC1	ROC2	ROC3	ROC4	ROC5	ROC6	ROC7
Ibias_DAC	144	138	144	138	144	142	138	142
Vana	127	144	158	140	143	157	148	148
Cal_Del	81	94	81	85	69	96	93	76
Vthrs_Comp	88	87	90	85	90	93	83	89
Unbumped	1	2	0	1	0	0	0	2
Dead	0	0	0	0	0	0	0	0
Noisy	0	0	0	0	0	0	0	0
Undecoded	0	0	0	0	0	0	0	0
Total BAD	1	2	0	1	0	0	0	2

ASSEMBLY_XML-File	SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File

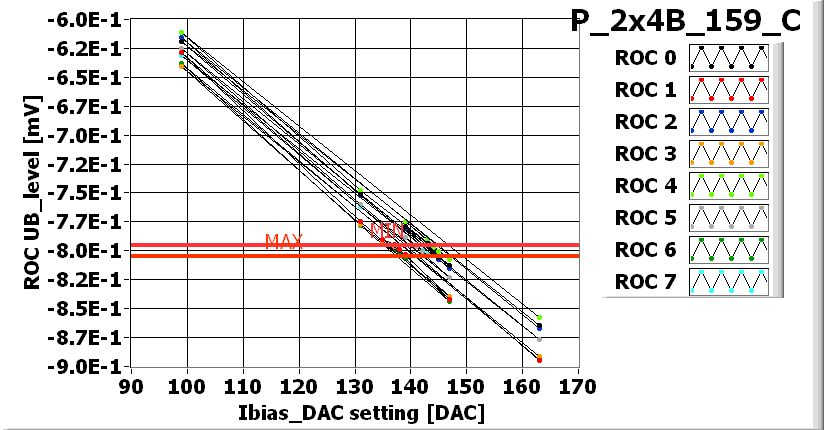

	I_BIAS_DAC_XML-File
	VANA_XML-File
	DEAD_XML-File
	NOISY_XML-File
	UNDECODED_XML-File
	LIGHT_XML-File

EXTRA DACs for NOISE

VHldDe	130	95	110	100	95	105	95	105
Vsf	140	150	160	140	140	160	145	150
VoffsetOp	100	90	120	105	125	135	105	120
VIbias_PH	105	95	105	105	100	95	95	100

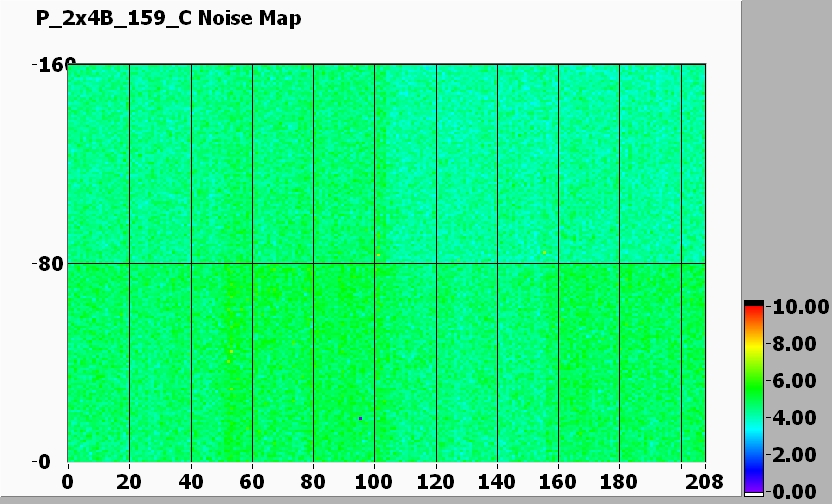

Noise MAP

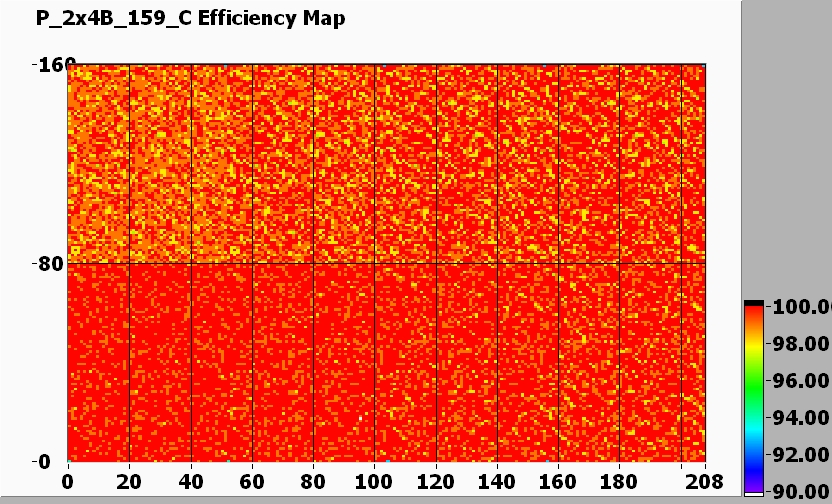

Efficiency MAP

PLAQUETTE READY TO BE SHIPPED

Shipped on date 2007-05-07

Plaquette assigned to panel P3R_046
