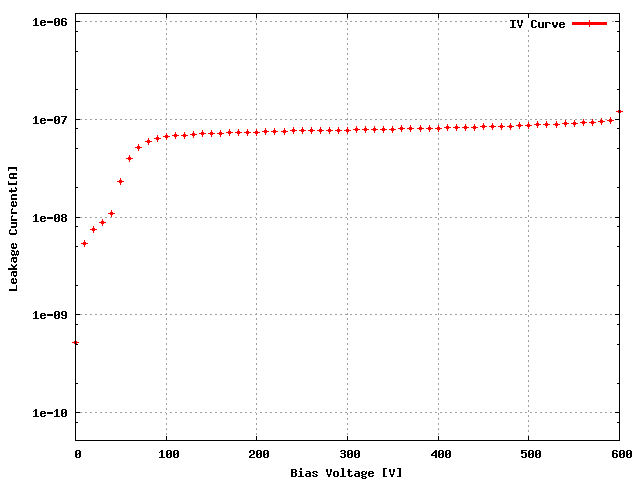

Sensor: S_2x4B_15, Data for leakage current measurement , and plot on overall it is a GOOD sensor
ROC | ROC wafer | Label |
---|---|---|
ROC0 | W29_X64K5ST | 40C |
ROC1 | W29_X64K5ST | 40A |
ROC2 | W29_X64K5ST | 58C |
ROC3 | W29_X64K5ST | 58A |
ROC4 | W29_X64K5ST | 38A |
ROC5 | W29_X64K5ST | 38B |
ROC6 | W29_X64K5ST | 38D |
ROC7 | W29_X64K5ST | 39A |
Ibias_DAC, Ibias_DAC Data | 150 | 146 | 132 | 146 | 140 | 132 | 136 | 148 |
Vana, VanaData | 135 | 143 | 141 | 137 | 122 | 135 | 142 | 143 |
CalDelData and plots | 66 | 80 | 96 | 93 | 81 | 88 | 84 | 69 |
VthrCompData and plots | 77 | 76 | 75 | 77 | 72 | 68 | 89 | 86 | Depletion Voltage is -48 and suggested operational voltage is -88
TestDdata ,TestD Plots | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
LightData ,Light Plots | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1 |
Pass/Fail TestD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD |
Pass/Fail LIGHT | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD |

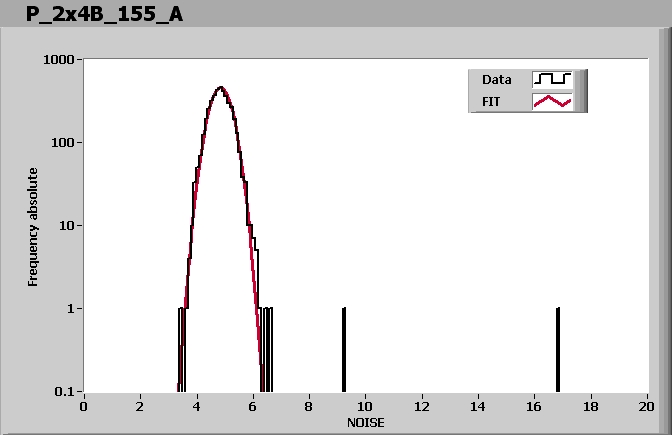

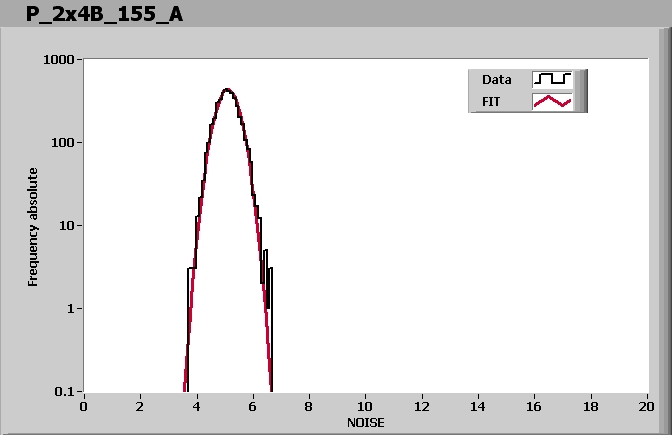

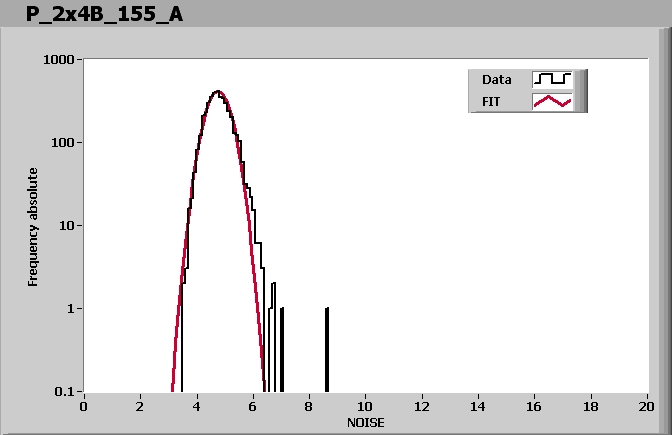

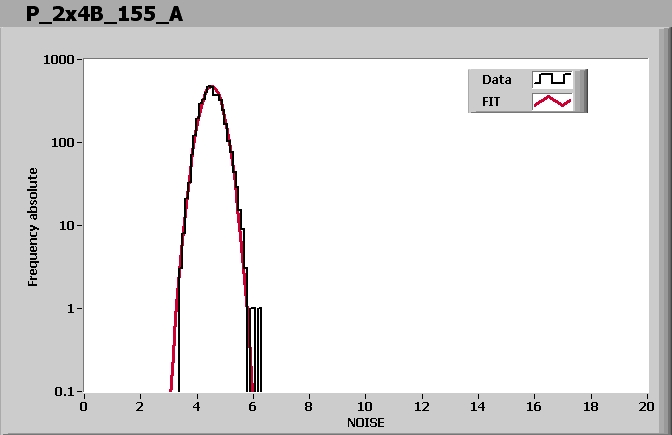

Noise MAP
Efficiency MAP
EXTRA DACs for NOISE
VHldDe | 105 | 90 | 95 | 95 | 160 | 110 | 85 | 115 |
Vsf | 140 | 145 | 140 | 140 | 135 | 140 | 145 | 140 |
VoffsetOp | 95 | 90 | 85 | 105 | 70 | 100 | 95 | 125 |
VIbias_PH | 100 | 100 | 100 | 105 | 95 | 100 | 100 | 100 |
Comment (if any): Good.
This Device have been tested 0Times prior to this one and here are the links to the previous tests:End testing time: 12:48 PM
