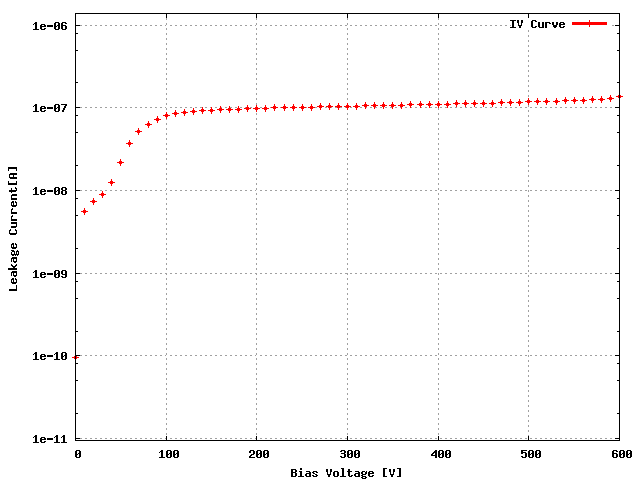

Sensor: S_2x4B_14, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC	ROC wafer	Label
ROC0	W54_D2LQG4T	25B
ROC1	W54_D2LQG4T	25A
ROC2	W54_D2LQG4T	24D
ROC3	W54_D2LQG4T	24B
ROC4	W54_D2LQG4T	06B
ROC5	W54_D2LQG4T	06D
ROC6	W47_DXLQFST	37B
ROC7	W47_DXLQFST	37C

Depletion Voltage is -44 and suggested operational voltage is -84

Ibias_DAC, Ibias_DAC Data	154	150	160	148	154	162	134	166
Vana, VanaData	150	138	134	146	145	140	148	154
CalDelData and plots	80	68	84	78	81	93	91	80
VthrCompData and plots	89	91	79	82	89	81	85	91
TestDdata ,TestD Plots	1	1	0	4	1	0	18	13
LightData ,Light Plots	1	0	0	0	0	0	0	1
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD

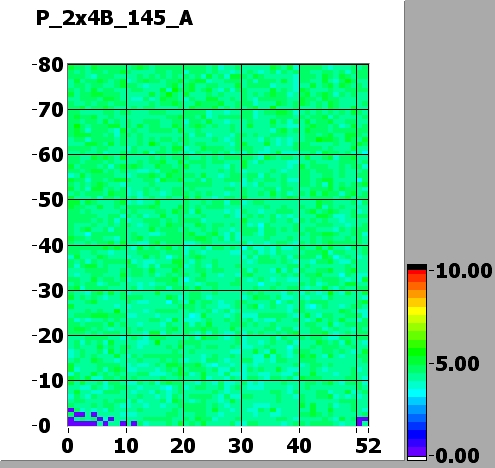

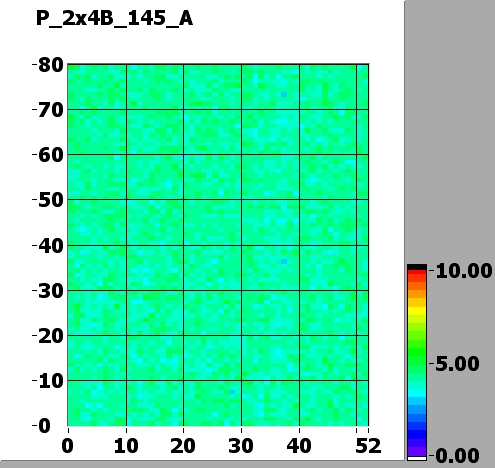

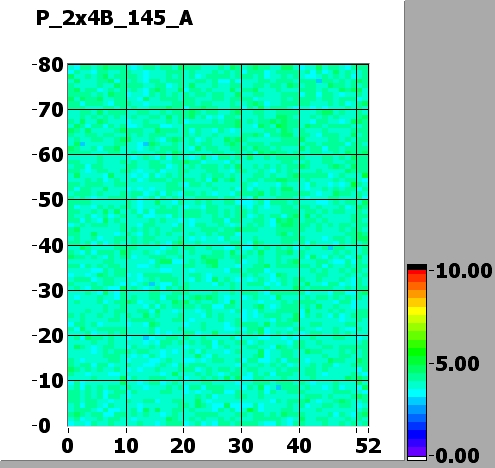

Noise MAP at VMAX

Efficiency MAP

EXTRA DACs for NOISE

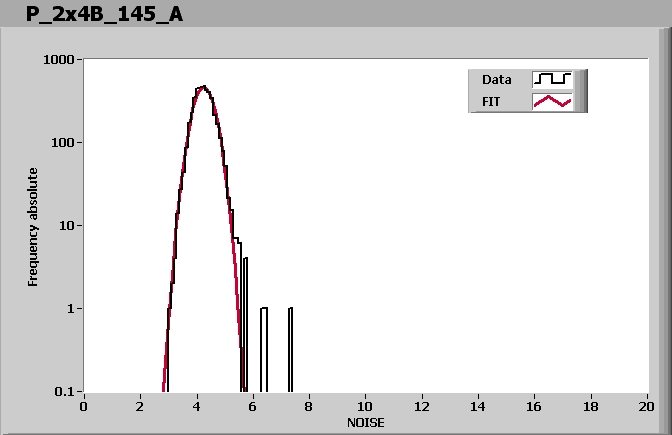

ROC0 NOISE			MEAN = 4.243107 SIGMA = 0.348175

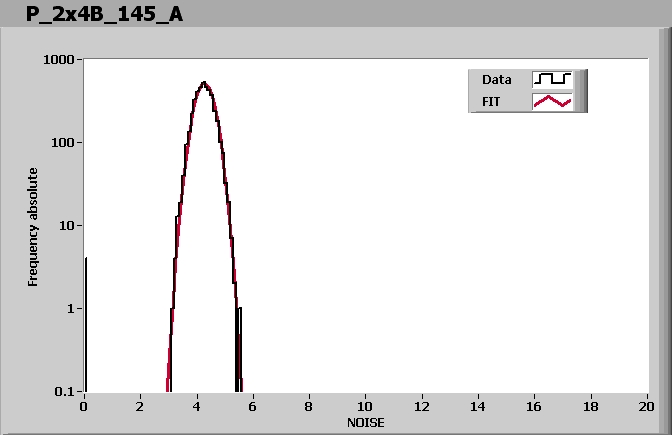

ROC1 NOISE			MEAN = 4.230673 SIGMA = 0.332309

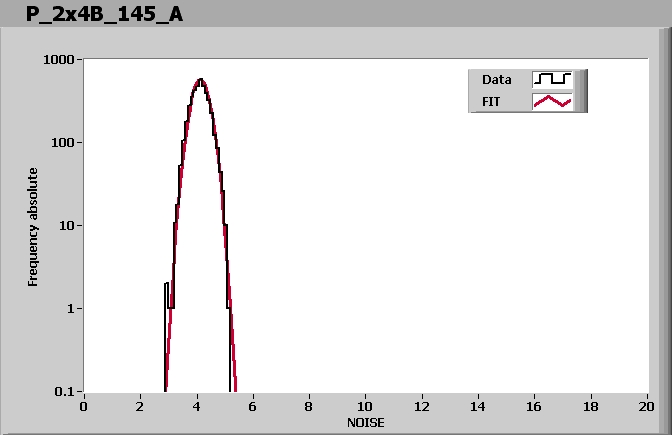

ROC2 NOISE			MEAN = 4.126574 SIGMA = 0.297370
ROC3 NOISE			MEAN = 4.267232 SIGMA = 0.321096

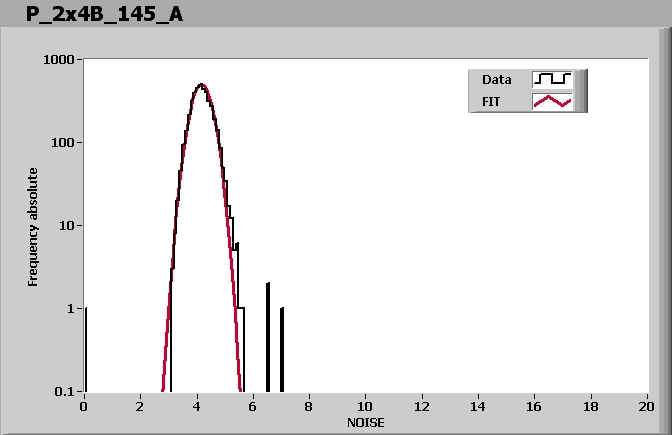

ROC4 NOISE			MEAN = 4.167234 SIGMA = 0.332422

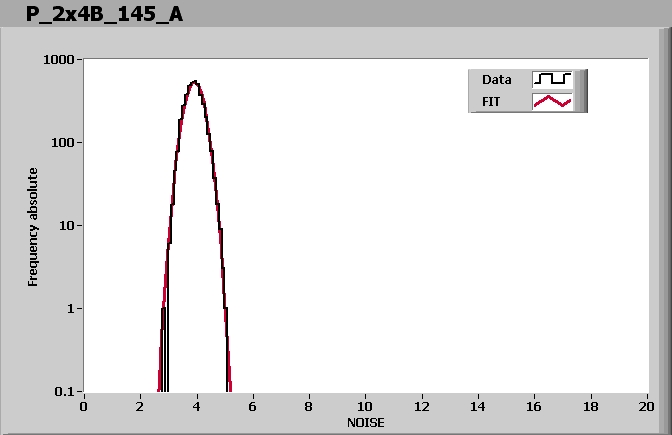

ROC5 NOISE			MEAN = 3.909018 SIGMA = 0.308678

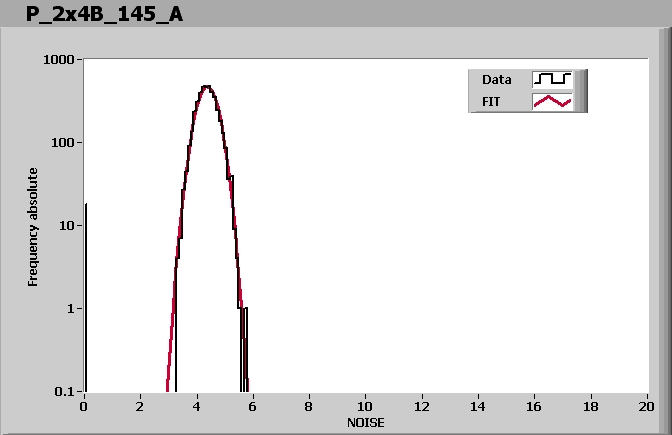

ROC6 NOISE			MEAN = 4.368277 SIGMA = 0.347696

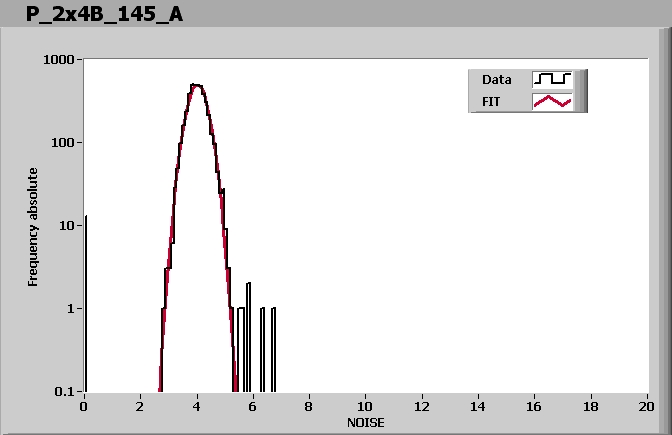

ROC7 NOISE			MEAN = 4.018654 SIGMA = 0.327449

Comment (if any):

End testing time: 12:10 PM
