P_2x4B_142_A

Production testing

Date:3/9/2007

Operator: Cameron McKinney

start testing time:10:27 AM

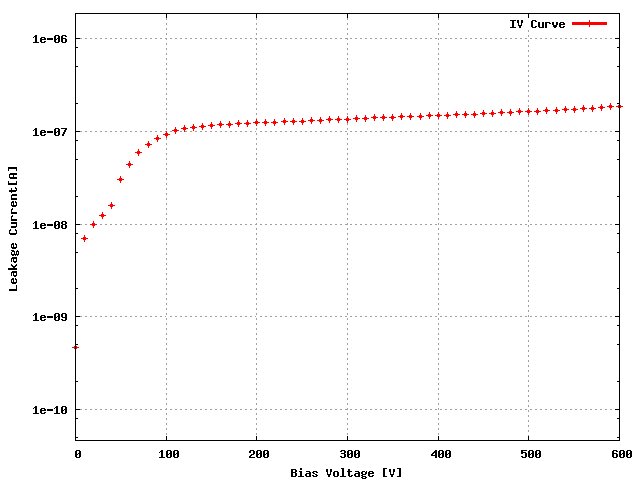

Sensor: S_2x4B_14, Data for leakage current measurement , and plot on overall it is a GOOD sensor
ROCROC waferLabel
ROC0W34_XA4K3PT22A
ROC1W34_XA4K3PT21B
ROC2W34_XA4K3PT21A
ROC3W34_XA4K3PT20D
ROC4W34_XA4K3PT16B
ROC5W34_XA4K3PT16C
ROC6W34_XA4K3PT16D
ROC7W34_XA4K3PT17B

Depletion Voltage is -44 and suggested operational voltage is -84
Ibias_DAC, Ibias_DAC Data 132 134 134 140 150 150 138 124
Vana, VanaData 129 127 140 135 133 135 124 112
CalDelData and plots7796967072848697
VthrCompData and plots7674798273787267
TestDdata ,TestD Plots00001000
LightData ,Light Plots00000000
Pass/Fail TestD GOOD GOOD GOOD GOOD GOOD GOOD GOOD GOOD
Pass/Fail LIGHT GOOD GOOD GOOD GOOD GOOD GOOD GOOD GOOD

Noise MAP

[IMAGE] of

Efficiency MAP

[IMAGE] of

EXTRA DACs for NOISE

VHldDe115135100125130125135155
Vsf140140140140135140130135
VoffsetOp6580959575906565
VIbias_PH1051009595105100100105
ROC0 NOISE[IMAGE] of [IMAGE] of MEAN = 5.552997

SIGMA = 0.426201

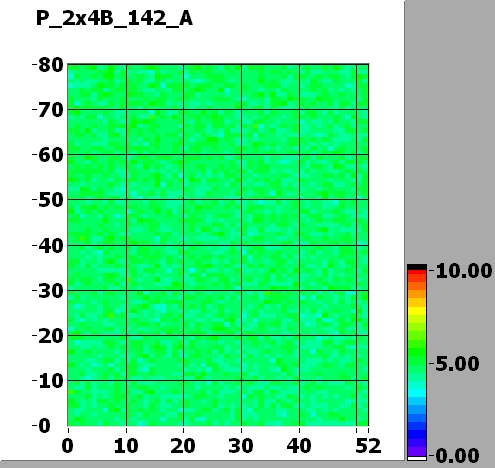

ROC1 NOISE[IMAGE] of [IMAGE] of MEAN = 4.675685

SIGMA = 0.358097
ROC2 NOISE[IMAGE] of [IMAGE] of MEAN = 4.363185

SIGMA = 0.353720

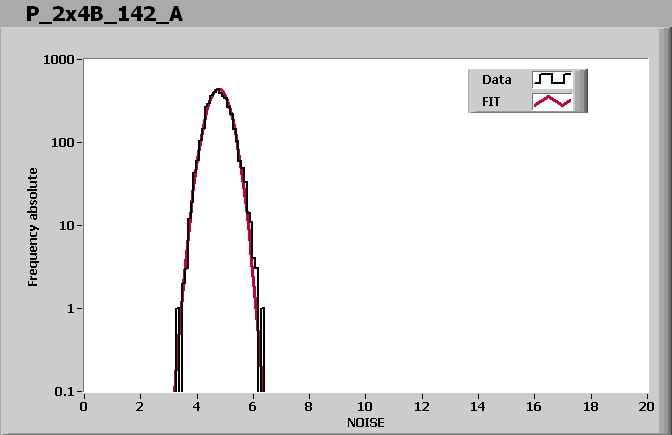

ROC3 NOISE[IMAGE] of [IMAGE] of MEAN = 4.772140

SIGMA = 0.381012

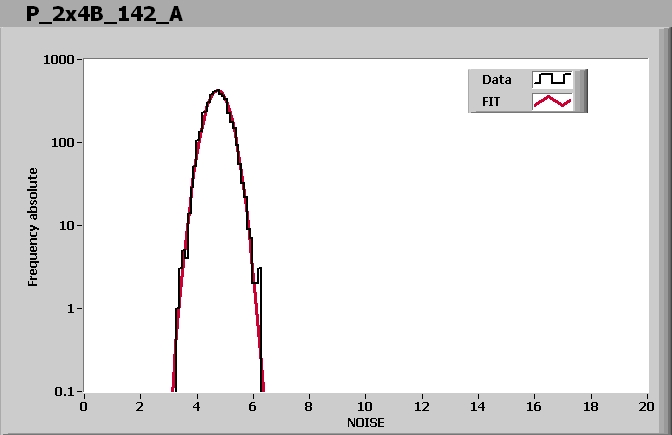

ROC4 NOISE[IMAGE] of [IMAGE] of MEAN = 4.739693

SIGMA = 0.395889

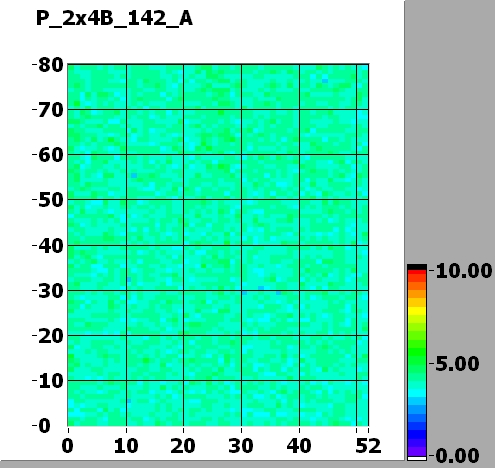

ROC5 NOISE[IMAGE] of [IMAGE] of MEAN = 3.968048

SIGMA = 0.305581
ROC6 NOISE[IMAGE] of [IMAGE] of MEAN = 4.948526

SIGMA = 0.410312

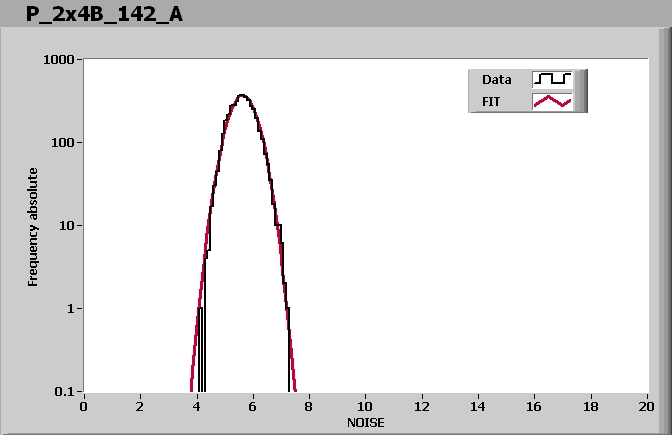

ROC7 NOISE[IMAGE] of [IMAGE] of MEAN = 5.628138

SIGMA = 0.455305

Comment (if any): Good.

This Device have been tested 0Times prior to this one and here are the links to the previous tests:

End testing time: 10:47 AM
