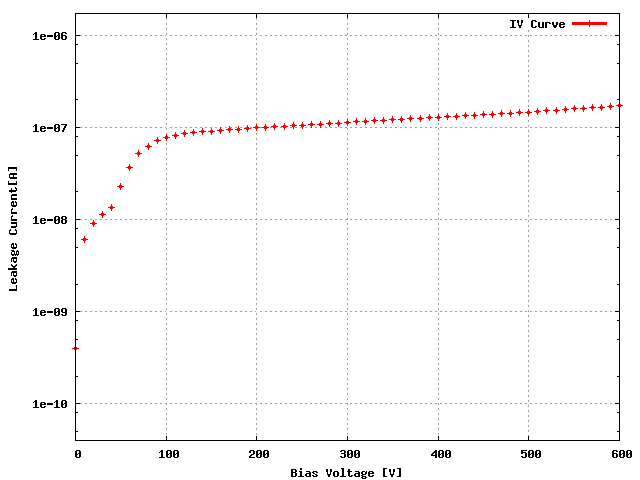

Sensor: S_2x4B_14, Data for leakage current measurement , and plot on overall it is a GOOD sensor
ROC | ROC wafer | Label |
---|---|---|
ROC0 | W36_XD4K3LT | 48C |
ROC1 | W36_XD4K3LT | 48B |
ROC2 | W36_XD4K3LT | 47C |
ROC3 | W36_XD4K3LT | 47B |
ROC4 | W36_XD4K3LT | 54C |
ROC5 | W36_XD4K3LT | 65C |
ROC6 | W36_XD4K3LT | 66A |
ROC7 | W36_XD4K3LT | 67B |
Ibias_DAC, Ibias_DAC Data | 138 | 130 | 144 | 138 | 138 | 140 | 144 | 146 |
Vana, VanaData | 134 | 125 | 147 | 116 | 125 | 120 | 133 | 140 |
CalDelData and plots | 92 | 103 | 65 | 82 | 89 | 96 | 88 | 75 |
VthrCompData and plots | 75 | 69 | 81 | 72 | 76 | 76 | 86 | 93 | Depletion Voltage is -52 and suggested operational voltage is -92
TestDdata ,TestD Plots | 1 | 0 | 0 | 4 | 1 | 0 | 0 | 0 |
LightData ,Light Plots | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
Pass/Fail TestD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD |
Pass/Fail LIGHT | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD |

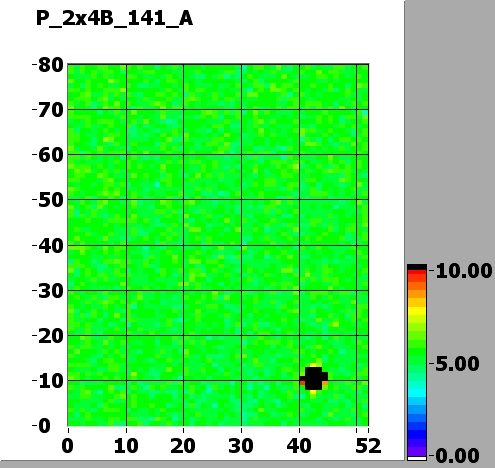

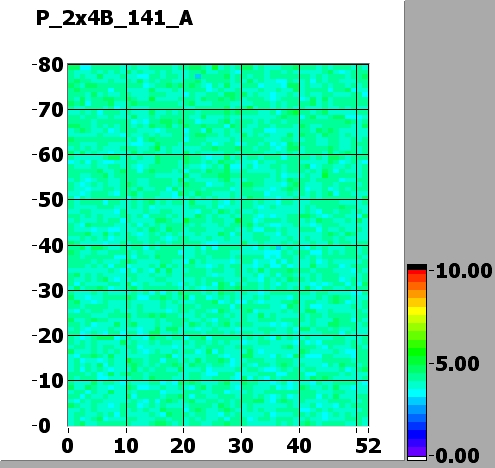

Noise MAP
Efficiency MAP
EXTRA DACs for NOISE
VHldDe | 85 | 135 | 100 | 135 | 165 | 120 | 120 | 125 |
Vsf | 140 | 140 | 145 | 135 | 140 | 140 | 140 | 145 |
VoffsetOp | 80 | 75 | 105 | 60 | 65 | 80 | 80 | 90 |
VIbias_PH | 100 | 100 | 100 | 100 | 100 | 95 | 100 | 100 |
Comment (if any): Good
This Device have been tested 0Times prior to this one and here are the links to the previous tests:End testing time: 12:34 PM
