P_2x4B_125_C-2

Production testing

Date:6/1/2007

Operator: Emily Grace

start testing time:11:22 AM

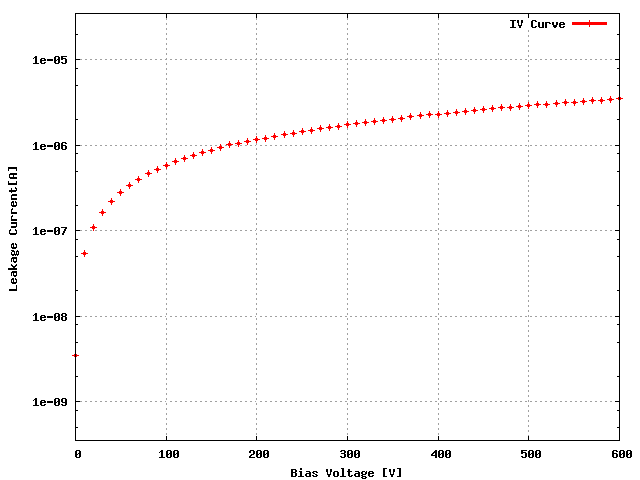

Sensor: S_2x4B_12, Data for leakage current measurement , and plot on overall it is a GOOD sensor
ROCROC waferLabel
ROC0KMNG2DT34C
ROC1KMNG2DT14B
ROC2KMNG2DT34D
ROC3KMNG2DT03B
ROC4KMNG2DT54C
ROC5KMNG2DT14A
ROC6KMNG2DT54A
ROC7KMNG2DT14C

Depletion Voltage is -46 and suggested operational voltage is -86
Ibias_DAC, Ibias_DAC Data 150 158 162 160 172 156 152 154
Vana, VanaData 125 130 126 139 156 144 139 141
CalDelData and plots9075797268737981
VthrCompData and plots7784739094798679
TestDdata ,TestD Plots10021000
LightData ,Light Plots10011000
Pass/Fail TestD GOOD GOOD GOOD GOOD GOOD GOOD GOOD GOOD
Pass/Fail LIGHT GOOD GOOD GOOD GOOD GOOD GOOD GOOD GOOD

Noise MAP at VMAX

[IMAGE] of

Efficiency MAP

[IMAGE] of

EXTRA DACs for NOISE

VHldDe11011510510010010010590
Vsf140140140140150150140140
VoffsetOp85855595110859575
VIbias_PH9510510010010095100100
ROC0 NOISE[IMAGE] of [IMAGE] of MEAN = 4.165915

SIGMA = 0.325141
ROC1 NOISE[IMAGE] of [IMAGE] of MEAN = 4.439993

SIGMA = 0.350610

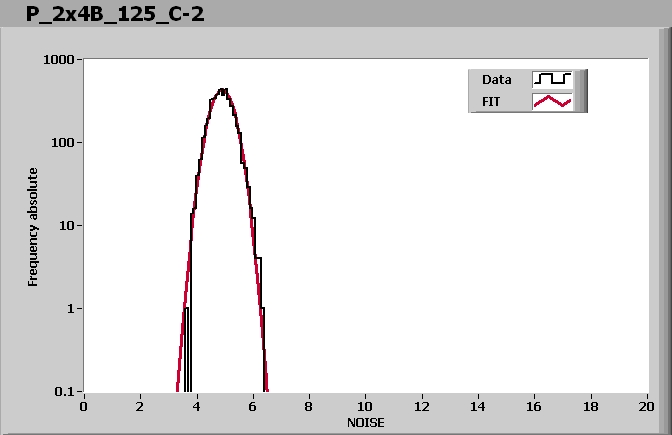

ROC2 NOISE[IMAGE] of [IMAGE] of MEAN = 4.896225

SIGMA = 0.387280
ROC3 NOISE[IMAGE] of [IMAGE] of MEAN = 4.246468

SIGMA = 0.338750
ROC4 NOISE[IMAGE] of [IMAGE] of MEAN = 3.768299

SIGMA = 0.301829

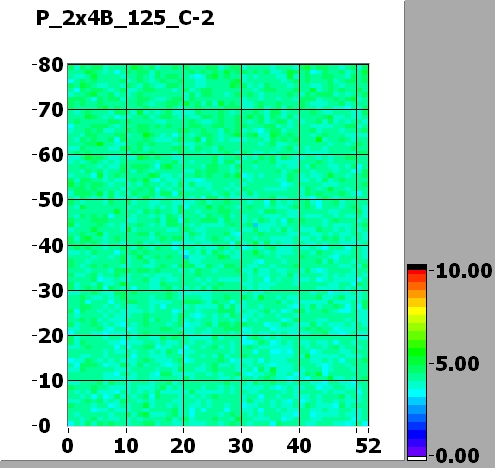

ROC5 NOISE[IMAGE] of [IMAGE] of MEAN = 4.112461

SIGMA = 0.330786
ROC6 NOISE[IMAGE] of [IMAGE] of MEAN = 4.282659

SIGMA = 0.333293
ROC7 NOISE[IMAGE] of [IMAGE] of MEAN = 4.595732

SIGMA = 0.398159

Comment (if any):

This Device have been tested 2Times prior to this one and here are the links to the previous tests:

P_2x4B_125_C-1.html,

P_2x4B_125_C.html,

End testing time: 11:48 AM
