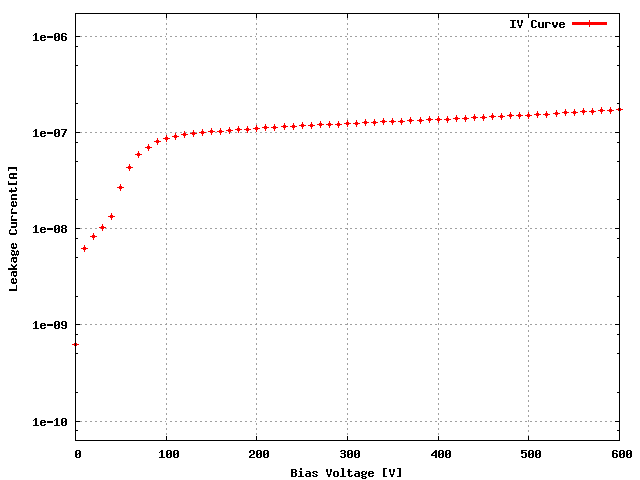

Sensor: S_2x4B_12, Data for leakage current measurement , and plot on overall it is a GOOD sensor
ROC | ROC wafer | Label |
---|---|---|
ROC0 | W35_XH4K3HT | 65D |
ROC1 | W35_XH4K3HT | 64D |
ROC2 | W35_XH4K3HT | 64C |
ROC3 | W35_XH4K3HT | 64B |
ROC4 | W36_XD4K3LT | 25B |
ROC5 | W36_XD4K3LT | 25C |
ROC6 | W36_XD4K3LT | 25D |
ROC7 | W36_XD4K3LT | 26A |
Ibias_DAC, Ibias_DAC Data | 124 | 140 | 144 | 130 | 146 | 144 | 126 | 140 |
Vana, VanaData | 124 | 127 | 128 | 126 | 145 | 130 | 127 | 131 |
CalDelData and plots | 77 | 90 | 85 | 97 | 81 | 100 | 84 | 87 |
VthrCompData and plots | 73 | 71 | 76 | 71 | 85 | 72 | 71 | 82 | Depletion Voltage is -48 and suggested operational voltage is -88
TestDdata ,TestD Plots | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1 |
LightData ,Light Plots | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
Pass/Fail TestD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD |
Pass/Fail LIGHT | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD |

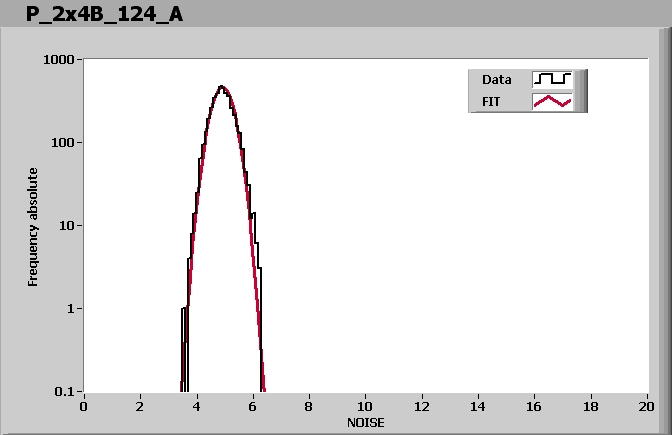

Noise MAP
Efficiency MAP
EXTRA DACs for NOISE
VHldDe | 125 | 120 | 110 | 125 | 105 | 125 | 135 | 115 |
Vsf | 135 | 130 | 140 | 140 | 145 | 145 | 140 | 140 |
VoffsetOp | 60 | 80 | 75 | 70 | 95 | 85 | 70 | 110 |
VIbias_PH | 105 | 105 | 100 | 105 | 100 | 100 | 100 | 105 |
Comment (if any): Good
This Device have been tested 0Times prior to this one and here are the links to the previous tests:End testing time: 1:09 PM
