P_2x4B_123

P_2x4B_123_A

Parts committed by Bolla Gino on date 11/8/2007

Part	ID
BBM	BBM_123-2x4B
VHDI	2x4_724

ROC ROC wafer Label

ROC0 W47_DXLQF5T 04B

ROC1 W47_DXLQF5T 04A

ROC2 W47_DXLQF5T 03D

ROC3 W47_DXLQF5T 18B

ROC4 W55_D3LQE4T 68D

ROC5 W55_D3LQE4T 51A

ROC6 W55_D3LQE4T 51B

ROC7 W55_D3LQE4T 51C

ROC	ROC wafer	Label
ROC0	W47_DXLQF5T	04B
ROC1	W47_DXLQF5T	04A
ROC2	W47_DXLQF5T	03D
ROC3	W47_DXLQF5T	18B
ROC4	W55_D3LQE4T	68D
ROC5	W55_D3LQE4T	51A
ROC6	W55_D3LQE4T	51B
ROC7	W55_D3LQE4T	51C

Inspected by Lockwood Gale on date 12/14/2007

LR_dev 0.088

LL_dev 0.055

PLAQUETTE GLUED with HALF PRESSURE

FINAL COMMENT by Lockwood Gale

Force used to join BBM to VHDI = 2.5 kg per ROC. No assembly problems. No wirebonding problems.

PLAQUETTE made READY for ENCAPSULATION on 12/14/2007 by Lockwood Gale

PLAQUETTE encapsulated on 12/17/2007 by Ozhan Koybasi

PLAQUETTE made READY for testing on 12/17/2007 by Ozhan Koybasi

P_2x4B_123_Aon 12/17/2007 1:34 PM

PLAQUETTE TESTED on 2007-12-17 by Ozhan Koybasi

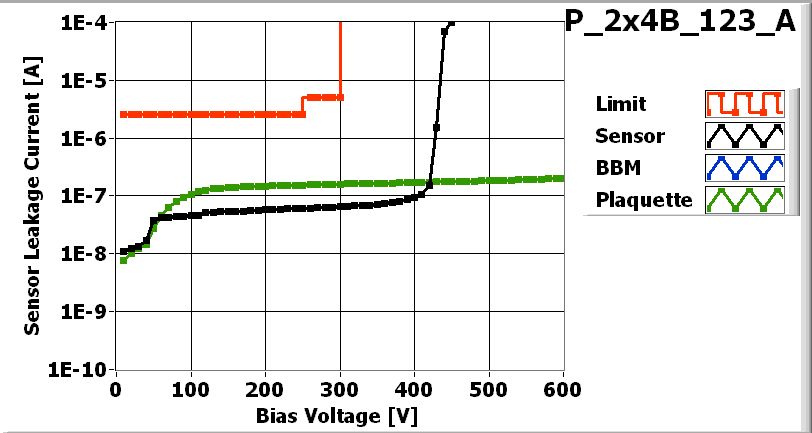

IV_XML-File

Maximum Voltage 600 V

LASER_XML-File

Depletion Voltage 46 V

Operational Voltage 86 V

ROC	ROC0	ROC1	ROC2	ROC3	ROC4	ROC5	ROC6	ROC7
Ibias_DAC	144	154	160	170	148	150	154	156
Vana	137	145	166	148	155	147	142	138
Cal_Del	93	91	68	74	94	91	102	93
Vthrs_Comp	72	81	90	87	85	92	80	79
Unbumped	0	0	0	0	0	0	0	0
Dead	0	0	0	0	0	0	1	9
Noisy	0	0	0	0	0	0	0	0
Undecoded	0	0	0	0	0	0	0	0
Total BAD	0	0	0	0	0	0	1	9

ASSEMBLY_XML-File	SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File

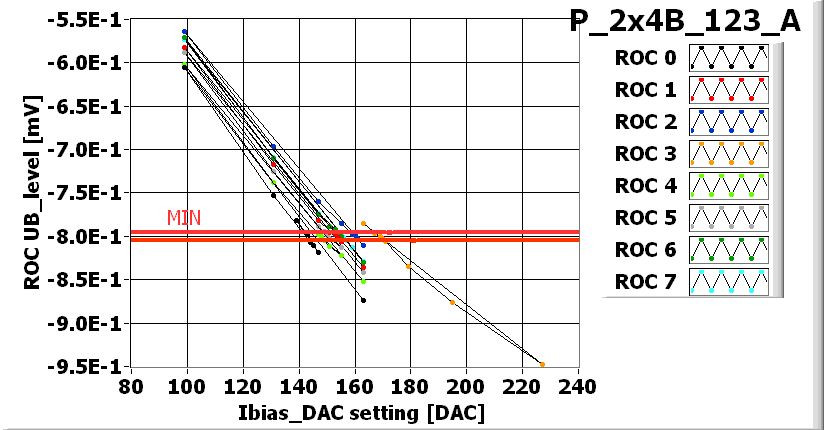

	I_BIAS_DAC_XML-File
	VANA_XML-File
	DEAD_XML-File
	NOISY_XML-File
	UNDECODED_XML-File
	LIGHT_XML-File

EXTRA DACs for NOISE

VHldDe	105	90	105	105	90	95	105	100
Vsf	140	145	160	160	160	145	140	145
VoffsetOp	90	85	120	125	100	100	90	90
VIbias_PH	95	105	105	100	100	100	95	95

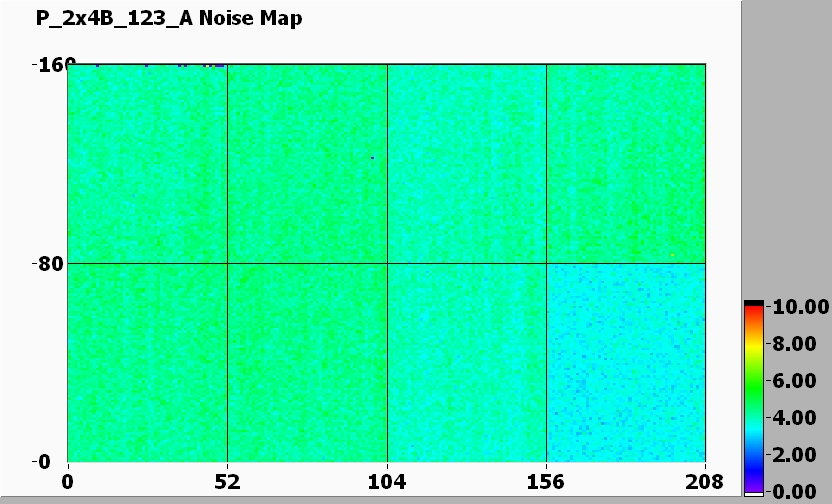

Noise MAP at VMAX

Efficiency MAP

Noise MAP at -200 V

Efficiency MAP

PLAQUETTE READY TO BE SHIPPED

Shipped on date 2007-12-18
