P_2x4B_122_C-1

Production testing

Date:6/5/2007

Operator: Emily Grace

start testing time:10:13 AM

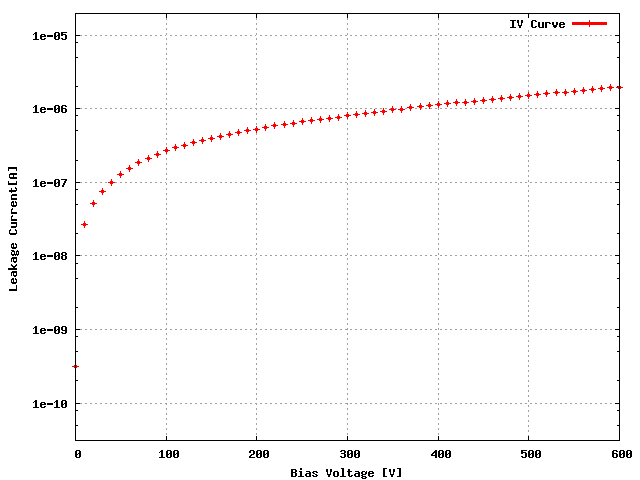

Sensor: S_2x4B_12, Data for leakage current measurement , and plot on overall it is a GOOD sensor
ROCROC waferLabel
ROC0KMNG2DT23C
ROC1KMNG2DT23A
ROC2KMNG2DT13C
ROC3KMNG2DT13A
ROC4KMNG2DT22D
ROC5KMNG2DT13B
ROC6KMNG2DT53C
ROC7KMNG2DT62A

Depletion Voltage is -44 and suggested operational voltage is -84
Ibias_DAC, Ibias_DAC Data 154 160 164 144 150 160 166 140
Vana, VanaData 145 129 126 133 135 138 143 122
CalDelData and plots6994778180837884
VthrCompData and plots8778848074779175
TestDdata ,TestD Plots30000001
LightData ,Light Plots3000001119
Pass/Fail TestD GOOD GOOD GOOD GOOD GOOD GOOD GOOD GOOD
Pass/Fail LIGHT GOOD GOOD GOOD GOOD GOOD GOOD GOOD BAD

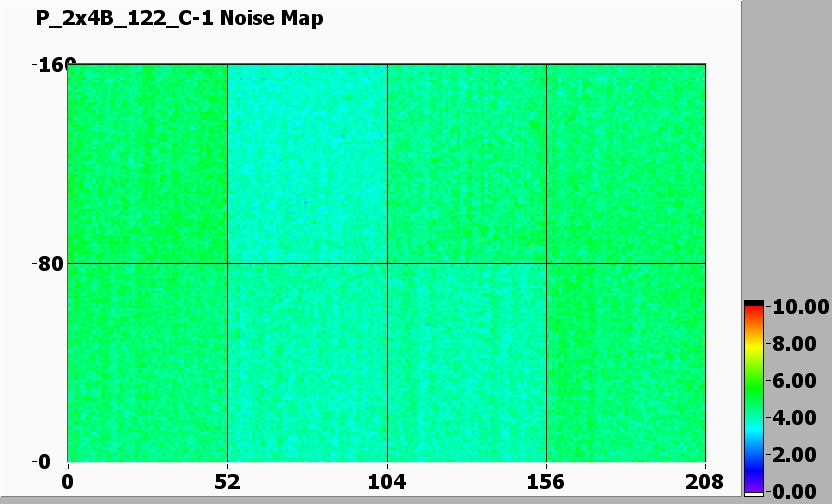

Noise MAP at VMAX

[IMAGE] of

Efficiency MAP

[IMAGE] of

EXTRA DACs for NOISE

VHldDe901051201159595100135
Vsf145140140140140140145135
VoffsetOp85909580958011570
VIbias_PH1051001059510010595100

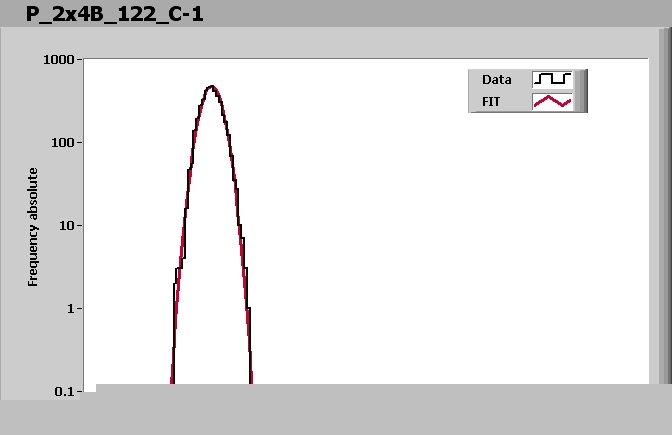

ROC0 NOISE[IMAGE] of [IMAGE] of MEAN = 4.520231

SIGMA = 0.353169
ROC1 NOISE[IMAGE] of [IMAGE] of MEAN = 4.017573

SIGMA = 0.334435
ROC2 NOISE[IMAGE] of [IMAGE] of MEAN = 4.053008

SIGMA = 0.326809
ROC3 NOISE[IMAGE] of [IMAGE] of MEAN = 4.566816

SIGMA = 0.366350

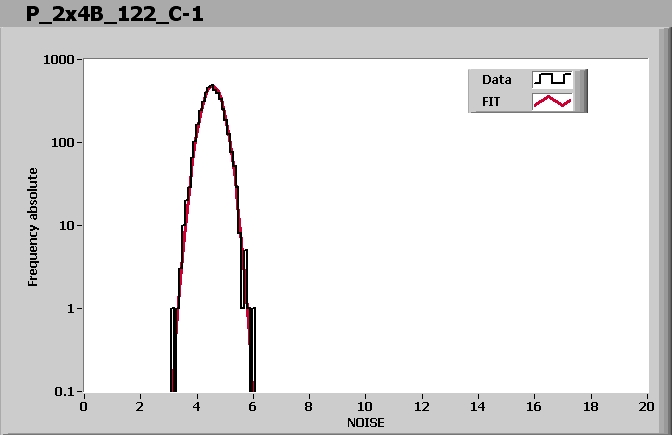

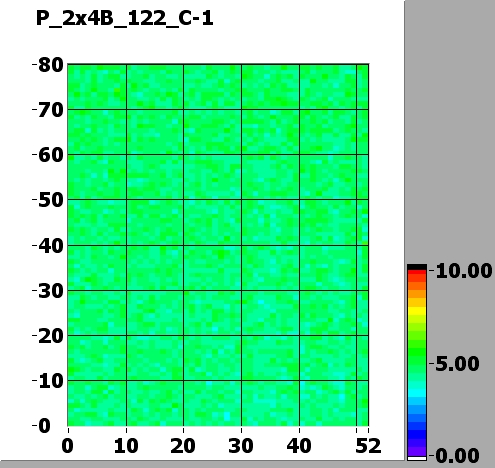

ROC4 NOISE[IMAGE] of [IMAGE] of MEAN = 4.556761

SIGMA = 0.348324
ROC5 NOISE[IMAGE] of [IMAGE] of MEAN = 4.392984

SIGMA = 0.391086

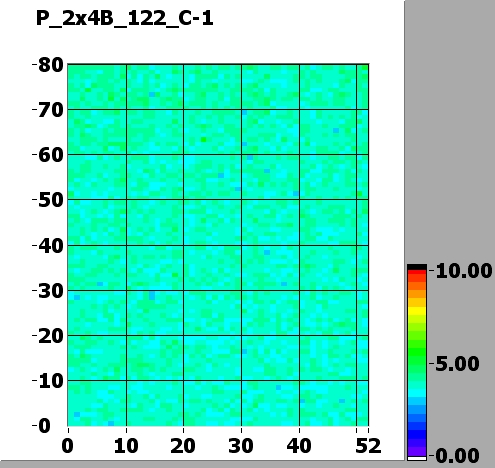

ROC6 NOISE[IMAGE] of [IMAGE] of MEAN = 3.819243

SIGMA = 0.304474
ROC7 NOISE[IMAGE] of [IMAGE] of MEAN = 4.700653

SIGMA = 0.374413

Comment (if any):

This Device have been tested 1Times prior to this one and here are the links to the previous tests:

P_2x4B_122_C.html,

End testing time: 10:39 AM
