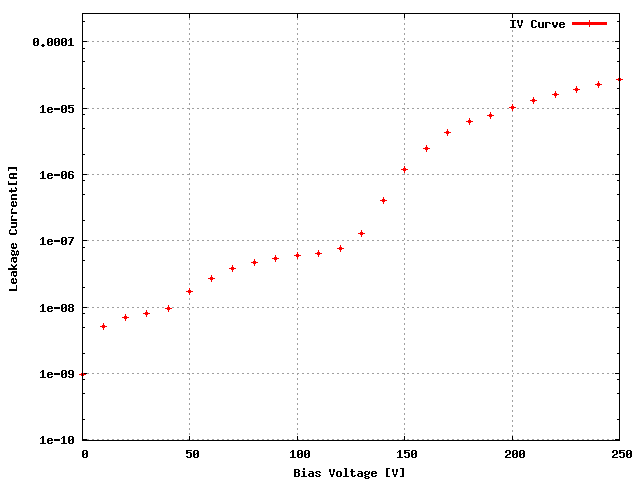

Sensor: S_2x4B_10, Data for leakage current measurement , and plot on overall it is a BAD sensor
ROC | ROC wafer | Label |
---|---|---|
ROC0 | W13_XX4JPAT | 21C |
ROC1 | W13_XX4JPAT | 21B |
ROC2 | W13_XX4JPAT | 21A |
ROC3 | W13_XX4JPAT | 20B |
ROC4 | W13_XX4JPAT | 22D |
ROC5 | W13_XX4JPAT | 23B |
ROC6 | W13_XX4JPAT | 23C |
ROC7 | W13_XX4JPAT | 23D |
Ibias_DAC, Ibias_DAC Data | 134 | 132 | 130 | 154 | 142 | 130 | 126 | 130 |
Vana, VanaData | 127 | 127 | 116 | 131 | 124 | 129 | 123 | 127 |
CalDelData and plots | 79 | 65 | 77 | 74 | 76 | 71 | 74 | 87 |
VthrCompData and plots | 73 | 71 | 78 | 68 | 68 | 82 | 69 | 77 | Depletion Voltage is -50 and suggested operational voltage is -90
TestDdata ,TestD Plots | 0 | 1 | 0 | 0 | 0 | 0 | 1 | 1 |
LightData ,Light Plots | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1 |
Pass/Fail TestD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD |
Pass/Fail LIGHT | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD |
Comment (if any): GOOD
This Device have been tested 0Times prior to this one and here are the links to the previous tests:End testing time: 1:39 PM
