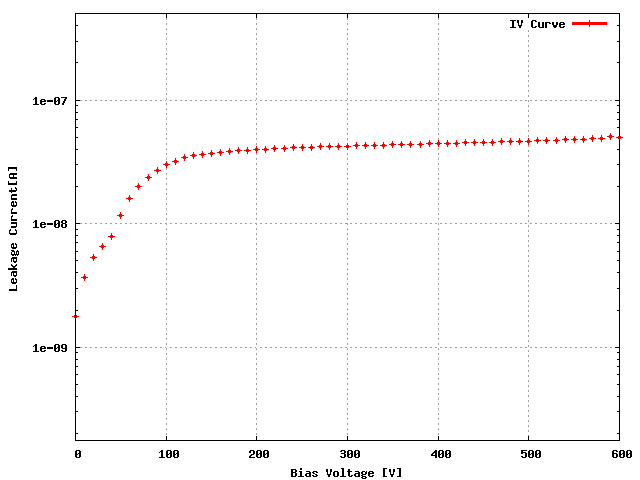

Sensor: S_2x4B_10, Data for leakage current measurement , and plot on overall it is a GOOD sensor
ROC | ROC wafer | Label |
---|---|---|
ROC0 | XW4KFXT | 65C |
ROC1 | XW4KFXT | 64D |
ROC2 | XW4KFXT | 68C |
ROC3 | XW4KFXT | 61A |
ROC4 | XW4KFXT | 58B |
ROC5 | XW4KFXT | 57A |
ROC6 | XW4KFXT | 56A |
ROC7 | XW4KFXT | 54A |
Ibias_DAC, Ibias_DAC Data | 140 | 130 | 150 | 130 | 150 | 128 | 132 | 134 |
Vana, VanaData | 114 | 124 | 145 | 141 | 143 | 138 | 124 | 117 |
CalDelData and plots | 90 | 80 | 78 | 89 | 80 | 90 | 87 | 75 |
VthrCompData and plots | 70 | 78 | 88 | 78 | 92 | 75 | 70 | 73 | Depletion Voltage is -50 and suggested operational voltage is -90
TestDdata ,TestD Plots | 1 | 29 | 0 | 0 | 1 | 0 | 0 | 1 |
LightData ,Light Plots | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 1 |
Pass/Fail TestD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD |
Pass/Fail LIGHT | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD |

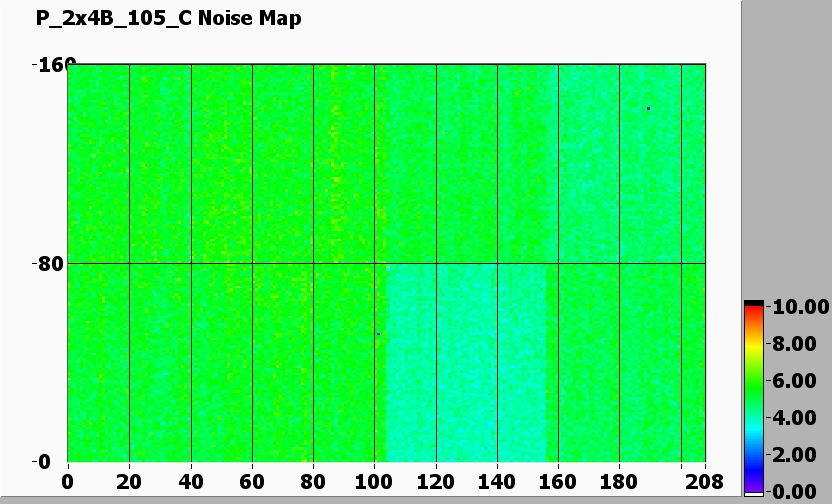

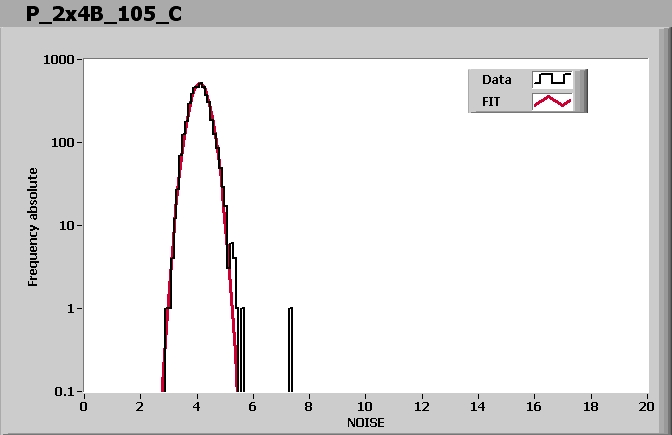

Noise MAP

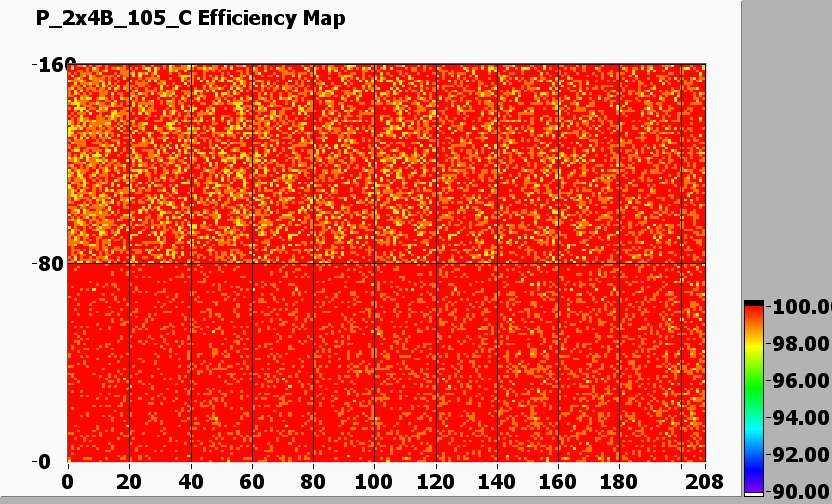

Efficiency MAP
EXTRA DACs for NOISE
VHldDe | 160 | 155 | 90 | 95 | 120 | 105 | 130 | 160 |
Vsf | 130 | 130 | 140 | 145 | 140 | 140 | 140 | 130 |
VoffsetOp | 65 | 55 | 120 | 85 | 95 | 85 | 60 | 65 |
VIbias_PH | 100 | 100 | 100 | 100 | 100 | 95 | 100 | 100 |
Comment (if any): ROC1 has 29 dead pixels.
This Device have been tested 0Times prior to this one and here are the links to the previous tests:End testing time: 10:04 AM
