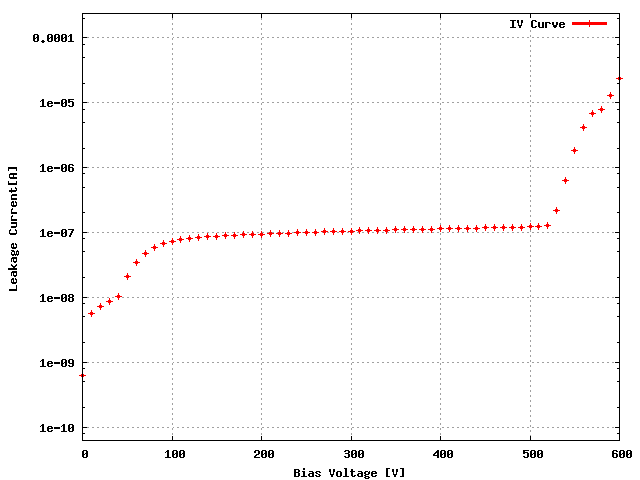

Sensor: S_2x4B_10, Data for leakage current measurement , and plot on overall it is a GOOD sensor
ROC | ROC wafer | Label |
---|---|---|
ROC0 | W33_XC4K5LT | 40D |
ROC1 | W33_XC4K5LT | 40A |
ROC2 | W33_XC4K5LT | 58D |
ROC3 | W33_XC4K5LT | 58B |
ROC4 | W33_XC4K5LT | 35C |
ROC5 | W33_XC4K5LT | 36A |
ROC6 | W33_XC4K5LT | 36B |
ROC7 | W33_XC4K5LT | 36C |
Ibias_DAC, Ibias_DAC Data | 124 | 132 | 144 | 146 | 140 | 132 | 132 | 148 |
Vana, VanaData | 123 | 126 | 126 | 144 | 139 | 131 | 122 | 127 |
CalDelData and plots | 88 | 75 | 91 | 80 | 87 | 83 | 90 | 97 |
VthrCompData and plots | 64 | 76 | 84 | 88 | 74 | 73 | 64 | 73 | Depletion Voltage is -52 and suggested operational voltage is -92
TestDdata ,TestD Plots | 0 | 0 | 0 | 0 | 1 | 0 | 0 | 0 |
LightData ,Light Plots | 0 | 0 | 0 | 1 | 0 | 0 | 0 | 0 |
Pass/Fail TestD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD |
Pass/Fail LIGHT | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD |

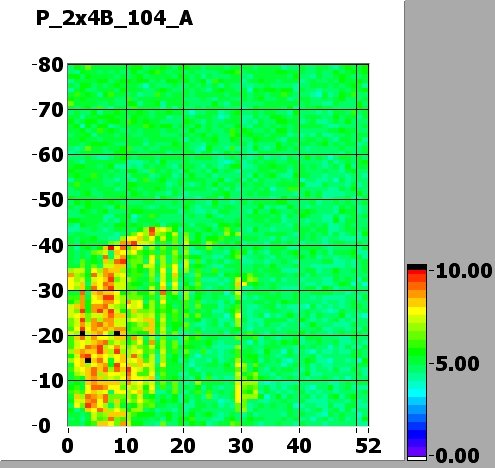

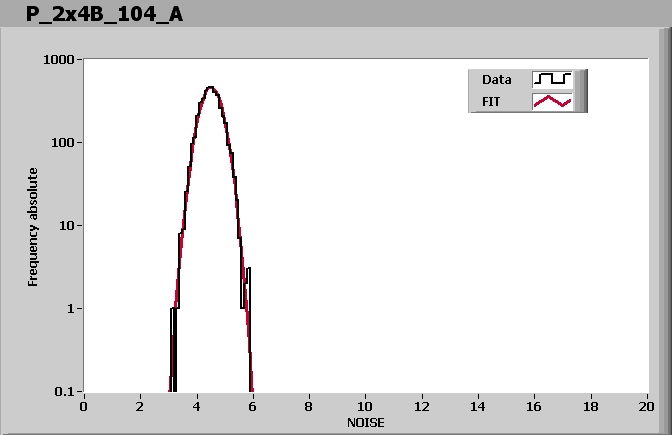

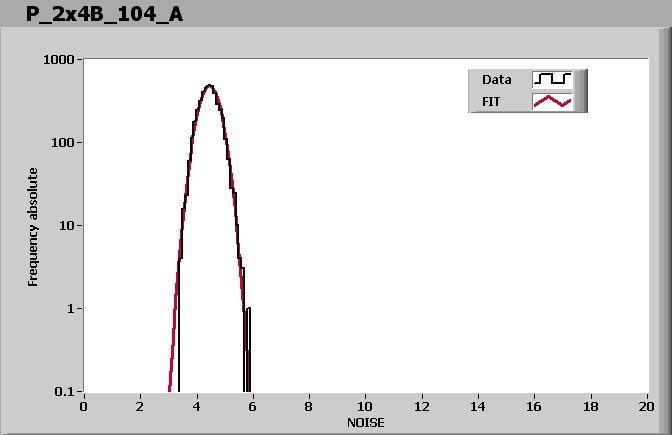

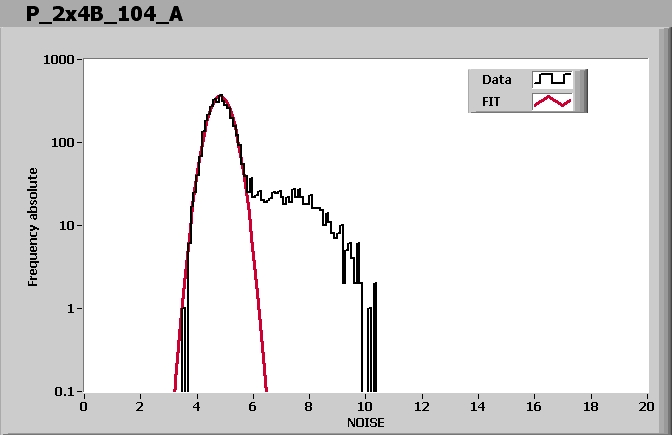

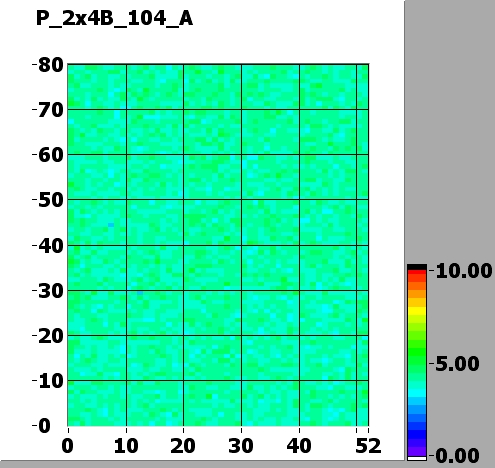

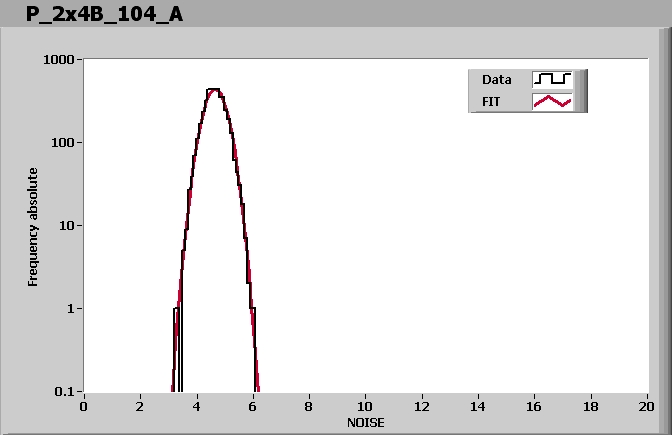

Noise MAP
Efficiency MAP
EXTRA DACs for NOISE
VHldDe | 125 | 120 | 130 | 95 | 110 | 120 | 130 | 115 |
Vsf | 140 | 140 | 140 | 150 | 140 | 140 | 140 | 135 |
VoffsetOp | 60 | 85 | 90 | 130 | 80 | 80 | 75 | 80 |
VIbias_PH | 100 | 100 | 105 | 100 | 95 | 100 | 95 | 105 |
Comment (if any):
This Device have been tested 0Times prior to this one and here are the links to the previous tests:End testing time: 3:06 PM
