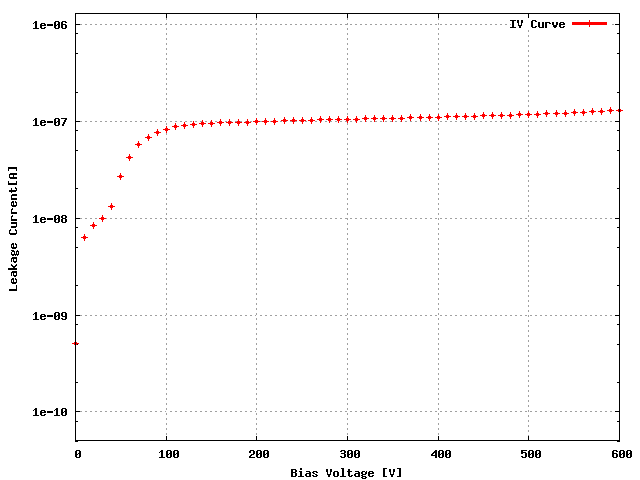

Sensor: S_2x4B_10, Data for leakage current measurement , and plot on overall it is a GOOD sensor
ROC | ROC wafer | Label |
---|---|---|
ROC0 | W33_XC4K5LT | 30B |
ROC1 | W33_XC4K5LT | 30A |
ROC2 | W33_XC4K5LT | 49D |
ROC3 | W33_XC4K5LT | 49C |
ROC4 | W33_XC4K5LT | 22D |
ROC5 | W33_XC4K5LT | 23A |
ROC6 | W33_XC4K5LT | 23B |
ROC7 | W33_XC4K5LT | 23C |
Ibias_DAC, Ibias_DAC Data | 126 | 126 | 142 | 146 | 144 | 142 | 134 | 134 |
Vana, VanaData | 109 | 133 | 123 | 139 | 144 | 143 | 129 | 130 |
CalDelData and plots | 98 | 74 | 70 | 81 | 64 | 73 | 85 | 82 |
VthrCompData and plots | 59 | 68 | 85 | 86 | 89 | 79 | 74 | 82 | Depletion Voltage is -50 and suggested operational voltage is -90
TestDdata ,TestD Plots | 0 | 0 | 0 | 0 | 0 | 0 | 1 | 0 |
LightData ,Light Plots | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
Pass/Fail TestD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD |
Pass/Fail LIGHT | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD |

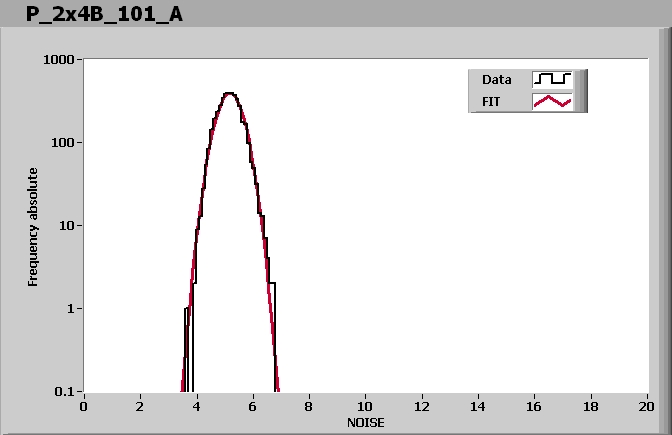

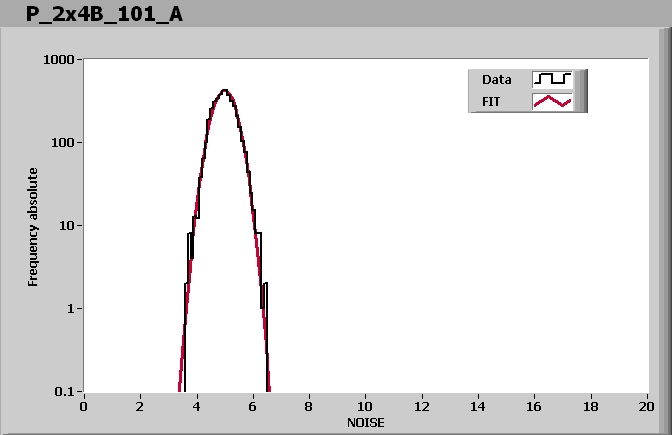

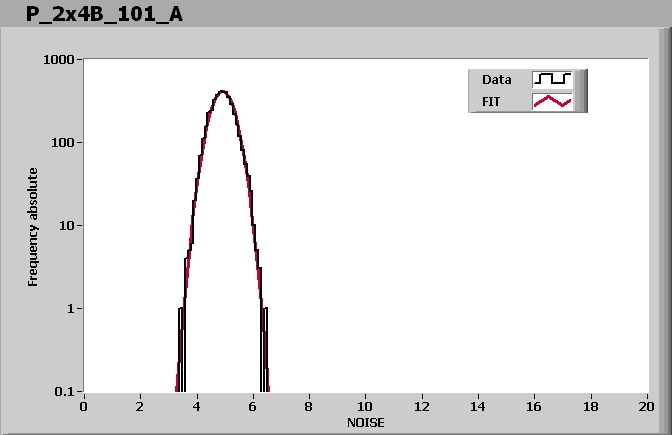

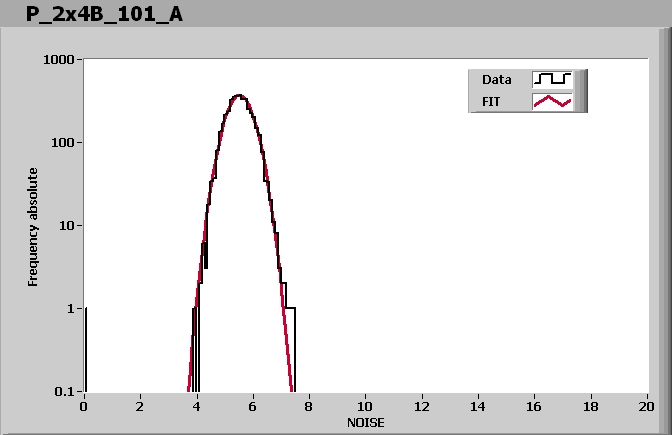

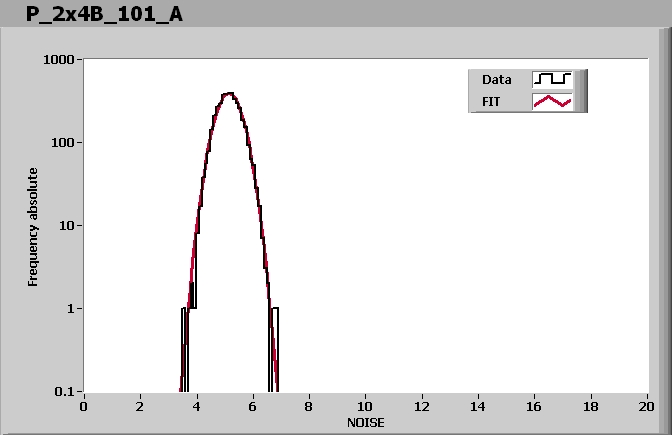

Noise MAP
Efficiency MAP
EXTRA DACs for NOISE
VHldDe | 185 | 95 | 115 | 120 | 120 | 85 | 130 | 130 |
Vsf | 140 | 140 | 140 | 140 | 140 | 140 | 140 | 140 |
VoffsetOp | 55 | 75 | 90 | 105 | 90 | 95 | 75 | 75 |
VIbias_PH | 100 | 100 | 100 | 100 | 105 | 100 | 105 | 105 |
Comment (if any): Good
This Device have been tested 0Times prior to this one and here are the links to the previous tests:End testing time: 12:45 PM
