P_2x4B_098_A

Parts committed by Bolla Gino on date 9/15/2006

Part	ID
BBM	BBM_098-2x4B
VHDI	2x4_553

ROC	ROC wafer	Label
ROC0	XX4JPAT	46D
ROC1	XX4JPAT	47A
ROC2	XX4JPAT	47B
ROC3	XX4JPAT	47D
ROC4	X74JP0T	24A
ROC5	X74JP0T	24B
ROC6	X74JP0T	24C
ROC7	X74JP0T	24D

This plaquette has been reworked. Old Data available at P_2x4B_098_A

Inspected by Graves Durand on date 9/15/2006

Inspected by Graves Durand on date 9/15/2006

Inspected by Graves Durand on date 9/15/2006

Inspected by Graves Durand on date 9/15/2006

Inspected by Graves Durand on date 9/15/2006

LR_dev	0.030
LL_dev	0.007

FINAL COMMENT by Graves Durand

No assembly problems. No wirebonding problems.

PLAQUETTE made READY for testing on 9/15/2006 by Graves Durand

PLAQUETTE TESTED on 2006-09-15 by Petra Merkel

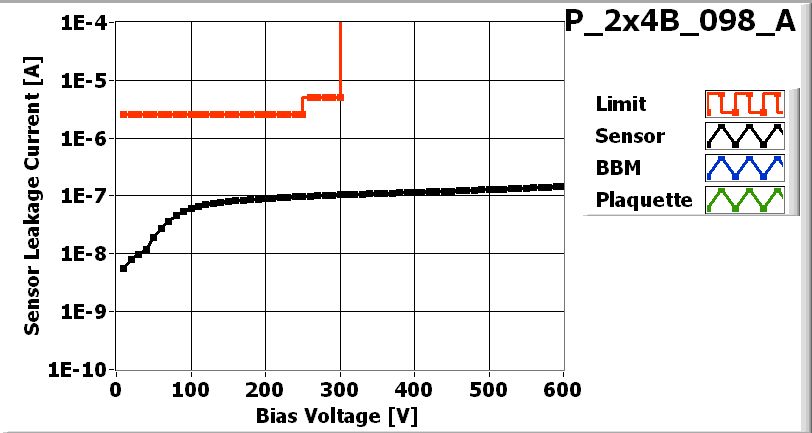

	IV_XML-File Maximum Voltage 600 V

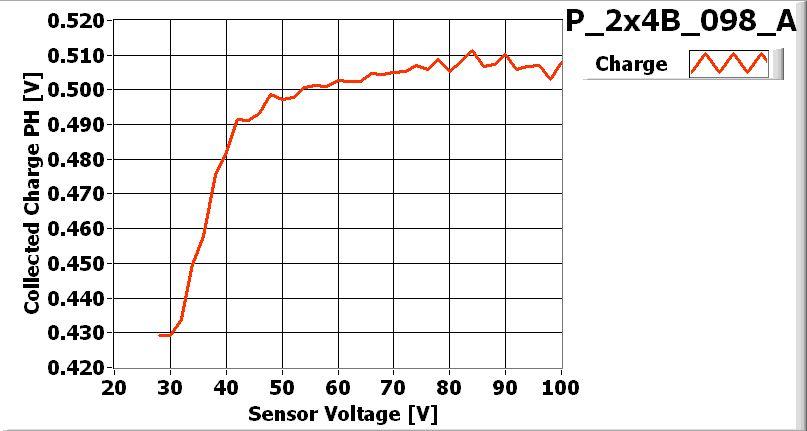

	LASER_XML-File Depletion Voltage 46 V Operational Voltage 86 V

ROC	ROC0	ROC1	ROC2	ROC3	ROC4	ROC5	ROC6	ROC7

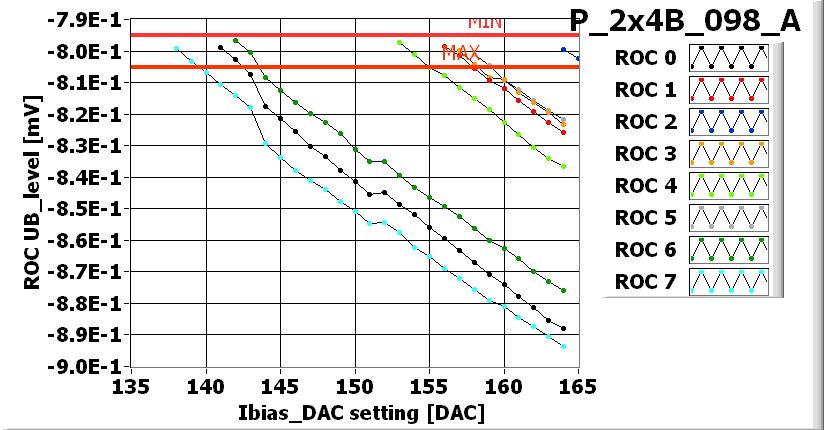

Ibias_DAC	141	156	165	157	153	158	142	138

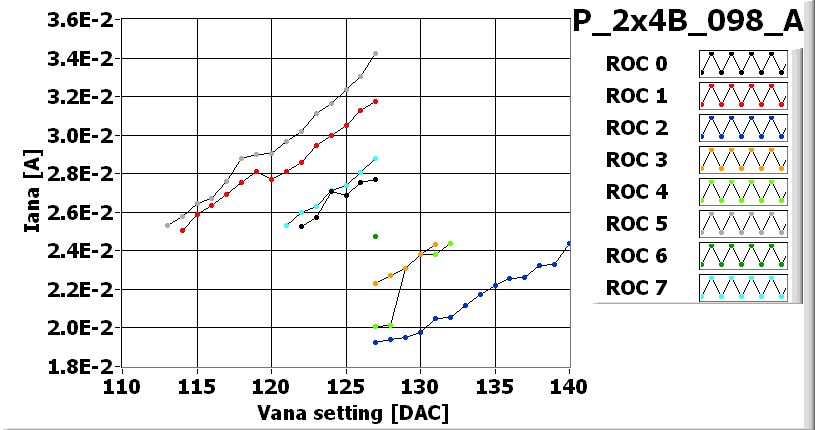

Vana	122	114	140	131	132	113	127	121
Cal_Del	77	81	74	85	68	72	91	84
Vthrs_Comp	67	65	78	74	80	77	66	75
Unbumped	0	0	0	0	0	0	0	0
Dead	0	0	0	0	0	0	0	0
Noisy	0	0	0	0	0	0	0	0
Undecoded	0	0	0	0	0	0	0	0
Total BAD	0	0	0	0	0	0	0	0

ASSEMBLY_XML-File	SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File
	I_BIAS_DAC_XML-File
	VANA_XML-File
	DEAD_XML-File
	NOISY_XML-File
	UNDECODED_XML-File
	LIGHT_XML-File

PLAQUETTE READY FOR SHIPPING

Shipped on date 2006-11-13

Plaquette assigned to panel P3R_073
