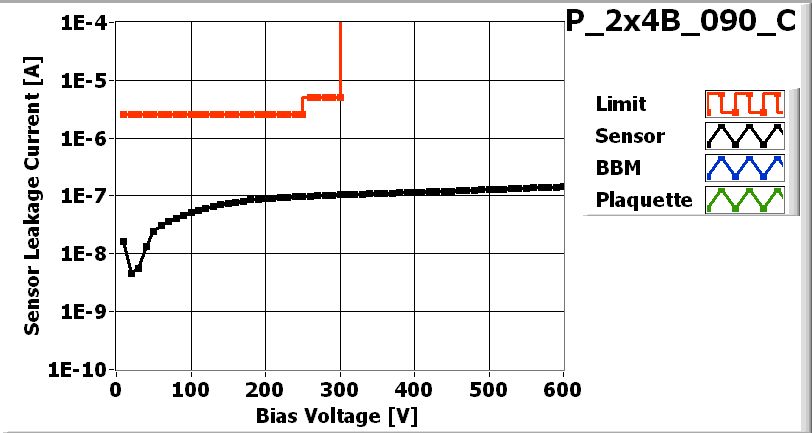

![[IMAGE] of](P_2x4B_090_C_IV.jpg)
| IV_XML-File |
| Maximum Voltage 600 V |
![[IMAGE] of](P_2x4B_090_C_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 46 V |
| Operational Voltage 86 V |
Parts committed by Bolla Gino on date CCYY-MM-DD
| Part | ID |
|---|---|
| BBM | BBM_090-2x4B |
| VHDI | 2x4_538 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | XK4K3ET | 25A |
| ROC1 | XK4K3ET | 24B |
| ROC2 | XK4K3ET | 24A |
| ROC3 | XK4K3ET | 23B |
| ROC4 | XK4K3ET | 21B |
| ROC5 | XK4K3ET | 22A |
| ROC6 | XK4K3ET | 22B |
| ROC7 | XK4K3ET | 23A |
Inspected by Arndt Kirk on date 2006-08-18
| LR_dev | 0.039 |
| LL_dev | 0.039 |
| FINAL COMMENT by Arndt Kirk | No problem assembly. No wirebonding problem |
PLAQUETTE made READY for testing on 2006-08-18 by Arndt Kirk
PLAQUETTE TESTED on 2006-08-21 by Isaac Childres
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | ROC6 | ROC7 | |
| Ibias_DAC | 155 | 155 | 147 | 159 | 159 | 174 | 176 | 154 | |
| Vana | 127 | 115 | 134 | 128 | 130 | 127 | 127 | 127 | |
| Cal_Del | 78 | 91 | 95 | 73 | 96 | 70 | 84 | 87 | |
| Vthrs_Comp | 73 | 79 | 75 | 62 | 76 | 87 | 67 | 73 | |
| Unbumped | 0 | 0 | 1 | 1 | 0 | 0 | 0 | 1 | |
| Dead | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 1 | 0 | 0 | 0 | |
| Total BAD | 0 | 0 | 1 | 1 | 1 | 0 | 0 | 1 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

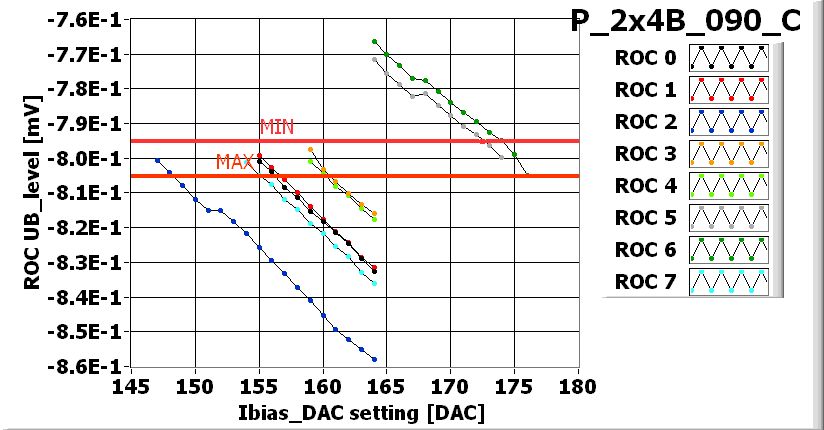

![[IMAGE] of](P_2x4B_090_C_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

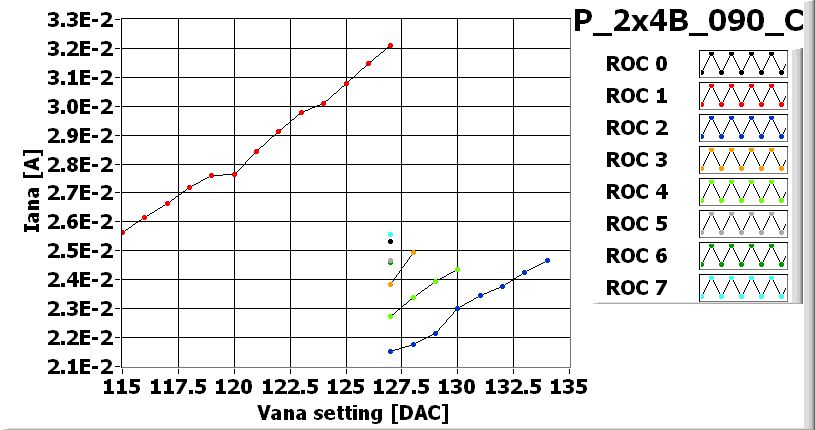

![[IMAGE] of](P_2x4B_090_C_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_2x4B_090_CDead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x4B_090_CNoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x4B_090_CUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x4B_090_Cno-bump-light.jpg) |
LIGHT_XML-File |
PLAQUETTE READY FOR SHIPPING
Shipped on date 2006-08-22
