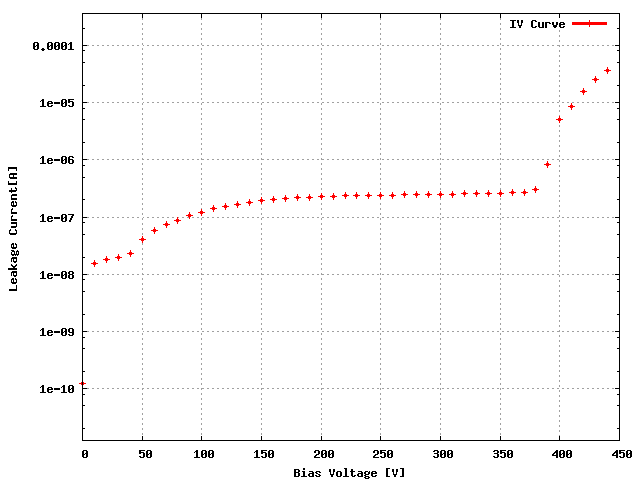

Sensor: S_2x4B_08, Data for leakage current measurement , and plot on overall it is a GOOD sensor
ROC | ROC wafer | Label |
---|---|---|
ROC0 | W32_XA4K5NT | 40B |
ROC1 | W32_XA4K5NT | 40A |
ROC2 | W32_XA4K5NT | 58D |
ROC3 | W32_XA4K5NT | 58B |
ROC4 | W32_XA4K5NT | 37D |
ROC5 | W32_XA4K5NT | 38A |
ROC6 | W32_XA4K5NT | 39A |
ROC7 | W32_XA4K5NT | 39C |
Ibias_DAC, Ibias_DAC Data | 126 | 132 | 146 | 158 | 142 | 138 | 126 | 146 |
Vana, VanaData | 120 | 139 | 137 | 147 | 134 | 133 | 131 | 131 |
CalDelData and plots | 72 | 85 | 83 | 71 | 78 | 81 | 78 | 79 |
VthrCompData and plots | 74 | 79 | 73 | 86 | 67 | 74 | 75 | 83 | FIXED (not measured) Depletion Voltage is -50 and FIXED (not measured) suggested operational voltage is -90
TestDdata ,TestD Plots | 0 | 1 | 0 | 0 | 0 | 0 | 0 | 0 |
LightData ,Light Plots | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
Pass/Fail TestD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD |
Pass/Fail LIGHT | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD |
Comment (if any): GOOD
This Device have been tested 8Times prior to this one and here are the links to the previous tests:End testing time: 10:43 AM
