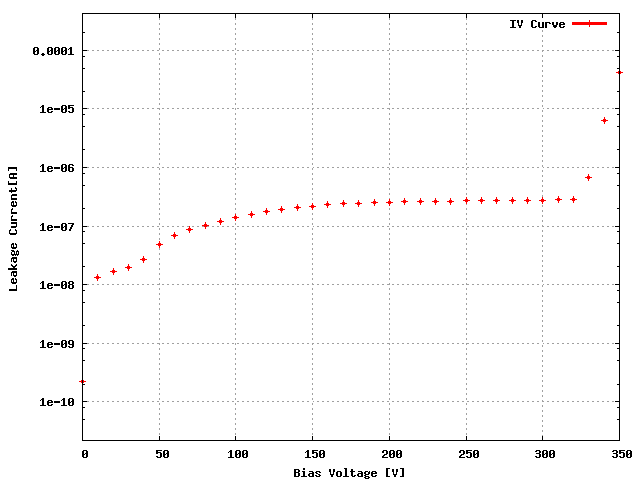

Sensor: S_2x4B_07, Data for leakage current measurement , and plot on overall it is a GOOD sensor
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W13_XX4JPAT | 17A |
| ROC1 | W13_XX4JPAT | 16D |
| ROC2 | W13_XX4JPAT | 16A |
| ROC3 | W13_XX4JPAT | 15D |
| ROC4 | W13_XX4JPAT | 18C |
| ROC5 | W13_XX4JPAT | 18D |
| ROC6 | W13_XX4JPAT | 03A |
| ROC7 | W13_XX4JPAT | 03B |
| Ibias_DAC, Ibias_DAC Data | 158 | 130 | 150 | 144 | 154 | 140 | 156 | 146 |
| Vana, VanaData | 124 | 123 | 127 | 134 | 133 | 120 | 139 | 115 |
| CalDelData and plots | 81 | 98 | 69 | 85 | 86 | 80 | 81 | 72 |
| VthrCompData and plots | 82 | 65 | 86 | 69 | 80 | 67 | 78 | 70 |
