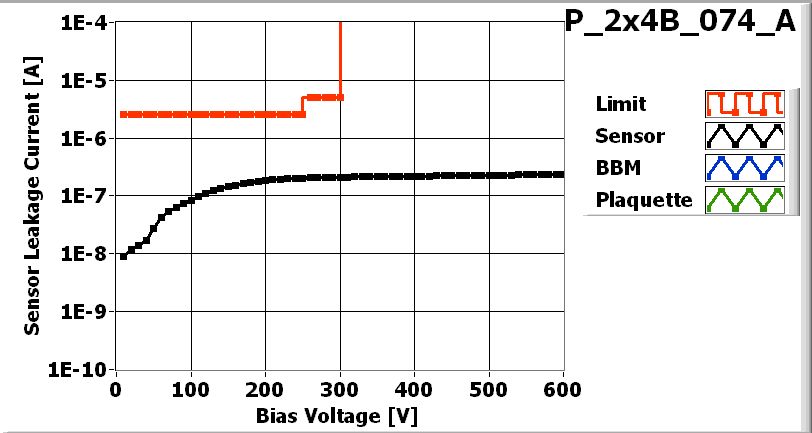

![[IMAGE] of](P_2x4B_074_A_IV.jpg)
| IV_XML-File |
| Maximum Voltage 600 V |

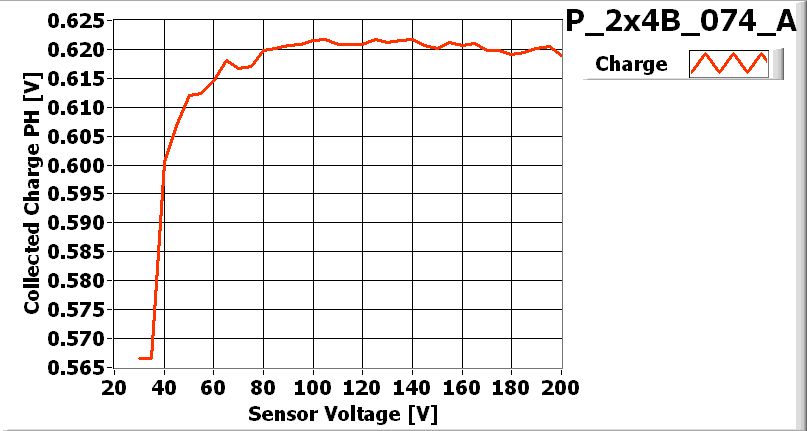

![[IMAGE] of](P_2x4B_074_A_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 45 V |
| Operational Voltage 85 V |
Parts committed by Bolla Gino on date CCYY-MM-DD
| Part | ID |
|---|---|
| BBM | BBM_074-2x4B |
| VHDI | 2x4_351 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | X14JP6T | 45D |
| ROC1 | X14JP6T | 47C |
| ROC2 | X14JP6T | 49D |
| ROC3 | X14JP6T | 48D |
| ROC4 | X14JP6T | 04A |
| ROC5 | X14JP6T | 04B |
| ROC6 | X14JP6T | 04C |
| ROC7 | X14JP6T | 04D |
Inspected by Arndt Kirk on date 2006-07-06
| LR_dev | 0.032 |
| LL_dev | 0.043 |
| FINAL COMMENT by Arndt Kirk | No problem assembly. No wirebonding problem |
PLAQUETTE made READY for testing on 2006-07-06 by Arndt Kirk
PLAQUETTE TESTED on 2006-7-06 by Artur Apresyan
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | ROC6 | ROC7 | |
| Ibias_DAC | 160 | 163 | 180 | 173 | 173 | 187 | 164 | 164 | |
| Vana | 129 | 125 | 118 | 125 | 140 | 149 | 128 | 136 | |
| Cal_Del | 74 | 79 | 88 | 77 | 77 | 84 | 91 | 89 | |
| Vthrs_Comp | 67 | 76 | 83 | 81 | 89 | 87 | 83 | 77 | |
| Unbumped | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Dead | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

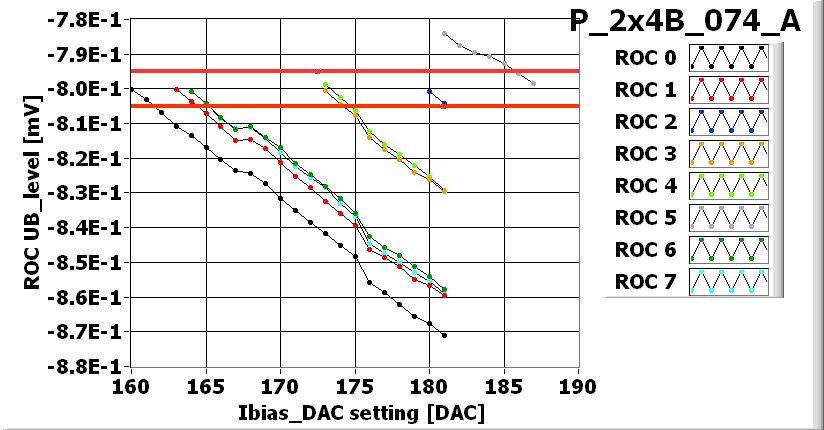

![[IMAGE] of](P_2x4B_074_A_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

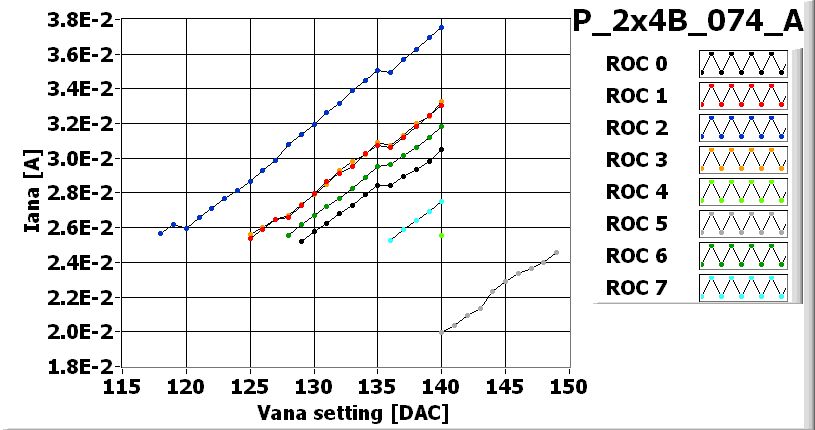

![[IMAGE] of](P_2x4B_074_A_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_2x4B_074_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x4B_074_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x4B_074_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x4B_074_Ano-bump-light.jpg) |
LIGHT_XML-File |
PLAQUETTE READY FOR SHIPPING
Shipped on date 2006-07-12
