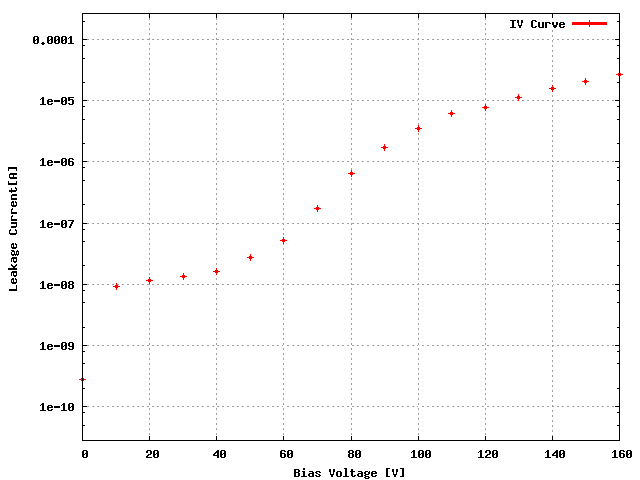

Sensor: S_2x4B_07, Data for leakage current measurement , and plot on overall it is a

ROC	ROC wafer	Label
ROC0	W45_D3LQFLT	54C
ROC1	W45_D3LQFLT	54B
ROC2	W45_D3LQFLT	54A
ROC3	W45_D3LQFLT	53D
ROC4	W45_D3LQFLT	34C
ROC5	W45_D3LQFLT	35B
ROC6	W45_D3LQFLT	36C
ROC7	W45_D3LQFLT	37A

Depletion Voltage is -46 and suggested operational voltage is -86

Ibias_DAC, Ibias_DAC Data	160	162	150	170	150	166	164	158
Vana, VanaData	138	153	137	146	156	155	141	151
CalDelData and plots	79	94	86	81	71	75	94	78
VthrCompData and plots	89	86	85	91	91	92	84	89
TestDdata ,TestD Plots	1	75	72	1	1	52	14	0
LightData ,Light Plots	0	1	0	0	0	0	1	0
Pass/Fail TestD	GOOD	BAD	BAD	GOOD	GOOD	BAD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD

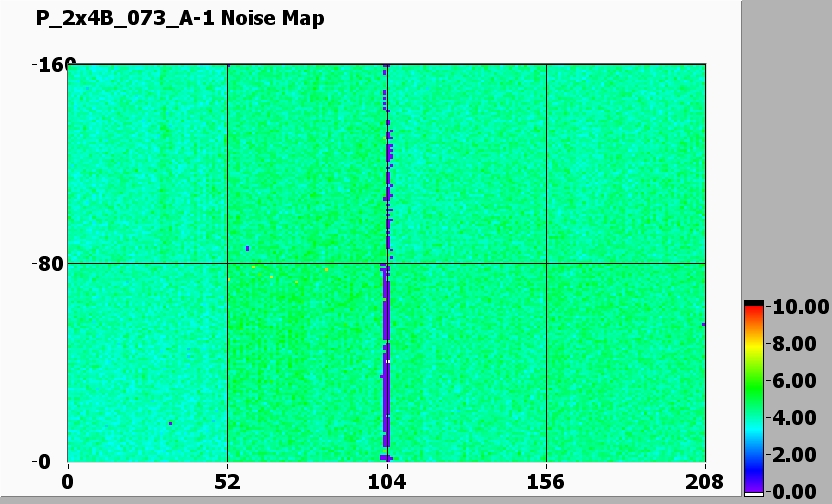

Noise MAP at VMAX

Efficiency MAP

EXTRA DACs for NOISE

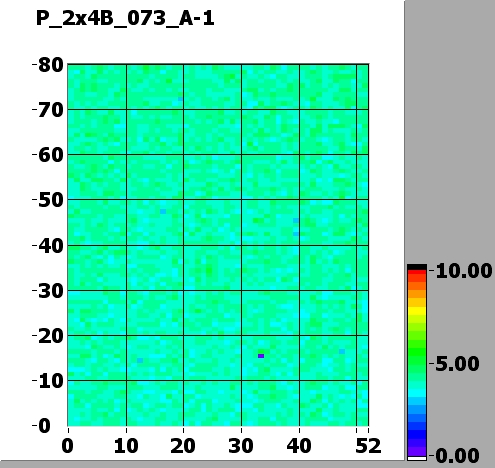

ROC0 NOISE			MEAN = 3.980859 SIGMA = 0.313306

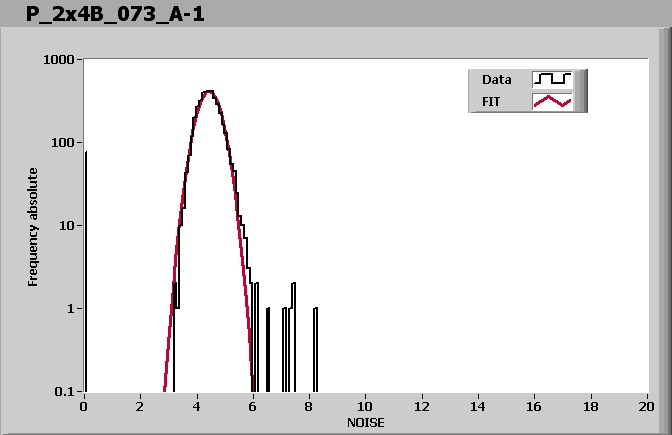

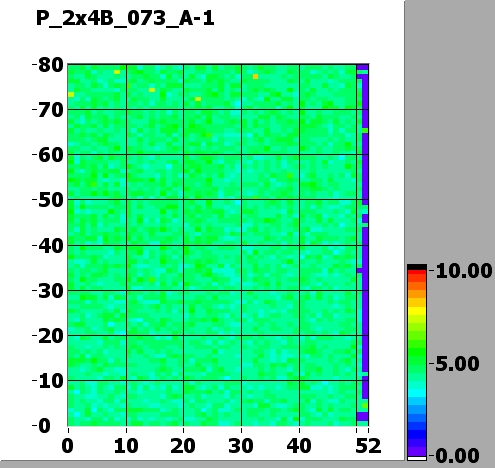

ROC1 NOISE			MEAN = 4.430570 SIGMA = 0.386802
ROC2 NOISE			MEAN = 4.285566 SIGMA = 0.344690

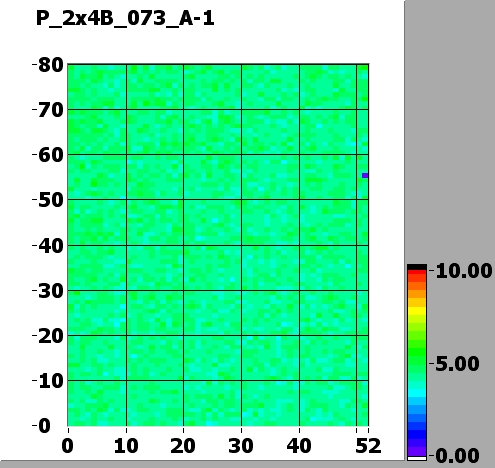

ROC3 NOISE			MEAN = 4.339388 SIGMA = 0.339949
ROC4 NOISE			MEAN = 4.184990 SIGMA = 0.314324

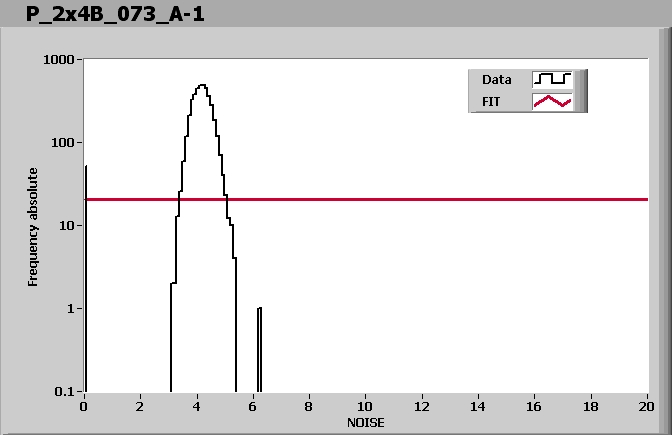

ROC5 NOISE			MEAN = 13431.365035 SIGMA = 226967.341273
ROC6 NOISE			MEAN = 4.354478 SIGMA = 0.348111

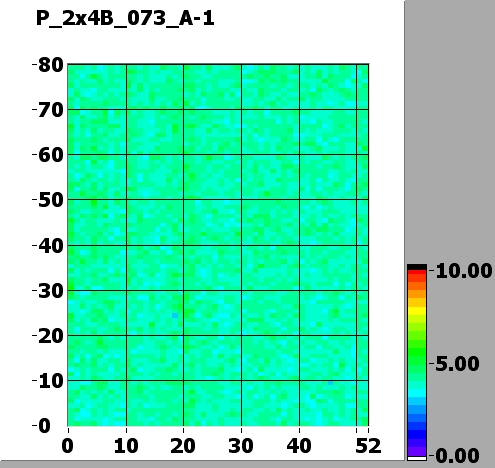

ROC7 NOISE			MEAN = 4.026418 SIGMA = 0.329632

Comment (if any):

P_2x4B_073_A.html,

End testing time: 11:40 AM
