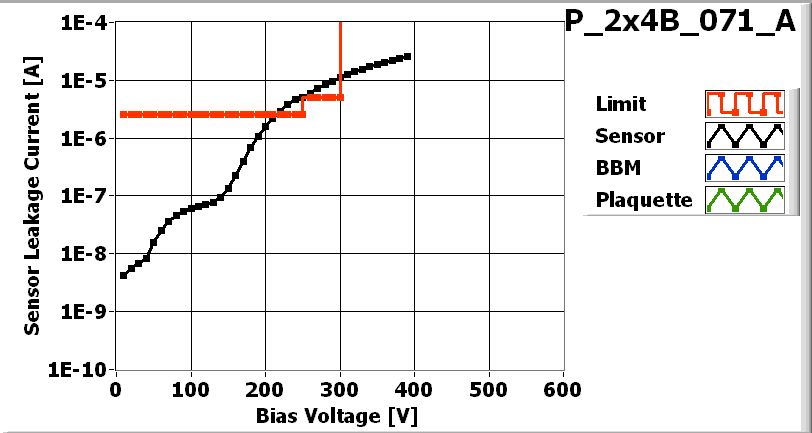

![[IMAGE] of](P_2x4B_071_A_IV.jpg)
| IV_XML-File |
| Maximum Voltage 390 V |

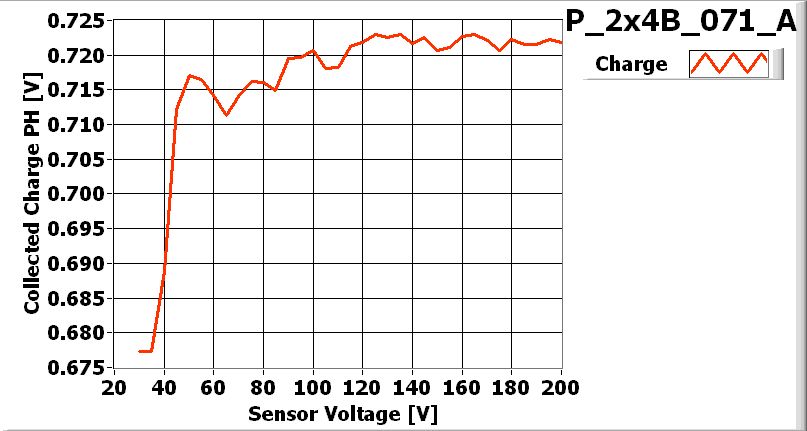

![[IMAGE] of](P_2x4B_071_A_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 50 V |
| Operational Voltage 90 V |
Parts committed by Bolla Gino on date CCYY-MM-DD
| Part | ID |
|---|---|
| BBM | BBM_071-2x4B |
| VHDI | 2x4_349 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | X74JP0T | 41C |
| ROC1 | X74JP0T | 41B |
| ROC2 | X74JP0T | 40D |
| ROC3 | X74JP0T | 40C |
| ROC4 | X74JP0T | 31A |
| ROC5 | X74JP0T | 31C |
| ROC6 | X74JP0T | 31D |
| ROC7 | X74JP0T | 32A |
Inspected by Arndt Kirk on date 2006-07-03
| LR_dev | 0.026 |
| LL_dev | 0.043 |
| FINAL COMMENT by Arndt Kirk | No problem assembly. No wirebonding problem |
PLAQUETTE made READY for testing on 2006-07-03 by Arndt Kirk
PLAQUETTE TESTED on 2006-7-05 by Petra Merkel
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | ROC6 | ROC7 | |
| Ibias_DAC | 163 | 149 | 165 | 158 | 169 | 173 | 184 | 177 | |
| Vana | 136 | 106 | 127 | 115 | 131 | 144 | 158 | 128 | |
| Cal_Del | 84 | 90 | 95 | 81 | 93 | 82 | 75 | 80 | |
| Vthrs_Comp | 82 | 69 | 81 | 83 | 77 | 90 | 97 | 88 | |
| Unbumped | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Dead | 0 | 0 | 0 | 1 | 0 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 0 | 0 | 1 | 0 | 0 | 0 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

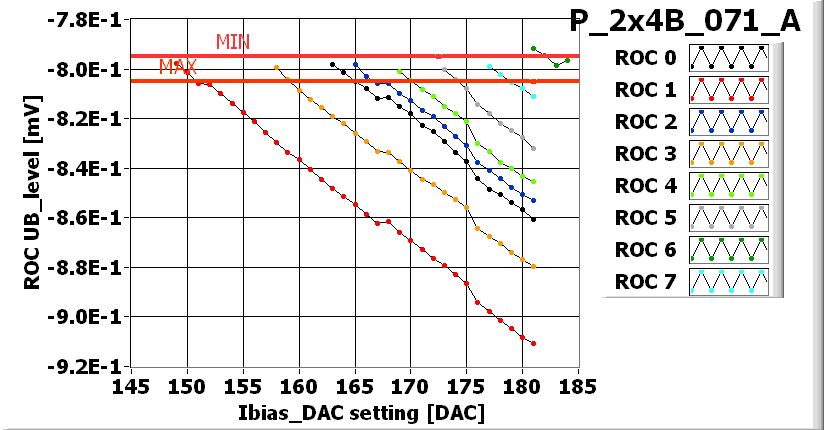

![[IMAGE] of](P_2x4B_071_A_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

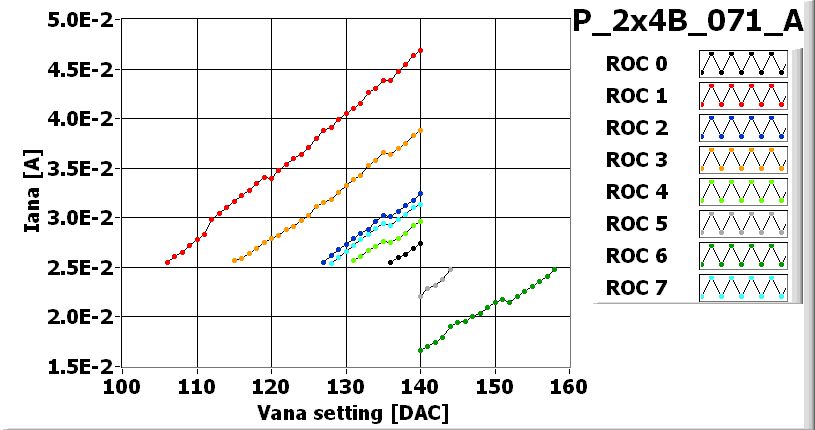

![[IMAGE] of](P_2x4B_071_A_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_2x4B_071_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x4B_071_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x4B_071_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x4B_071_Ano-bump-light.jpg) |
LIGHT_XML-File |
PLAQUETTE READY FOR SHIPPING
Shipped on date 2006-08-22
