P_2x4B_059

P_2x4B_059_C

Parts committed by Bolla Gino on date CCYY-MM-DD

Part	ID
BBM	BBM_059-2x4B
VHDI	2x4_550

ROC ROC wafer Label

ROC0 XF4K3JT 57B

ROC1 XF4K3JT 57A

ROC2 XF4K3JT 63C

ROC3 XF4K3JT 62D

ROC4 XF4K3JT 63D

ROC5 XF4K3JT 58B

ROC6 XF4K3JT 61D

ROC7 XF4K3JT 58A

ROC	ROC wafer	Label
ROC0	XF4K3JT	57B
ROC1	XF4K3JT	57A
ROC2	XF4K3JT	63C
ROC3	XF4K3JT	62D
ROC4	XF4K3JT	63D
ROC5	XF4K3JT	58B
ROC6	XF4K3JT	61D
ROC7	XF4K3JT	58A

Inspected by Arndt Kirk on date 9/6/2006

LR_dev 0.038

LL_dev 0.017

FINAL COMMENT by Arndt Kirk No assembly problems. No wirebond problem.

PLAQUETTE made READY for testing on 9/6/2006 by Arndt Kirk

PLAQUETTE TESTED on 2006-6-29 by Stacy Kouba

IV_XML-File

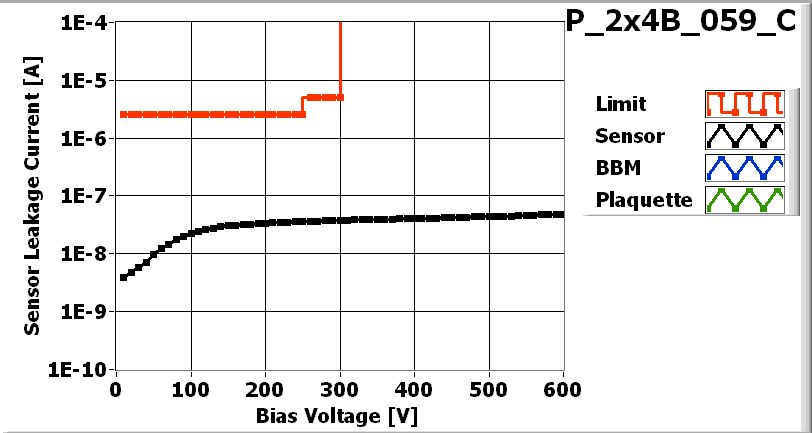

Maximum Voltage 600 V

LASER_XML-File

Depletion Voltage 52 V

Operational Voltage 92 V

ROC	ROC0	ROC1	ROC2	ROC3	ROC4	ROC5	ROC6	ROC7

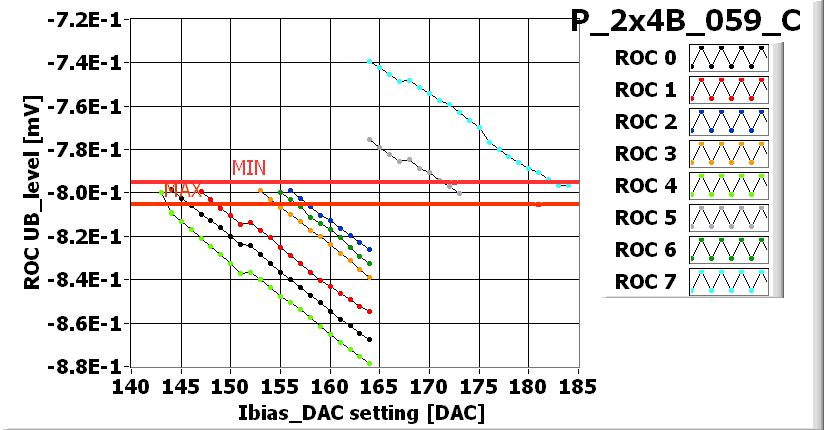

Ibias_DAC	144	147	156	153	144	173	155	184

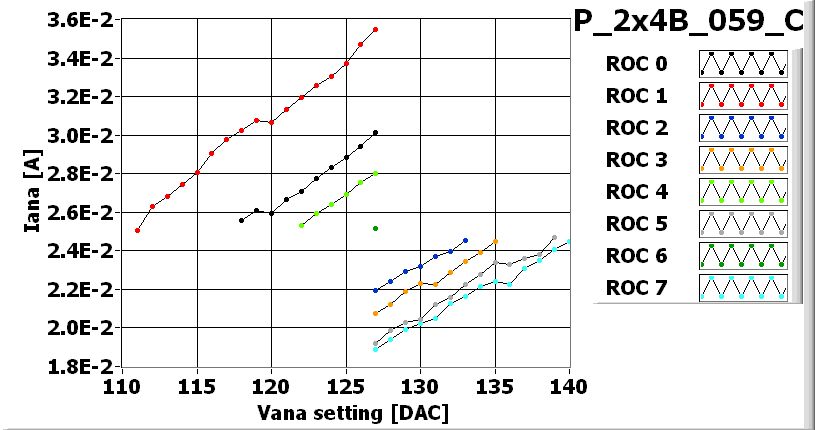

Vana	118	111	133	135	122	139	127	140
Cal_Del	104	85	98	76	93	89	72	92
Vthrs_Comp	68	84	77	78	76	79	86	83
Unbumped	0	0	0	0	1	0	1	0
Dead	0	0	1	0	1	0	0	0
Noisy	0	0	0	0	0	0	0	0
Undecoded	0	0	0	0	0	0	0	0
Total BAD	0	0	1	0	2	0	1	0

ASSEMBLY_XML-File	SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File
	I_BIAS_DAC_XML-File
	VANA_XML-File
	DEAD_XML-File
	NOISY_XML-File
	UNDECODED_XML-File
	LIGHT_XML-File

PLAQUETTE READY FOR SHIPPING

Shipped on date 2006-09-15

Plaquette assigned to panel P3R_048
