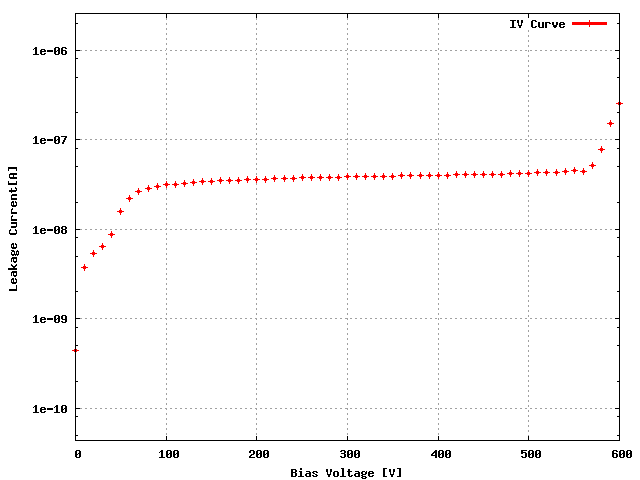

Sensor: S_2x4B_04, Data for leakage current measurement , and plot on overall it is a GOOD sensor
ROC | ROC wafer | Label |
---|---|---|
ROC0 | XG4KFCT | 43B |
ROC1 | XG4KFCT | 43A |
ROC2 | XG4KFCT | 41B |
ROC3 | XG4KFCT | 41A |
ROC4 | XG4KFCT | 48D |
ROC5 | XG4KFCT | 49D |
ROC6 | XG4KFCT | 40A |
ROC7 | XG4KFCT | 40B |
Ibias_DAC, Ibias_DAC Data | 146 | 130 | 148 | 140 | 118 | 142 | 140 | 128 |
Vana, VanaData | 147 | 135 | 144 | 134 | 129 | 141 | 132 | 111 |
CalDelData and plots | 78 | 90 | 78 | 92 | 97 | 65 | 69 | 88 |
VthrCompData and plots | 81 | 72 | 90 | 81 | 73 | 92 | 80 | 63 | Depletion Voltage is -48 and suggested operational voltage is -88
TestDdata ,TestD Plots | 0 | 0 | 1 | 0 | 1 | 0 | 0 | 43 |
LightData ,Light Plots | 0 | 0 | 1 | 0 | 0 | 0 | 0 | 48 |
Pass/Fail TestD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | BAD |
Pass/Fail LIGHT | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | BAD |

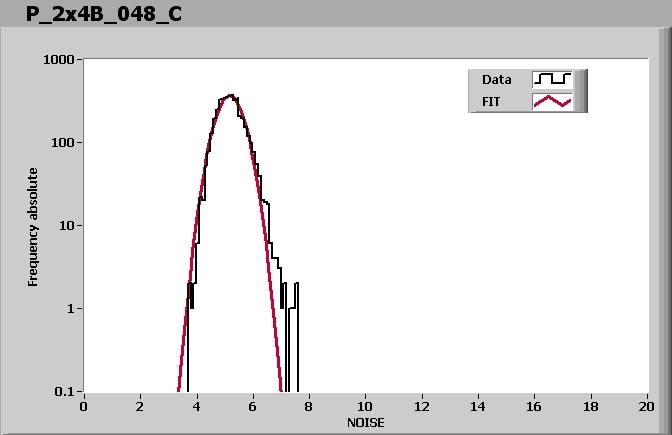

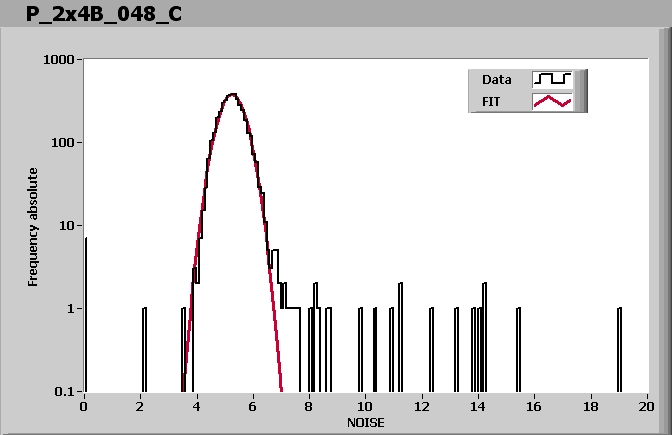

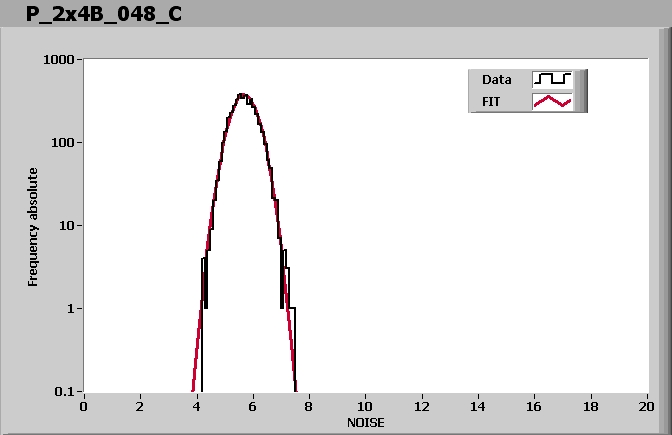

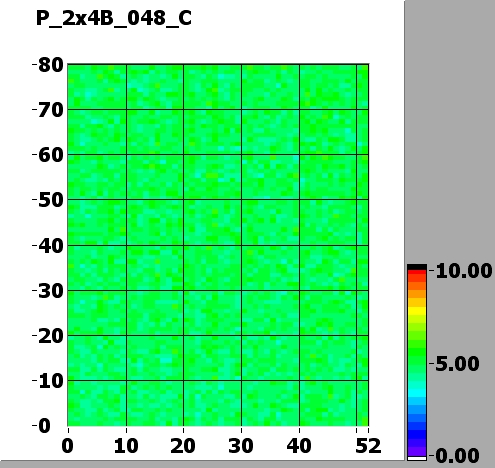

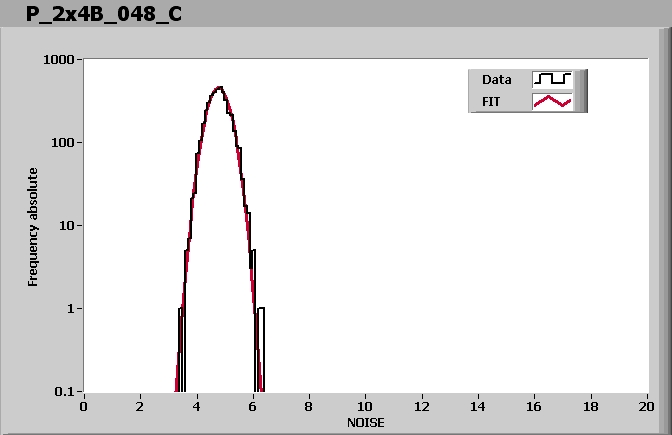

Noise MAP
Efficiency MAP
EXTRA DACs for NOISE
VHldDe | 85 | 120 | 105 | 100 | 130 | 85 | 125 | 155 |
Vsf | 145 | 140 | 145 | 135 | 140 | 145 | 140 | 135 |
VoffsetOp | 80 | 65 | 160 | 90 | 55 | 95 | 90 | 65 |
VIbias_PH | 105 | 100 | 100 | 100 | 105 | 100 | 100 | 100 |

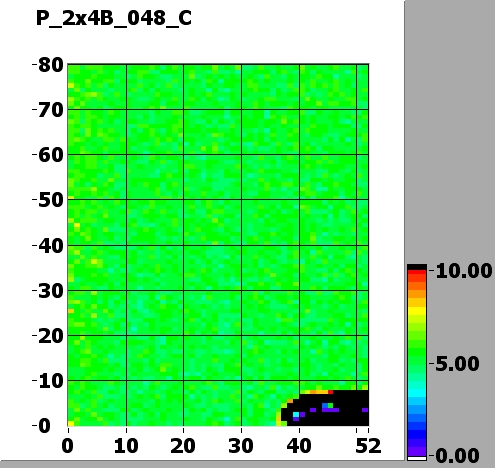

Comment (if any): ROC 7 has 48 bad pixels in the bottom-right corner.
This Device have been tested 0Times prior to this one and here are the links to the previous tests:End testing time: 12:21 PM
