P_2x4B_043

P_2x4B_043_A

Parts committed by Bolla Gino on date 11/3/2006

Part	ID
BBM	BBM_043-2x4B
VHDI	2x4_304

ROC ROC wafer Label

ROC0 W18_XJ4KT3FT 56A

ROC1 W18_XJ4KT3FT 55D

ROC2 W18_XJ4KT3FT 55C

ROC3 W18_XJ4KT3FT 55B

ROC4 W18_XJ4KT3FT 49D

ROC5 W18_XJ4KT3FT 30A

ROC6 W18_XJ4KT3FT 30B

ROC7 W18_XJ4KT3FT 30C

ROC	ROC wafer	Label
ROC0	W18_XJ4KT3FT	56A
ROC1	W18_XJ4KT3FT	55D
ROC2	W18_XJ4KT3FT	55C
ROC3	W18_XJ4KT3FT	55B
ROC4	W18_XJ4KT3FT	49D
ROC5	W18_XJ4KT3FT	30A
ROC6	W18_XJ4KT3FT	30B
ROC7	W18_XJ4KT3FT	30C

Inspected by Graves Durand on date 11/9/2006

LR_dev 0.017

LL_dev 0.062

FINAL COMMENT by Graves Durand No assembly problems. No wirebonding problems.

PLAQUETTE made READY for testing on 11/9/2006 by Graves Durand

PLAQUETTE TESTED on 2006-11-10 by Isaac Childres

IV_XML-File

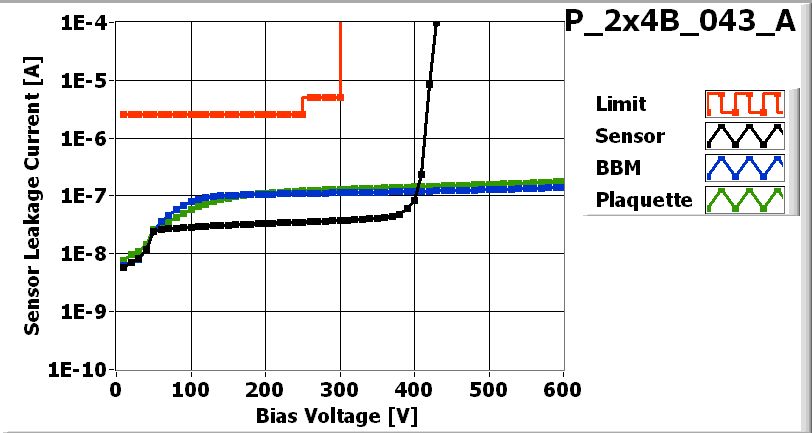

Maximum Voltage 600 V

LASER_XML-File

Depletion Voltage 52 V

Operational Voltage 92 V

ROC	ROC0	ROC1	ROC2	ROC3	ROC4	ROC5	ROC6	ROC7

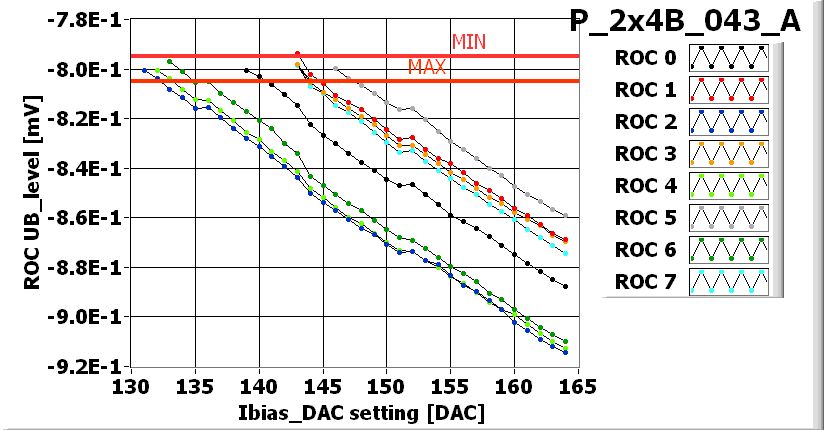

Ibias_DAC	139	143	131	144	132	146	133	144

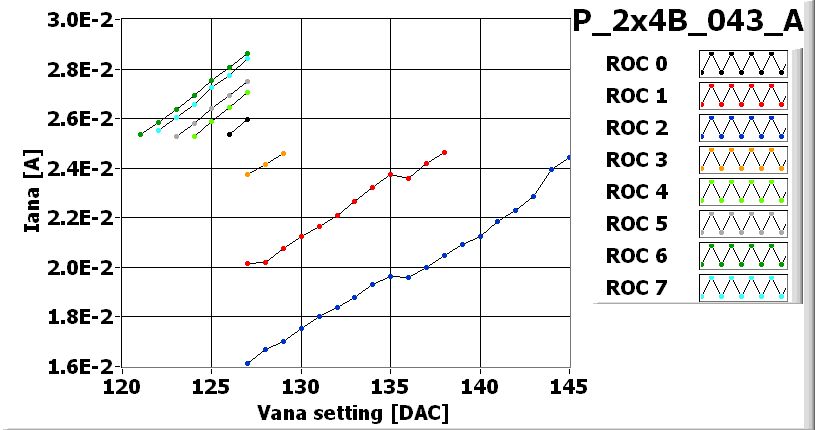

Vana	126	138	145	129	124	123	121	122
Cal_Del	85	89	85	74	79	76	100	80
Vthrs_Comp	78	77	80	72	77	78	61	82
Unbumped	0	0	0	0	0	0	0	0
Dead	0	0	0	0	0	0	0	0
Noisy	0	0	0	0	0	0	0	0
Undecoded	0	0	0	0	0	0	0	0
Total BAD	0	0	0	0	0	0	0	0

ASSEMBLY_XML-File	SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File
	I_BIAS_DAC_XML-File
	VANA_XML-File
	DEAD_XML-File
	NOISY_XML-File
	UNDECODED_XML-File
	LIGHT_XML-File

PLAQUETTE READY FOR SHIPPING

Shipped on date 2006-11-14

Plaquette assigned to panel P3R_012
