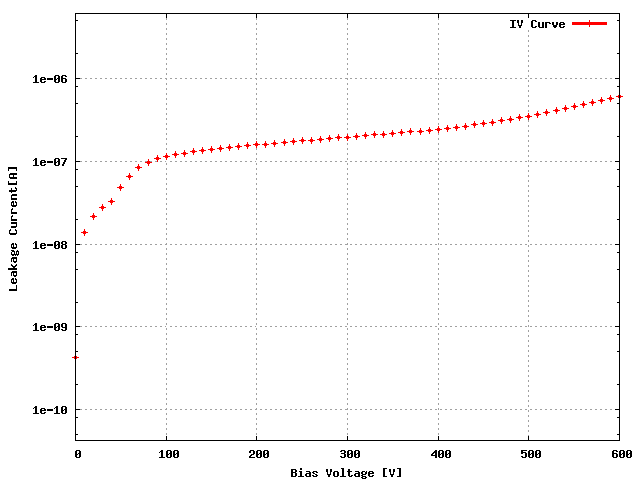

Sensor: S_2x4B_03, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC	ROC wafer	Label
ROC0	W35_XH4K3HT	06D
ROC1	W35_XH4K3HT	06C
ROC2	W35_XH4K3HT	06B
ROC3	W35_XH4K3HT	06A
ROC4	W49_D1LQG5T	13B
ROC5	W49_D1LQG5T	14B
ROC6	W49_D1LQG5T	14C
ROC7	W49_D1LQG5T	15B

Depletion Voltage is -46 and suggested operational voltage is -86

Ibias_DAC, Ibias_DAC Data	166	150	158	154	150	138	150	154
Vana, VanaData	134	133	121	138	134	127	144	134
CalDelData and plots	80	74	82	103	91	89	91	89
VthrCompData and plots	79	88	83	67	82	73	89	81
TestDdata ,TestD Plots	0	0	0	2	9	1	0	0
LightData ,Light Plots	0	0	0	0	0	0	0	0
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD

Noise MAP at VMAX

Efficiency MAP

EXTRA DACs for NOISE

ROC0 NOISE			MEAN = 3.972611 SIGMA = 0.330264
ROC1 NOISE			MEAN = 4.455762 SIGMA = 0.350698
ROC2 NOISE			MEAN = 4.644057 SIGMA = 0.369791
ROC3 NOISE			MEAN = 4.574130 SIGMA = 0.361179

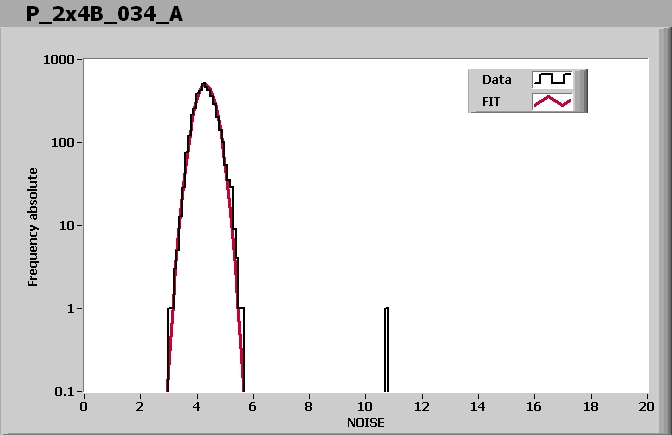

ROC4 NOISE			MEAN = 4.301852 SIGMA = 0.330092
ROC5 NOISE			MEAN = 5.100153 SIGMA = 0.404019

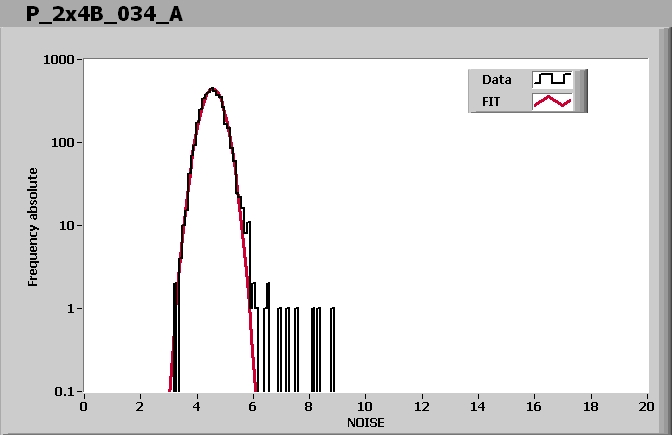

ROC6 NOISE			MEAN = 4.559710 SIGMA = 0.373766

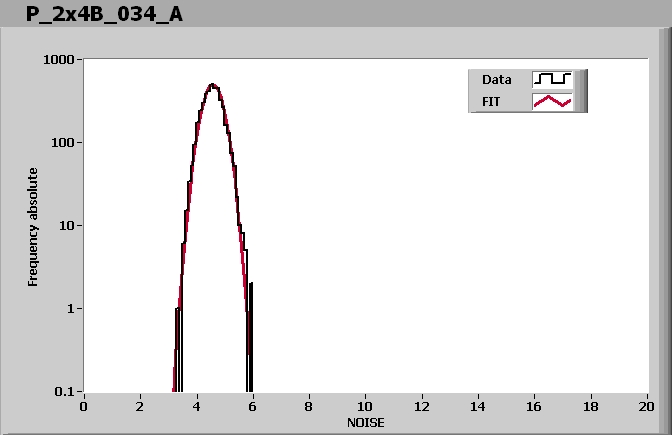

ROC7 NOISE			MEAN = 4.566230 SIGMA = 0.338971

Comment (if any):

End testing time: 4:16 PM
