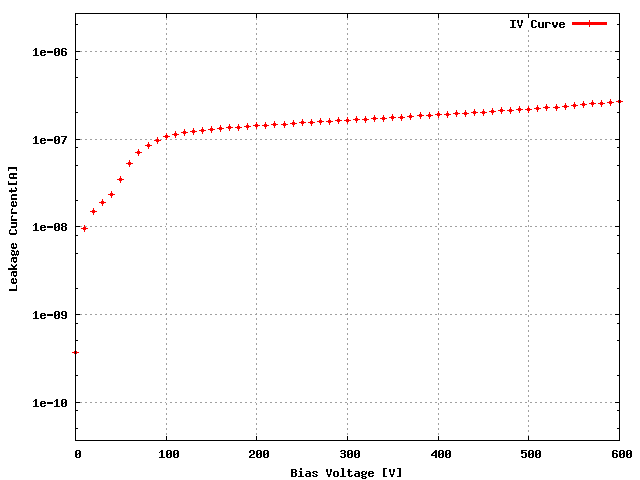

Sensor: S_2x4B_02, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC	ROC wafer	Label
ROC0	W49_D1LQG5T	25C
ROC1	W49_D1LQG5T	25B
ROC2	W49_D1LQG5T	25A
ROC3	W49_D1LQG5T	24D
ROC4	W49_D1LQG5T	40A
ROC5	W49_D1LQG5T	40B
ROC6	W49_D1LQG5T	40D
ROC7	W49_D1LQG5T	41A

Depletion Voltage is -54 and suggested operational voltage is -94

Ibias_DAC, Ibias_DAC Data	156	140	148	174	146	150	174	144
Vana, VanaData	134	137	146	159	142	139	142	147
CalDelData and plots	86	82	80	71	77	99	84	91
VthrCompData and plots	82	84	80	91	87	76	89	80
TestDdata ,TestD Plots	0	3	62	30	21	44	0	0
LightData ,Light Plots	0	0	0	0	0	0	0	0
Pass/Fail TestD	GOOD	GOOD	BAD	GOOD	GOOD	BAD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD

Noise MAP at VMAX

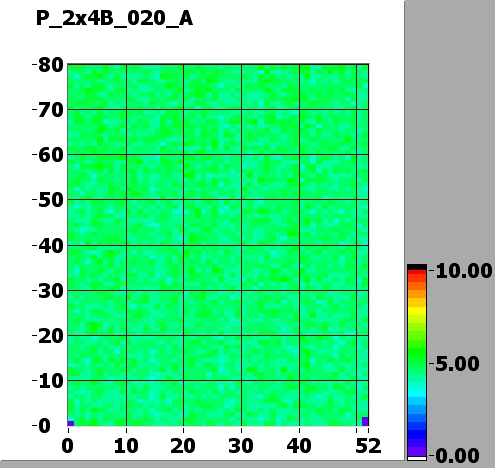

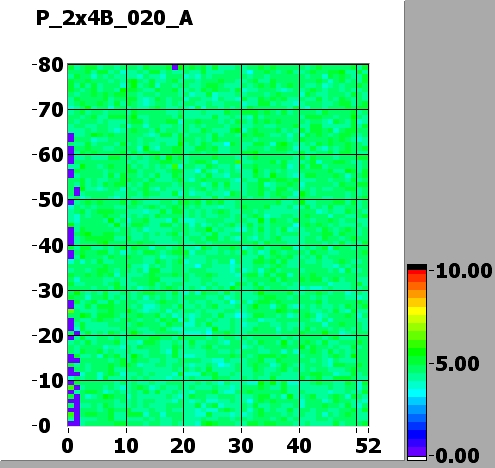

Efficiency MAP

EXTRA DACs for NOISE

ROC0 NOISE			MEAN = 4.185837 SIGMA = 0.326813
ROC1 NOISE			MEAN = 4.585167 SIGMA = 0.360036

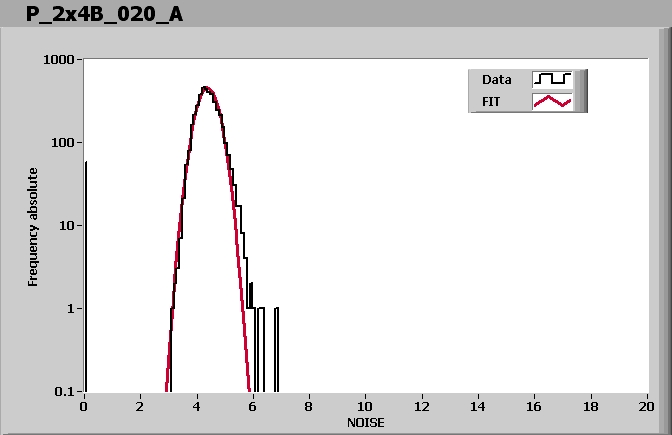

ROC2 NOISE			MEAN = 4.375423 SIGMA = 0.356563

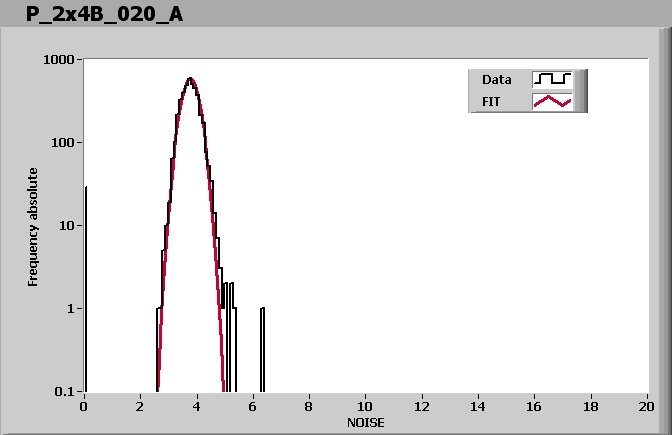

ROC3 NOISE			MEAN = 3.767904 SIGMA = 0.282594

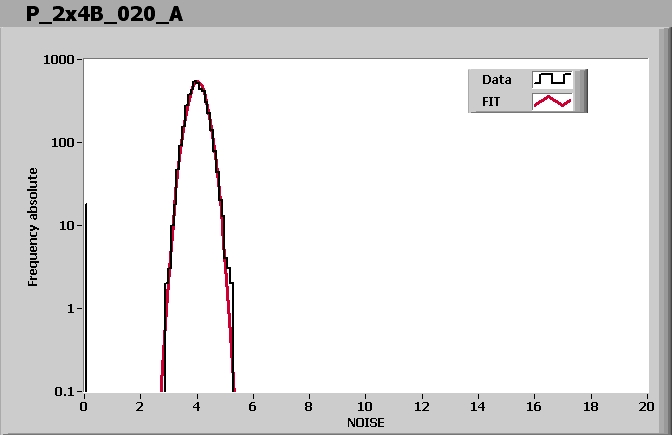

ROC4 NOISE			MEAN = 4.020621 SIGMA = 0.310574

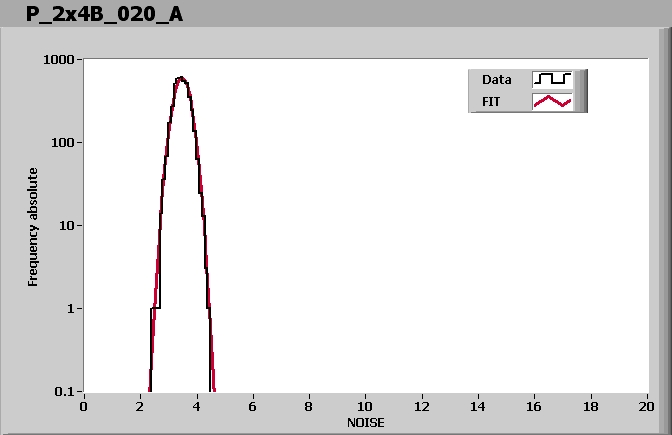

ROC5 NOISE			MEAN = 4.531203 SIGMA = 0.334661
ROC6 NOISE			MEAN = 3.467489 SIGMA = 0.273330

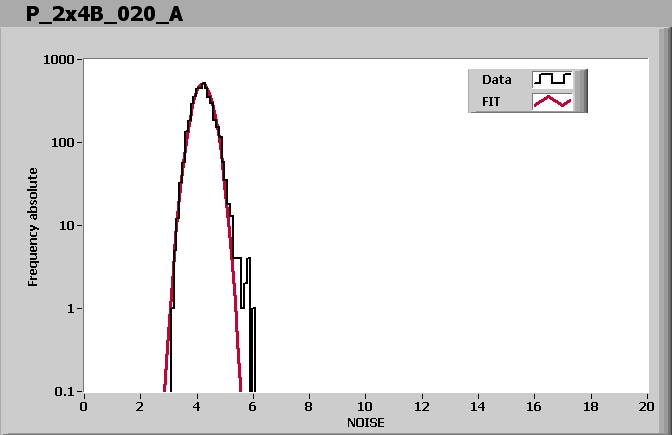

ROC7 NOISE			MEAN = 4.207940 SIGMA = 0.328488

Comment (if any):

End testing time: 11:30 AM
