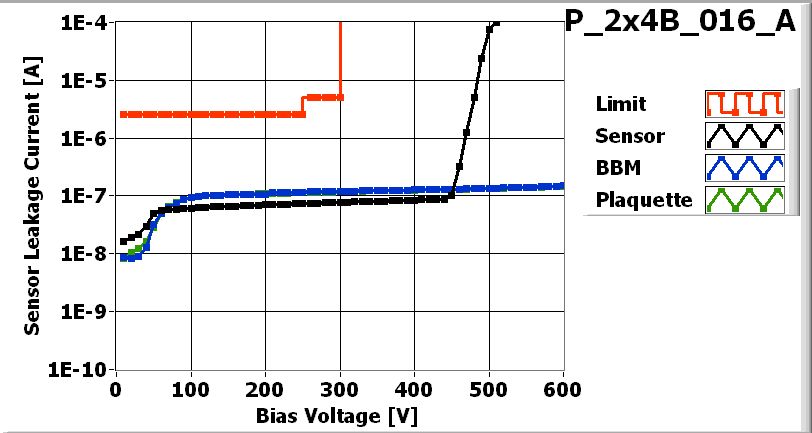

![[IMAGE] of](P_2x4B_016_A_IV.jpg)
| IV_XML-File |
| Maximum Voltage 600 V |
![[IMAGE] of](P_2x4B_016_A_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 52 V |
| Operational Voltage 92 V |
Parts committed by Arndt Kirk on date 5/7/2007
| Part | ID |
|---|---|
| BBM | BBM_016-2x4B |
| VHDI | 2x4_616 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W49_D1LQG5T | 33A |
| ROC1 | W49_D1LQG5T | 32B |
| ROC2 | W49_D1LQG5T | 31A |
| ROC3 | W49_D1LQG5T | 30D |
| ROC4 | W49_D1LQG5T | 67C |
| ROC5 | W49_D1LQG5T | 67D |
| ROC6 | W49_D1LQG5T | 68C |
| ROC7 | W49_D1LQG5T | 51B |
Inspected by Arndt Kirk on date 5/8/2007
| LR_dev | 0.051 |
| LL_dev | 0.065 |
PLAQUETTE GLUED with FULL PRESSURE
| FINAL COMMENT by Arndt Kirk | No assembly problems. No wirebond problem. |
PLAQUETTE made READY for ENCAPSULATION on 5/8/2007 by Arndt Kirk
PLAQUETTE encapsulated on 5/8/2007 by Ortiz Jason
PLAQUETTE made READY for testing on 5/8/2007 by Ortiz Jason
P_2x4B_016_Aon 5/8/2007 11:09 PM
P_2x4B_016_Aon 5/8/2007 11:09 PM
PLAQUETTE TESTED on 2007-05-08 by Petra Merkel
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | ROC6 | ROC7 | |
| Ibias_DAC | 130 | 138 | 146 | 138 | 136 | 144 | 142 | 140 | |
| Vana | 150 | 148 | 153 | 135 | 135 | 153 | 145 | 133 | |
| Cal_Del | 79 | 78 | 81 | 90 | 99 | 76 | 97 | 96 | |
| Vthrs_Comp | 86 | 91 | 86 | 75 | 80 | 89 | 81 | 75 | |
| Unbumped | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1 | |
| Dead | 0 | 0 | 0 | 0 | 1 | 0 | 1 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 0 | 0 | 0 | 1 | 0 | 1 | 1 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

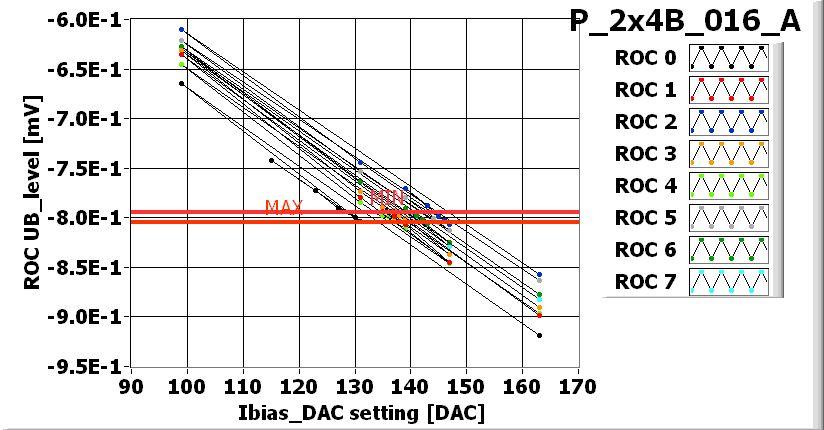

![[IMAGE] of](P_2x4B_016_A_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

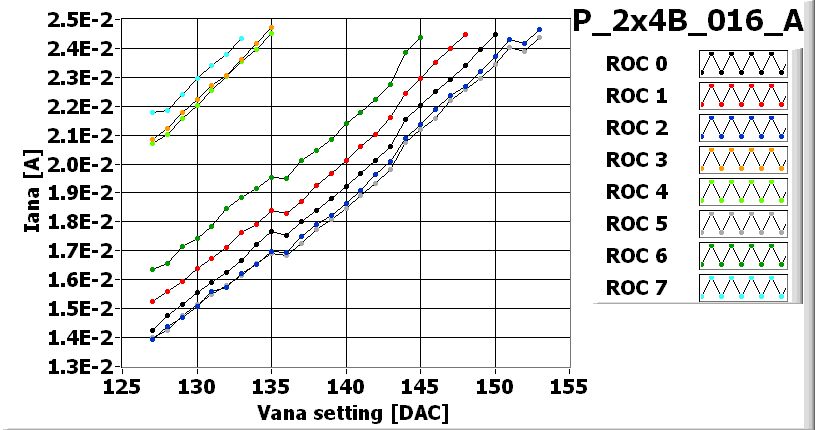

![[IMAGE] of](P_2x4B_016_A_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_2x4B_016_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x4B_016_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x4B_016_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x4B_016_Ano-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 85 | 95 | 95 | 105 | 90 | 90 | 95 | 105 |
| Vsf | 150 | 145 | 150 | 140 | 140 | 155 | 150 | 140 |
| VoffsetOp | 100 | 110 | 115 | 100 | 90 | 100 | 110 | 90 |
| VIbias_PH | 100 | 100 | 95 | 95 | 100 | 100 | 100 | 100 |

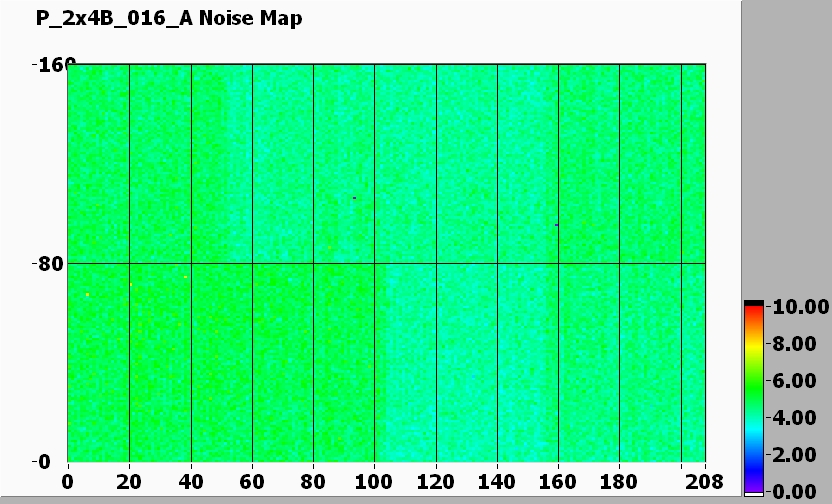

Noise MAP
![[IMAGE] of](P_2x4B_016_A-580-noise.jpg)

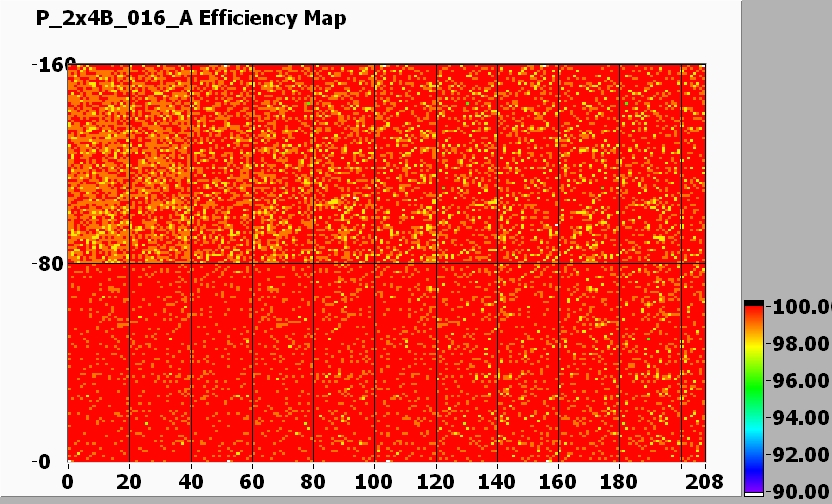

Efficiency MAP
![[IMAGE] of](P_2x4B_016_A-580-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
