P_2x3T_175

P_2x3T_175_A

Production testing

Date:4/30/2007

Operator: mia tosi

start testing time:1:52 PM

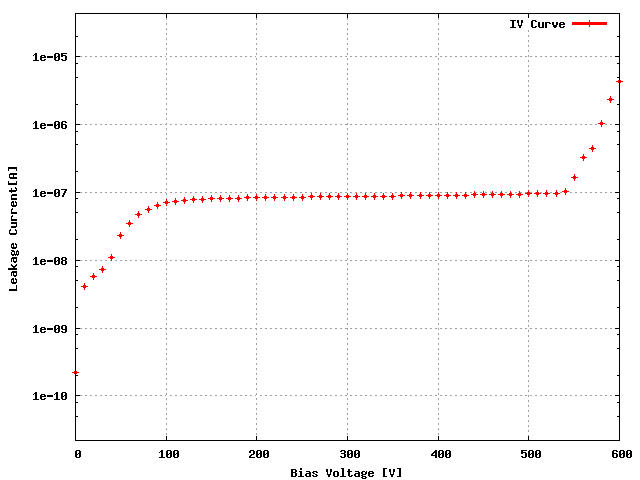

Sensor: S_2x3T_17, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC ROC wafer Label

ROC0 W28_X54K5TT 51B

ROC1 W28_X54K5TT 51A

ROC2 W28_X54K5TT 68D

ROC3 W28_X54K5TT 48C

ROC4 W28_X54K5TT 49B

ROC5 W33_XC4K5LT 16D

ROC	ROC wafer	Label
ROC0	W28_X54K5TT	51B
ROC1	W28_X54K5TT	51A
ROC2	W28_X54K5TT	68D
ROC3	W28_X54K5TT	48C
ROC4	W28_X54K5TT	49B
ROC5	W33_XC4K5LT	16D

Depletion Voltage is -44 and suggested operational voltage is -84

Ibias_DAC, Ibias_DAC Data 130 140 128 138 146 128

Vana, VanaData 113 141 129 138 128 116

CalDelData and plots 91 85 83 74 75 83

VthrCompData and plots 67 72 76 77 66 74

TestDdata ,TestD Plots 6 0 0 0 1 0

LightData ,Light Plots 0 0 0 0 0 0

Pass/Fail TestD GOOD GOOD GOOD GOOD GOOD GOOD

Pass/Fail LIGHT GOOD GOOD GOOD GOOD GOOD GOOD

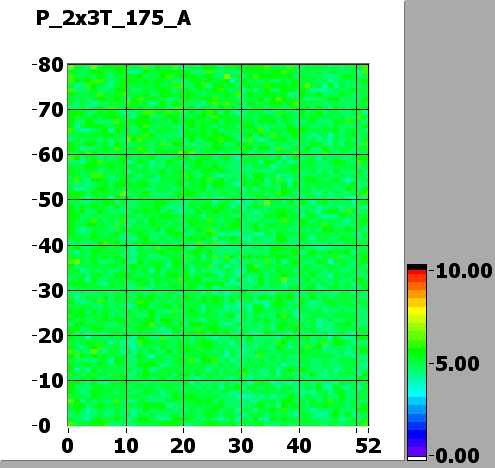

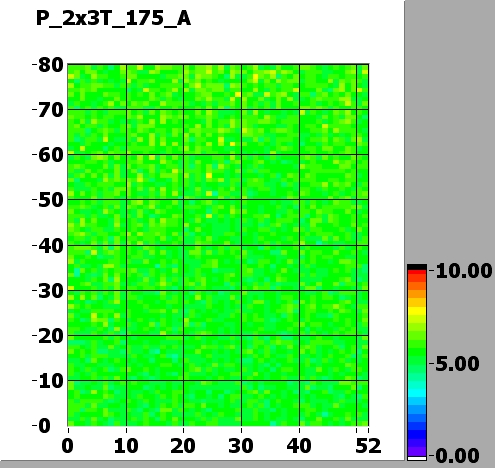

Noise MAP

Efficiency MAP

EXTRA DACs for NOISE

VHldDe	150	85	120	85	115	140
Vsf	130	140	140	140	140	140
VoffsetOp	75	90	80	75	85	50
VIbias_PH	100	105	95	105	105	95

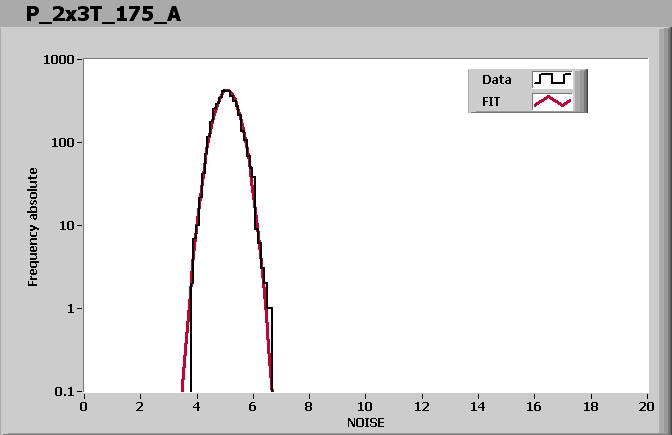

ROC0 NOISE			MEAN = 5.069082 SIGMA = 0.391750

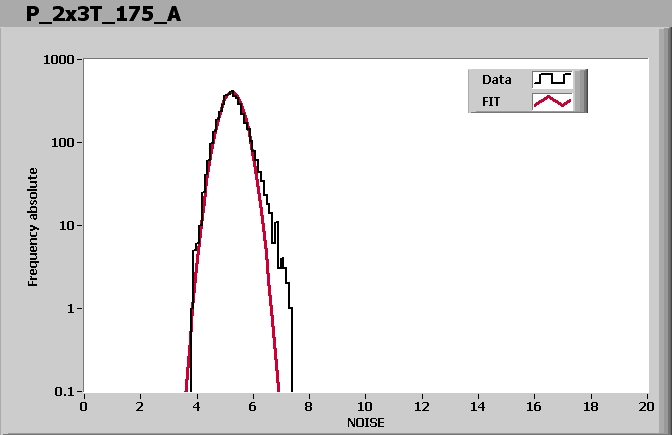

ROC1 NOISE			MEAN = 5.245661 SIGMA = 0.403465

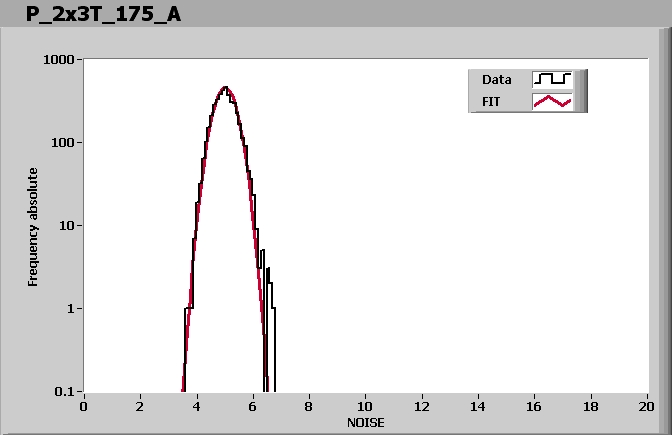

ROC2 NOISE			MEAN = 5.004394 SIGMA = 0.367616

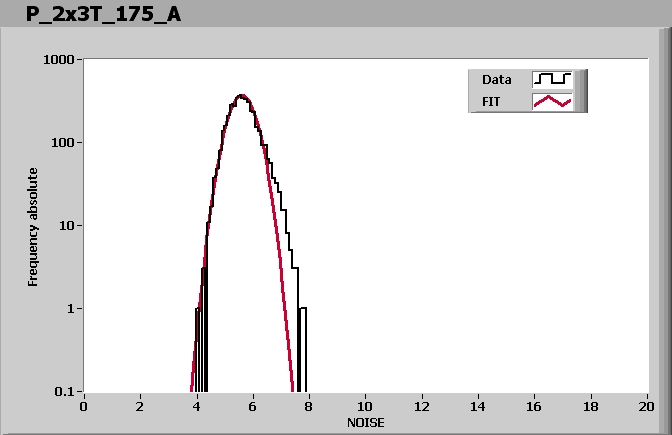

ROC3 NOISE			MEAN = 5.603109 SIGMA = 0.442752
ROC4 NOISE			MEAN = 4.848564 SIGMA = 0.403745

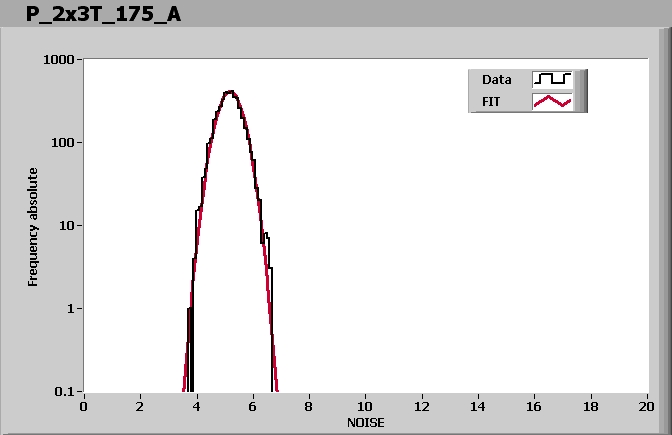

ROC5 NOISE			MEAN = 5.179794 SIGMA = 0.405837

Comment (if any): good

This Device have been tested 0Times prior to this one and here are the links to the previous tests:

End testing time: 2:13 PM

Ibias_DAC, Ibias_DAC Data	130	140	128	138	146	128
Vana, VanaData	113	141	129	138	128	116
CalDelData and plots	91	85	83	74	75	83
VthrCompData and plots	67	72	76	77	66	74
TestDdata ,TestD Plots	6	0	0	0	1	0
LightData ,Light Plots	0	0	0	0	0	0
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
