P_2x3T_169

P_2x3T_169_A

Production testing

Date:5/25/2007

Operator: Emily Grace

start testing time:11:21 AM

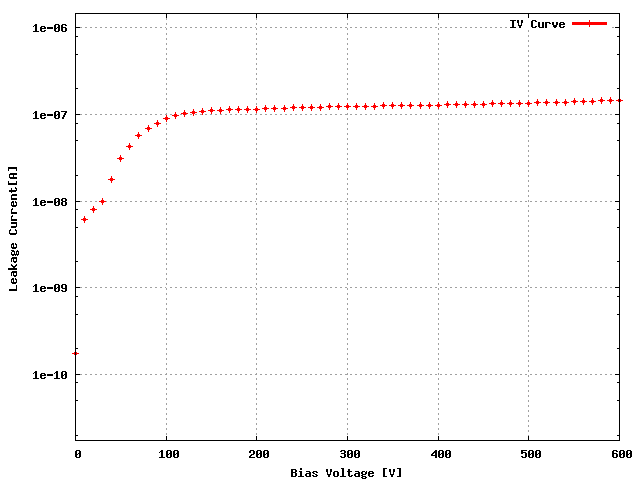

Sensor: S_2x3T_16, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC ROC wafer Label

ROC0 W46_D3LQC5T 61B

ROC1 W46_D3LQC5T 76A

ROC2 W46_D3LQC5T 75D

ROC3 W45_D3LQFCT 28B

ROC4 W45_D3LQFCT 28C

ROC5 W45_D3LQFCT 29A

ROC	ROC wafer	Label
ROC0	W46_D3LQC5T	61B
ROC1	W46_D3LQC5T	76A
ROC2	W46_D3LQC5T	75D
ROC3	W45_D3LQFCT	28B
ROC4	W45_D3LQFCT	28C
ROC5	W45_D3LQFCT	29A

Depletion Voltage is -42 and suggested operational voltage is -82

Ibias_DAC, Ibias_DAC Data 154 150 170 152 162 146

Vana, VanaData 135 145 150 143 159 151

CalDelData and plots 84 96 86 83 85 87

VthrCompData and plots 91 90 86 84 92 87

TestDdata ,TestD Plots 0 0 0 1 1 2

LightData ,Light Plots 0 0 0 0 0 0

Pass/Fail TestD GOOD GOOD GOOD GOOD GOOD GOOD

Pass/Fail LIGHT GOOD GOOD GOOD GOOD GOOD GOOD

Noise MAP at VMAX

Efficiency MAP

EXTRA DACs for NOISE

VHldDe	115	95	95	100	100	95
Vsf	135	145	150	145	155	155
VoffsetOp	75	105	95	110	100	105
VIbias_PH	100	105	105	95	105	100

ROC0 NOISE			MEAN = 4.363073 SIGMA = 0.362328

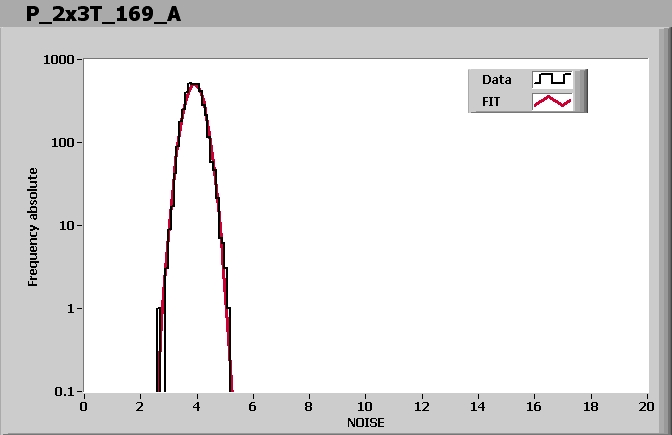

ROC1 NOISE			MEAN = 3.911941 SIGMA = 0.320700
ROC2 NOISE			MEAN = 4.192067 SIGMA = 0.324951
ROC3 NOISE			MEAN = 4.083333 SIGMA = 0.315141
ROC4 NOISE			MEAN = 4.398962 SIGMA = 0.337257
ROC5 NOISE			MEAN = 4.445383 SIGMA = 0.352442

Comment (if any):

This Device have been tested 0Times prior to this one and here are the links to the previous tests:

End testing time: 11:46 AM

Ibias_DAC, Ibias_DAC Data	154	150	170	152	162	146
Vana, VanaData	135	145	150	143	159	151
CalDelData and plots	84	96	86	83	85	87
VthrCompData and plots	91	90	86	84	92	87
TestDdata ,TestD Plots	0	0	0	1	1	2
LightData ,Light Plots	0	0	0	0	0	0
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
