P_2x3T_162

P_2x3T_162_C

Production testing

Date:5/7/2007

Operator: mia tosi

start testing time:4:19 PM

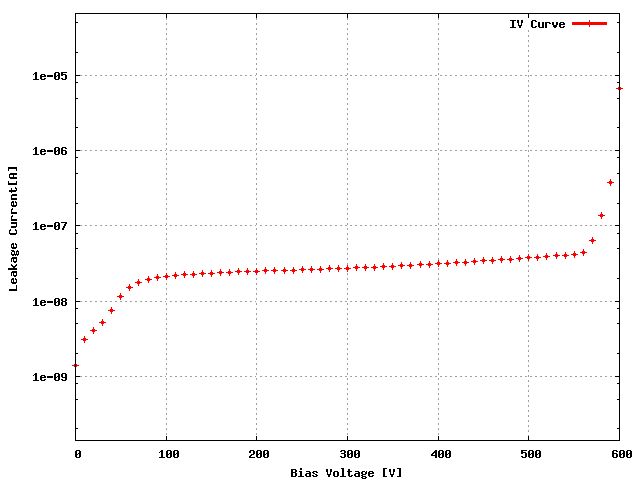

Sensor: S_2x3T_16, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC ROC wafer Label

ROC0 KNN0GDT 03D

ROC1 KNN0GDT 03B

ROC2 KNN0GDT 12B

ROC3 KNN0GDT 32C

ROC4 KNN0GDT 03C

ROC5 KNN0GDT 12A

ROC	ROC wafer	Label
ROC0	KNN0GDT	03D
ROC1	KNN0GDT	03B
ROC2	KNN0GDT	12B
ROC3	KNN0GDT	32C
ROC4	KNN0GDT	03C
ROC5	KNN0GDT	12A

Depletion Voltage is -48 and suggested operational voltage is -88

Ibias_DAC, Ibias_DAC Data 142 144 134 146 146 134

Vana, VanaData 125 144 127 139 133 122

CalDelData and plots 79 77 72 73 78 73

VthrCompData and plots 74 76 74 85 79 75

TestDdata ,TestD Plots 6 2 2 0 1 0

LightData ,Light Plots 0 1 3 0 1 0

Pass/Fail TestD GOOD GOOD GOOD GOOD GOOD GOOD

Pass/Fail LIGHT GOOD GOOD GOOD GOOD GOOD GOOD

Noise MAP

Efficiency MAP

EXTRA DACs for NOISE

VHldDe	125	95	105	120	125	130
Vsf	140	145	140	140	145	140
VoffsetOp	70	90	85	85	80	70
VIbias_PH	100	105	100	100	100	100

ROC0 NOISE			MEAN = 4.579725 SIGMA = 0.352633

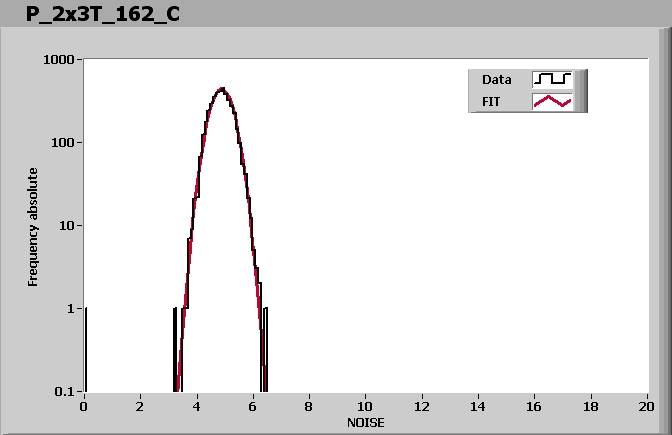

ROC1 NOISE			MEAN = 4.879852 SIGMA = 0.379448

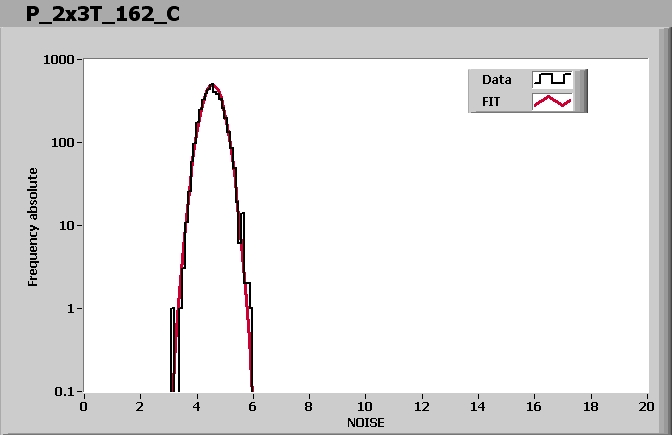

ROC2 NOISE			MEAN = 4.554677 SIGMA = 0.345104

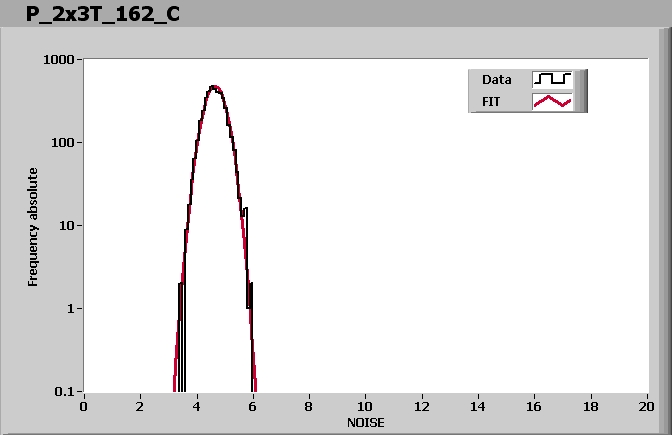

ROC3 NOISE			MEAN = 4.641517 SIGMA = 0.353752
ROC4 NOISE			MEAN = 4.138979 SIGMA = 0.324969

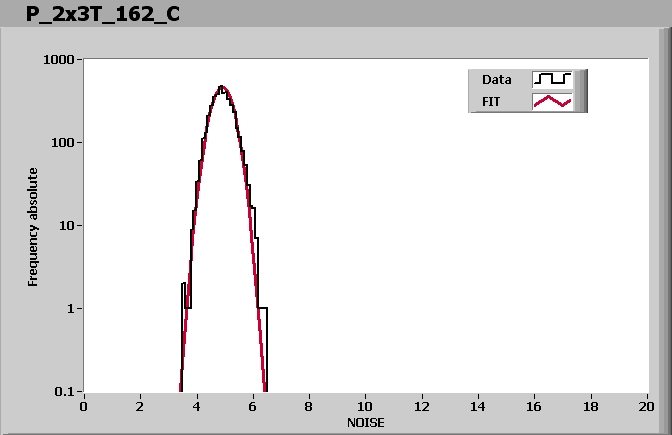

ROC5 NOISE			MEAN = 4.901186 SIGMA = 0.362301

Comment (if any): good, but look @ ROC3

This Device have been tested 0Times prior to this one and here are the links to the previous tests:

End testing time: 4:39 PM

Ibias_DAC, Ibias_DAC Data	142	144	134	146	146	134
Vana, VanaData	125	144	127	139	133	122
CalDelData and plots	79	77	72	73	78	73
VthrCompData and plots	74	76	74	85	79	75
TestDdata ,TestD Plots	6	2	2	0	1	0
LightData ,Light Plots	0	1	3	0	1	0
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
