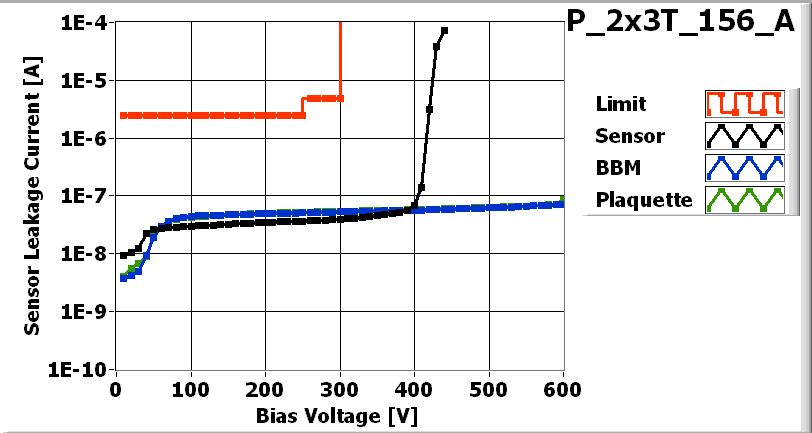

![[IMAGE] of](P_2x3T_156_A_IV.jpg)
| IV_XML-File |
| Maximum Voltage 600 V |
![[IMAGE] of](P_2x3T_156_A_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 44 V |
| Operational Voltage 84 V |
Parts committed by Bolla Gino on date 1/18/2007
| Part | ID |
|---|---|
| BBM | BBM_156-2x3T |
| VHDI | 2x3_391 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W28_X54K5TT | 74D |
| ROC1 | W28_X54K5TT | 74C |
| ROC2 | W28_X54K5TT | 74B |
| ROC3 | W28_X54K5TT | 40B |
| ROC4 | W28_X54K5TT | 40D |
| ROC5 | W28_X54K5TT | 41B |
Inspected by Lockwood Gale on date 1/25/2007
| LR_dev | 0.043 |
| LL_dev | 0.053 |
| FINAL COMMENT by Lockwood Gale | No assembly problems. No wirebonding problems. |
PLAQUETTE made READY for testing on 1/25/2007 by Lockwood Gale
P_2x3T_156_Aon 1/25/2007 3:41 PM
P_2x3T_156_Aon 1/25/2007 3:41 PM
PLAQUETTE TESTED on 2007-01-25 by Isaac Childres
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | |
| Ibias_DAC | 138 | 158 | 136 | 142 | 122 | 144 | |
| Vana | 130 | 150 | 141 | 121 | 118 | 134 | |
| Cal_Del | 81 | 67 | 72 | 78 | 87 | 68 | |
| Vthrs_Comp | 70 | 88 | 81 | 71 | 62 | 85 | |
| Unbumped | 0 | 0 | 0 | 0 | 0 | 0 | |
| Dead | 0 | 0 | 0 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 0 | 0 | 0 | 0 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

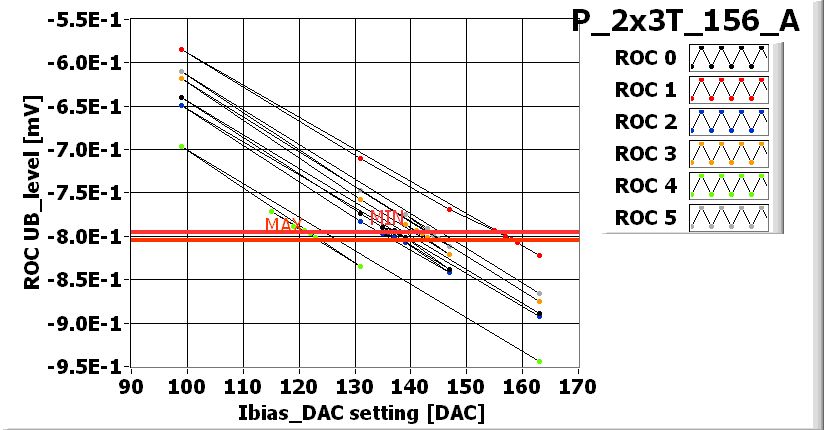

![[IMAGE] of](P_2x3T_156_A_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

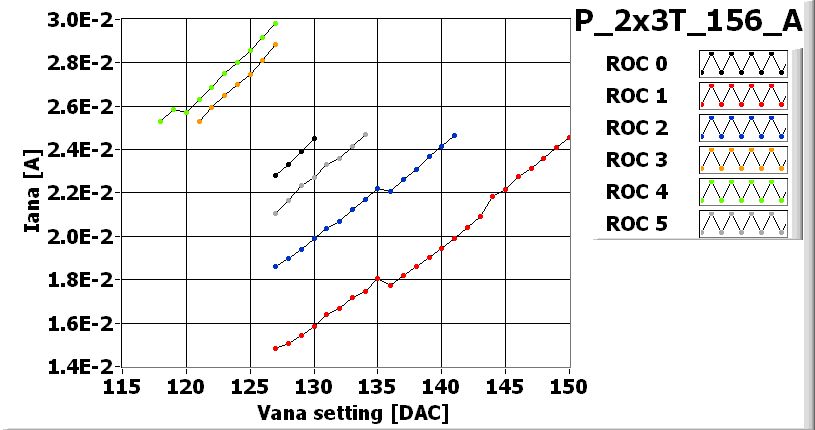

![[IMAGE] of](P_2x3T_156_A_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_2x3T_156_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x3T_156_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x3T_156_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x3T_156_Ano-bump-light.jpg) |
LIGHT_XML-File |

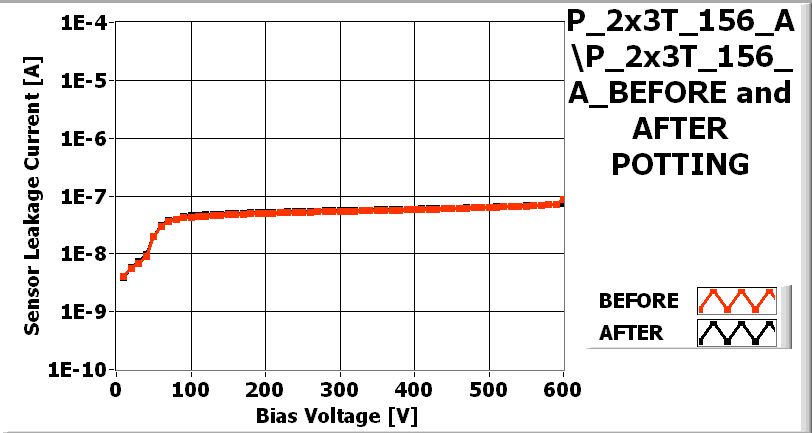

PLAQUETTE READY TO BE POTTED
