P_2x3T_140

P_2x3T_140_C

Production testing

Date:6/8/2007

Operator: Emily Grace

start testing time:10:12 AM

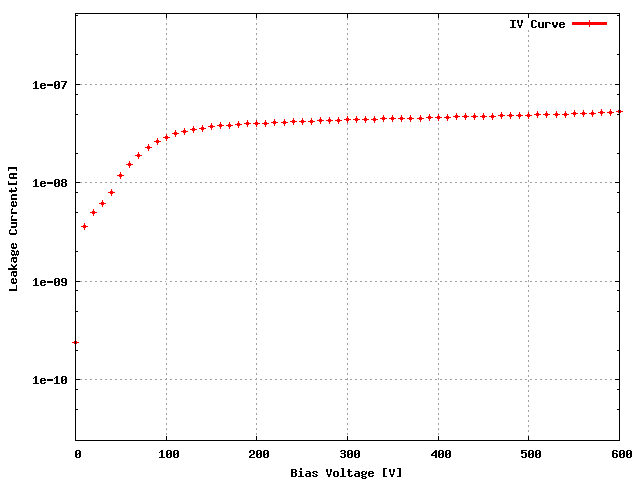

Sensor: S_2x3T_14, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC ROC wafer Label

ROC0 DULQEDT 74B

ROC1 DULQEDT 05D

ROC2 DULQEDT 37C

ROC3 DULQEDT 74D

ROC4 DULQEDT 37A

ROC5 DULQEDT 16A

ROC	ROC wafer	Label
ROC0	DULQEDT	74B
ROC1	DULQEDT	05D
ROC2	DULQEDT	37C
ROC3	DULQEDT	74D
ROC4	DULQEDT	37A
ROC5	DULQEDT	16A

Depletion Voltage is -44 and suggested operational voltage is -84

Ibias_DAC, Ibias_DAC Data 174 144 170 164 154 152

Vana, VanaData 146 133 143 159 146 140

CalDelData and plots 68 100 85 68 87 99

VthrCompData and plots 94 76 85 92 87 75

TestDdata ,TestD Plots 2 84 1 1 0 2

LightData ,Light Plots 3 104 1 1 0 2

Pass/Fail TestD GOOD BAD GOOD GOOD GOOD GOOD

Pass/Fail LIGHT GOOD BAD GOOD GOOD GOOD GOOD

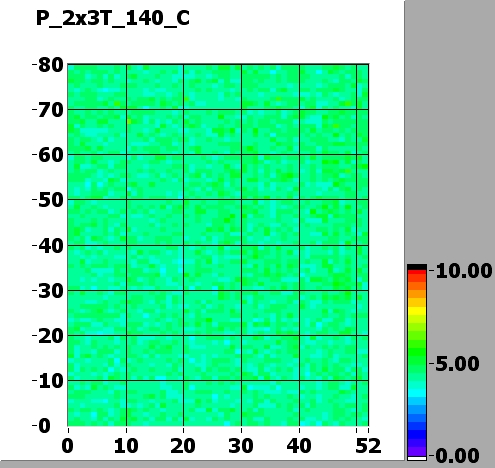

Noise MAP at VMAX

Efficiency MAP

EXTRA DACs for NOISE

VHldDe	105	105	100	105	90	85
Vsf	145	140	145	155	150	145
VoffsetOp	115	90	115	105	105	105
VIbias_PH	100	95	95	100	100	105

ROC0 NOISE			MEAN = 3.554978 SIGMA = 0.272149
ROC1 NOISE			MEAN = 4.327671 SIGMA = 0.341589
ROC2 NOISE			MEAN = 3.539737 SIGMA = 0.272167

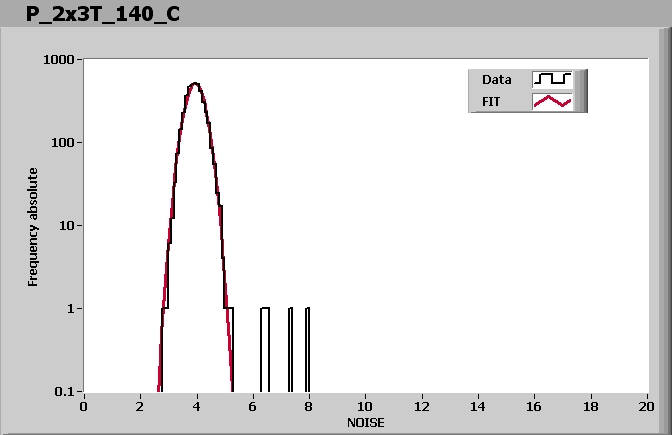

ROC3 NOISE			MEAN = 3.939194 SIGMA = 0.319282

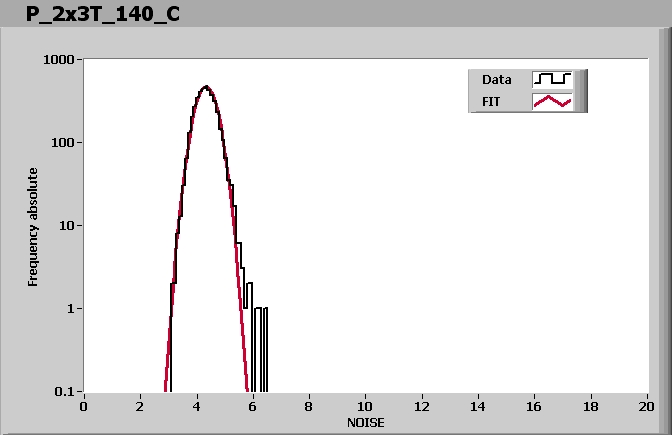

ROC4 NOISE			MEAN = 4.323560 SIGMA = 0.352295

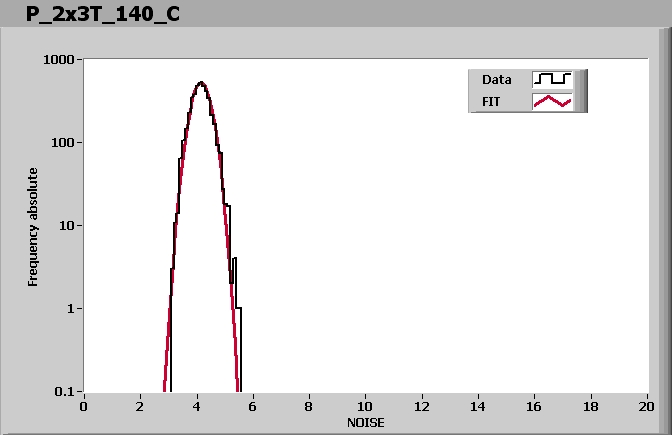

ROC5 NOISE			MEAN = 4.149093 SIGMA = 0.314923

Comment (if any):

This Device have been tested 0Times prior to this one and here are the links to the previous tests:

End testing time: 10:37 AM
