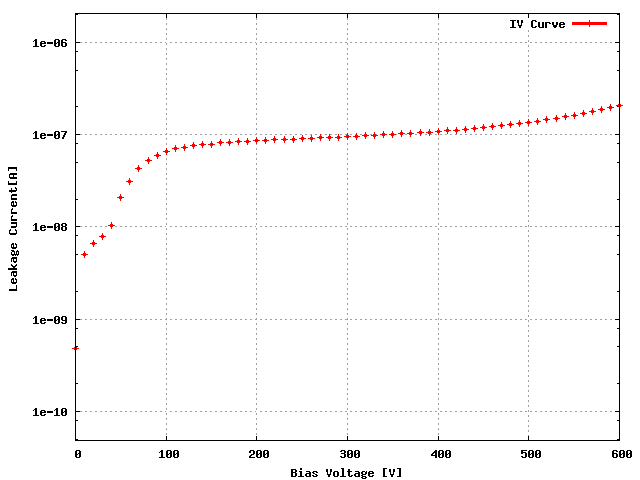

Sensor: S_2x3T_12, Data for leakage current measurement , and plot on overall it is a GOOD sensor
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W19_XN4K38T | 61C |
| ROC1 | W19_XN4K38T | 61A |
| ROC2 | W19_XN4K38T | 76D |
| ROC3 | W19_XN4K38T | 16B |
| ROC4 | W19_XN4K38T | 21B |
| ROC5 | W19_XN4K38T | 21D |
| Ibias_DAC, Ibias_DAC Data | 138 | 142 | 140 | 144 | 132 | 140 |
| Vana, VanaData | 140 | 132 | 129 | 127 | 138 | 114 |
| CalDelData and plots | 79 | 77 | 75 | 73 | 89 | 98 |
| VthrCompData and plots | 79 | 82 | 70 | 78 | 72 | 79 | Depletion Voltage is -44 and suggested operational voltage is -84
| TestDdata ,TestD Plots | 0 | 1 | 0 | 0 | 0 | 0 |
| LightData ,Light Plots | 0 | 0 | 0 | 0 | 0 | 0 |
| Pass/Fail TestD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD |
| Pass/Fail LIGHT | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD |
Comment (if any): good
This Device have been tested 2Times prior to this one and here are the links to the previous tests:End testing time: 4:16 PM
