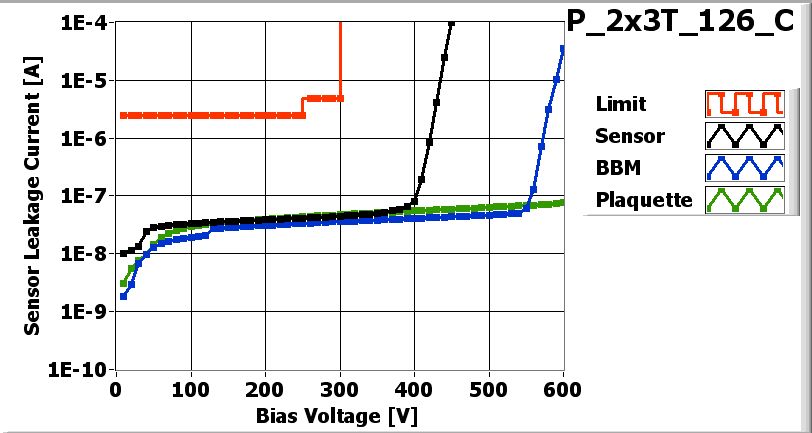

| IV_XML-File |
| Maximum Voltage 600 V |
![[IMAGE] of](P_2x3T_126_C_LASER.jpg)

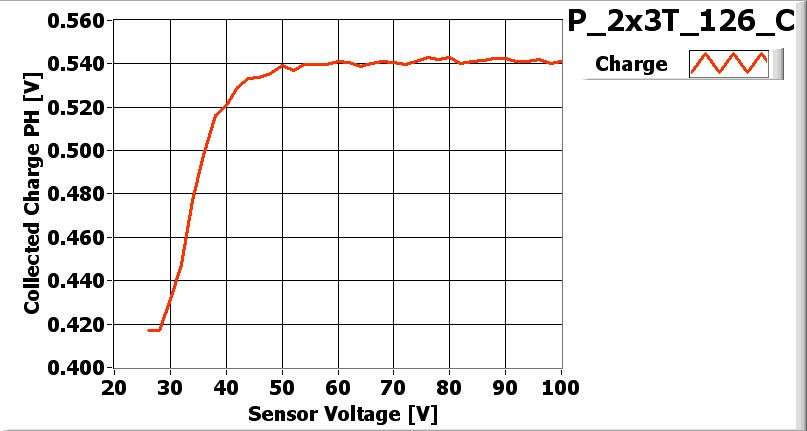

| LASER_XML-File |
| Depletion Voltage 44 V |
| Operational Voltage 84 V |
Parts committed by Bolla Gino on date 5/22/2007
| Part | ID |
|---|---|
| BBM | BBM_126-2x3T |
| VHDI | 2x3_636 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | KMNG2DT | 57A |
| ROC1 | KMNG2DT | 47D |
| ROC2 | KMNG2DT | 76C |
| ROC3 | KMNG2DT | 66B |
| ROC4 | KMNG2DT | 66C |
| ROC5 | KMNG2DT | 56C |
Inspected by Lockwood Gale on date 5/30/2007
| LR_dev | 0.053 |
| LL_dev | 0.052 |
PLAQUETTE GLUED with HALF PRESSURE
| FINAL COMMENT by Lockwood Gale | Assembled at HALF-PRESSURE. No assembly problems. No wirebonding problems, ROC 2, Ch 34,35 |
PLAQUETTE made READY for ENCAPSULATION on 5/30/2007 by Lockwood Gale
PLAQUETTE encapsulated on 5/30/2007 by Perera Rajiv
PLAQUETTE made READY for testing on 5/30/2007 by Perera Rajiv
P_2x3T_126_Con 5/31/2007 2:23 PM
P_2x3T_126_Con 5/31/2007 2:23 PM
PLAQUETTE TESTED on 2007-05-31 by Gino Bolla
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | |
| Ibias_DAC | 156 | 162 | 150 | 160 | 144 | 144 | |
| Vana | 134 | 134 | 138 | 140 | 114 | 142 | |
| Cal_Del | 71 | 68 | 95 | 68 | 83 | 78 | |
| Vthrs_Comp | 88 | 84 | 78 | 87 | 83 | 79 | |
| Unbumped | 0 | 0 | 2 | 0 | 0 | 1 | |
| Dead | 0 | 0 | 0 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 0 | 2 | 0 | 0 | 1 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |
![[IMAGE] of](P_2x3T_126_C_Ibias-dac.jpg) |

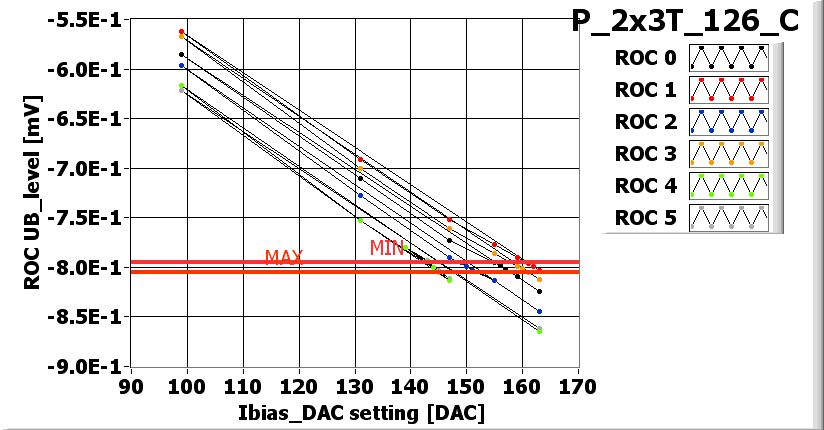

I_BIAS_DAC_XML-File |
![[IMAGE] of](P_2x3T_126_C_Vana.jpg) |

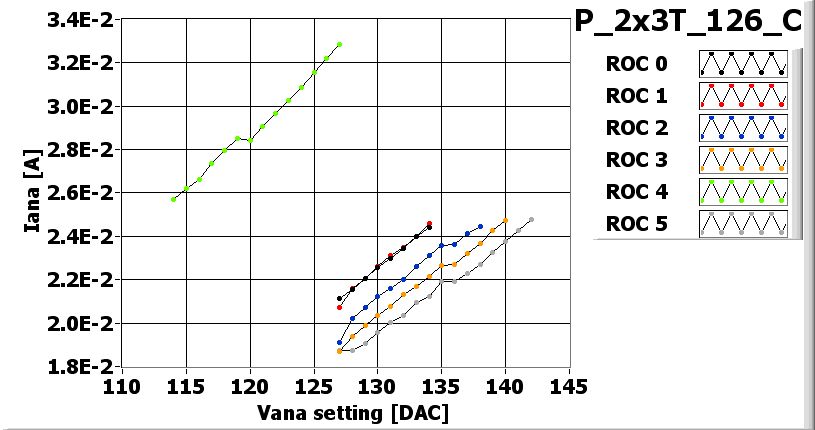

VANA_XML-File |
![[IMAGE] of](P_2x3T_126_CDead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x3T_126_CNoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x3T_126_CUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x3T_126_Cno-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 125 | 110 | 90 | 95 | 180 | 90 |
| Vsf | 140 | 140 | 140 | 140 | 140 | 145 |
| VoffsetOp | 85 | 90 | 75 | 90 | 80 | 85 |
| VIbias_PH | 100 | 105 | 105 | 105 | 100 | 105 |
Noise MAP at VMAX
![[IMAGE] of](P_2x3T_126_C-580-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_2x3T_126_C-580-efficiency.jpg)
Noise MAP at -200 V

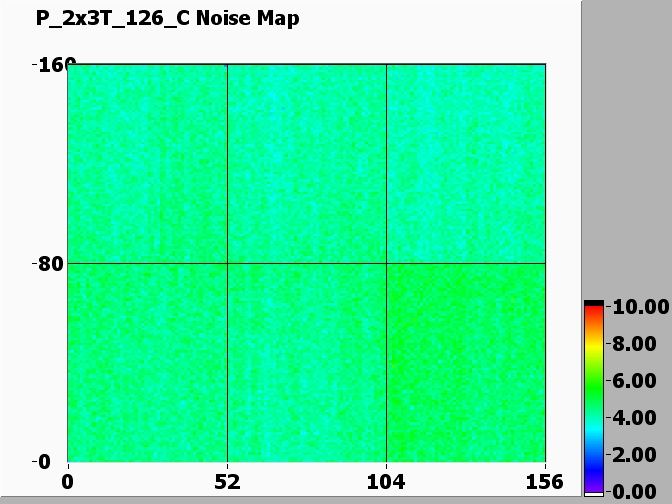

![[IMAGE] of](P_2x3T_126_C-200-noise.jpg)
Efficiency MAP

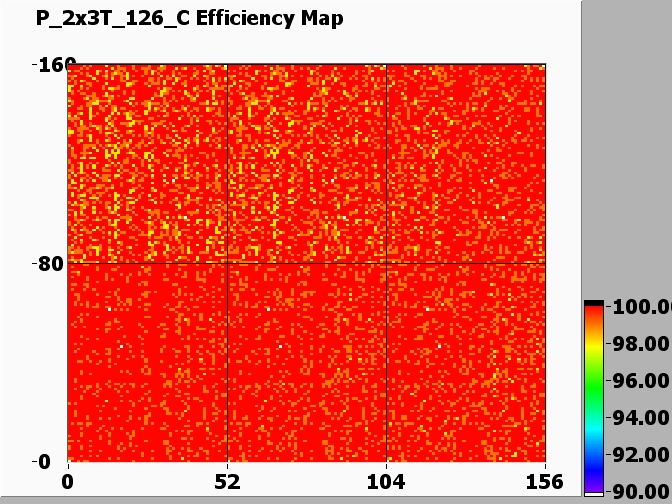

![[IMAGE] of](P_2x3T_126_C-200-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
