![[IMAGE] of](P_2x3T_125_C_IV.jpg)

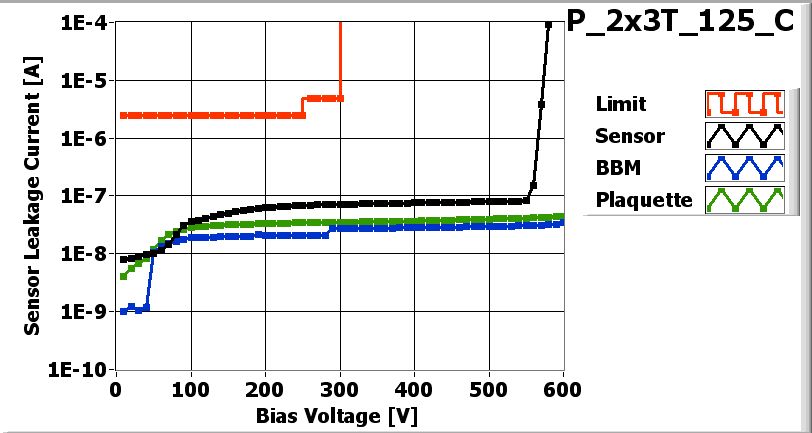

| IV_XML-File |
| Maximum Voltage 600 V |
![[IMAGE] of](P_2x3T_125_C_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 46 V |
| Operational Voltage 86 V |
Parts committed by Bolla Gino on date 5/22/2007
| Part | ID |
|---|---|
| BBM | BBM_125-2x3T |
| VHDI | 2x3_635 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | KMNG2DT | 24D |
| ROC1 | KMNG2DT | 54D |
| ROC2 | KMNG2DT | 04D |
| ROC3 | KMNG2DT | 64C |
| ROC4 | KMNG2DT | 64D |
| ROC5 | KMNG2DT | 04A |
Inspected by Arndt Kirk on date 6/13/2007
| LR_dev | 0.018 |
| LL_dev | 0.020 |
PLAQUETTE GLUED with HALF PRESSURE
| FINAL COMMENT by Arndt Kirk | Assembled at HALF-PRESSURE. No assembly problems. ROC0 chn 2; ROC4 chn 24 multiple bond attenpts. All wires OK. |
PLAQUETTE made READY for ENCAPSULATION on 6/13/2007 by Arndt Kirk
PLAQUETTE encapsulated on 6/13/2007 by Arndt Kirk
PLAQUETTE made READY for testing on 6/13/2007 by Arndt Kirk
P_2x3T_125_Con 6/14/2007 9:12 AM
P_2x3T_125_Con 6/14/2007 9:12 AM
PLAQUETTE TESTED on 2007-06-14 by Emily Grace
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | |
| Ibias_DAC | 152 | 150 | 154 | 156 | 148 | 154 | |
| Vana | 144 | 143 | 140 | 131 | 129 | 139 | |
| Cal_Del | 76 | 79 | 70 | 86 | 84 | 66 | |
| Vthrs_Comp | 82 | 87 | 86 | 73 | 81 | 81 | |
| Unbumped | 0 | 0 | 1 | 0 | 0 | 1 | |
| Dead | 0 | 0 | 0 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 0 | 1 | 0 | 0 | 1 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |
![[IMAGE] of](P_2x3T_125_C_Ibias-dac.jpg) |

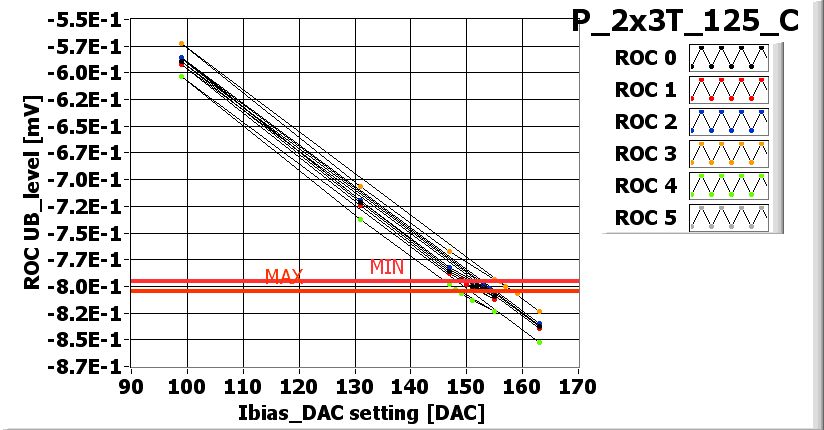

I_BIAS_DAC_XML-File |
![[IMAGE] of](P_2x3T_125_C_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_2x3T_125_CDead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x3T_125_CNoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x3T_125_CUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x3T_125_Cno-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 90 | 105 | 95 | 120 | 130 | 105 |
| Vsf | 145 | 145 | 145 | 140 | 140 | 140 |
| VoffsetOp | 85 | 100 | 85 | 70 | 75 | 90 |
| VIbias_PH | 95 | 95 | 95 | 100 | 100 | 100 |
Noise MAP at VMAX
![[IMAGE] of](P_2x3T_125_C-580-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_2x3T_125_C-580-efficiency.jpg)
Noise MAP at -200 V
![[IMAGE] of](P_2x3T_125_C-200-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_2x3T_125_C-200-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
