P_2x3T_124

P_2x3T_124_A

Production testing

Date:3/5/2007

Operator: Joseph Clampitt

start testing time:12:03 PM

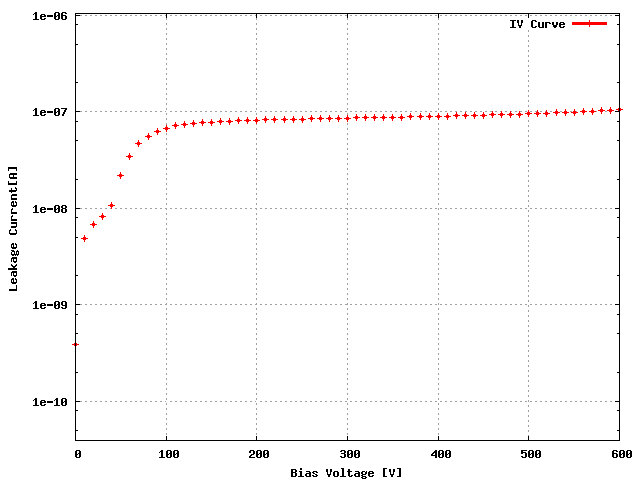

Sensor: S_2x3T_12, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC ROC wafer Label

ROC0 W35_XH4K3HT 75B

ROC1 W35_XH4K3HT 75A

ROC2 W35_XH4K3HT 74D

ROC3 W36_XD4K3LT 22A

ROC4 W36_XD4K3LT 22D

ROC5 W36_XD4K3LT 23A

ROC	ROC wafer	Label
ROC0	W35_XH4K3HT	75B
ROC1	W35_XH4K3HT	75A
ROC2	W35_XH4K3HT	74D
ROC3	W36_XD4K3LT	22A
ROC4	W36_XD4K3LT	22D
ROC5	W36_XD4K3LT	23A

Depletion Voltage is -46 and suggested operational voltage is -86

Ibias_DAC, Ibias_DAC Data 140 138 130 138 144 144

Vana, VanaData 127 131 133 127 135 134

CalDelData and plots 85 73 91 78 72 94

VthrCompData and plots 68 76 69 75 86 76

TestDdata ,TestD Plots 1 0 0 0 0 1

LightData ,Light Plots 0 0 0 1 0 0

Pass/Fail TestD GOOD GOOD GOOD GOOD GOOD GOOD

Pass/Fail LIGHT GOOD GOOD GOOD GOOD GOOD GOOD

Noise MAP

Efficiency MAP

EXTRA DACs for NOISE

VHldDe	115	120	115	130	140	100
Vsf	135	135	140	135	135	140
VoffsetOp	75	75	85	80	75	75
VIbias_PH	105	100	100	100	100	100

ROC0 NOISE			MEAN = 4.942824 SIGMA = 0.378045
ROC1 NOISE			MEAN = 4.620343 SIGMA = 0.349251
ROC2 NOISE			MEAN = 4.841745 SIGMA = 0.377068

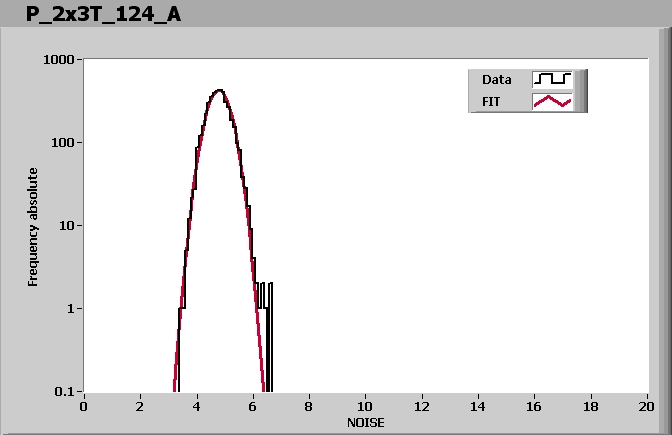

ROC3 NOISE			MEAN = 4.775687 SIGMA = 0.386729
ROC4 NOISE			MEAN = 4.936997 SIGMA = 0.403747

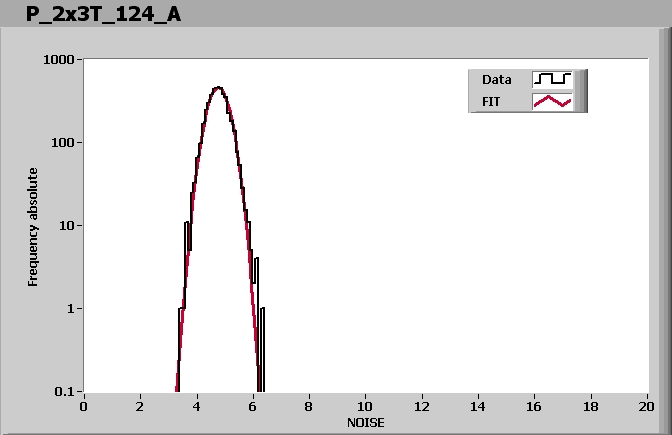

ROC5 NOISE			MEAN = 4.760468 SIGMA = 0.358175

Comment (if any): Good

This Device have been tested 0Times prior to this one and here are the links to the previous tests:

End testing time: 12:22 PM

Ibias_DAC, Ibias_DAC Data	140	138	130	138	144	144
Vana, VanaData	127	131	133	127	135	134
CalDelData and plots	85	73	91	78	72	94
VthrCompData and plots	68	76	69	75	86	76
TestDdata ,TestD Plots	1	0	0	0	0	1
LightData ,Light Plots	0	0	0	1	0	0
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
